3.1.7 Removing the CD mechanism assembly

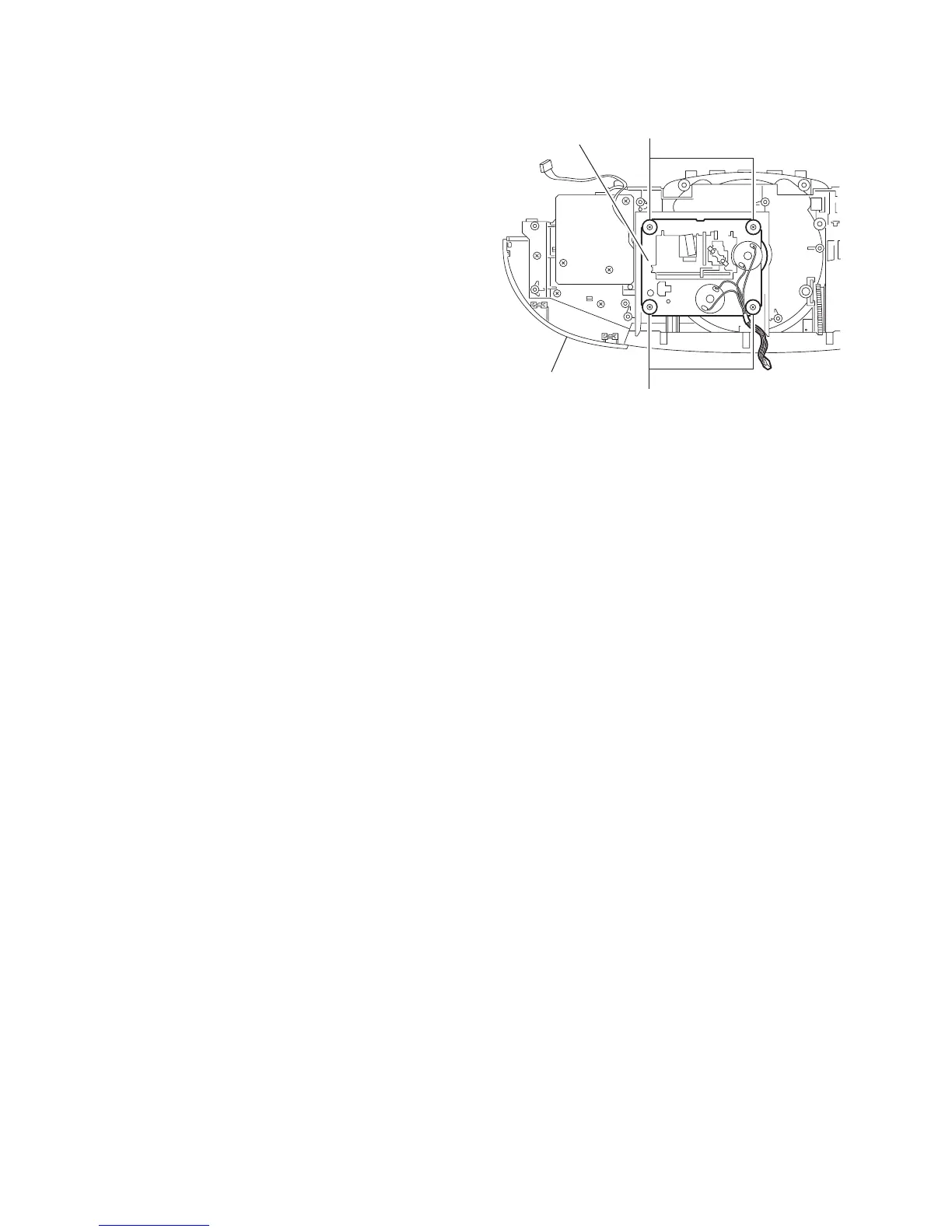

(See Fig.17)
• Prior to performing the following procedure, remove the main
board.
(1) Remove the four screws N attaching the CD mechanism
assembly.
Fig.17
N
N
CD mechanism
assembly
Top cover assembly
