JVC RC-W410 Service Manual

RC-W410 B/E/G/GI/V/VX

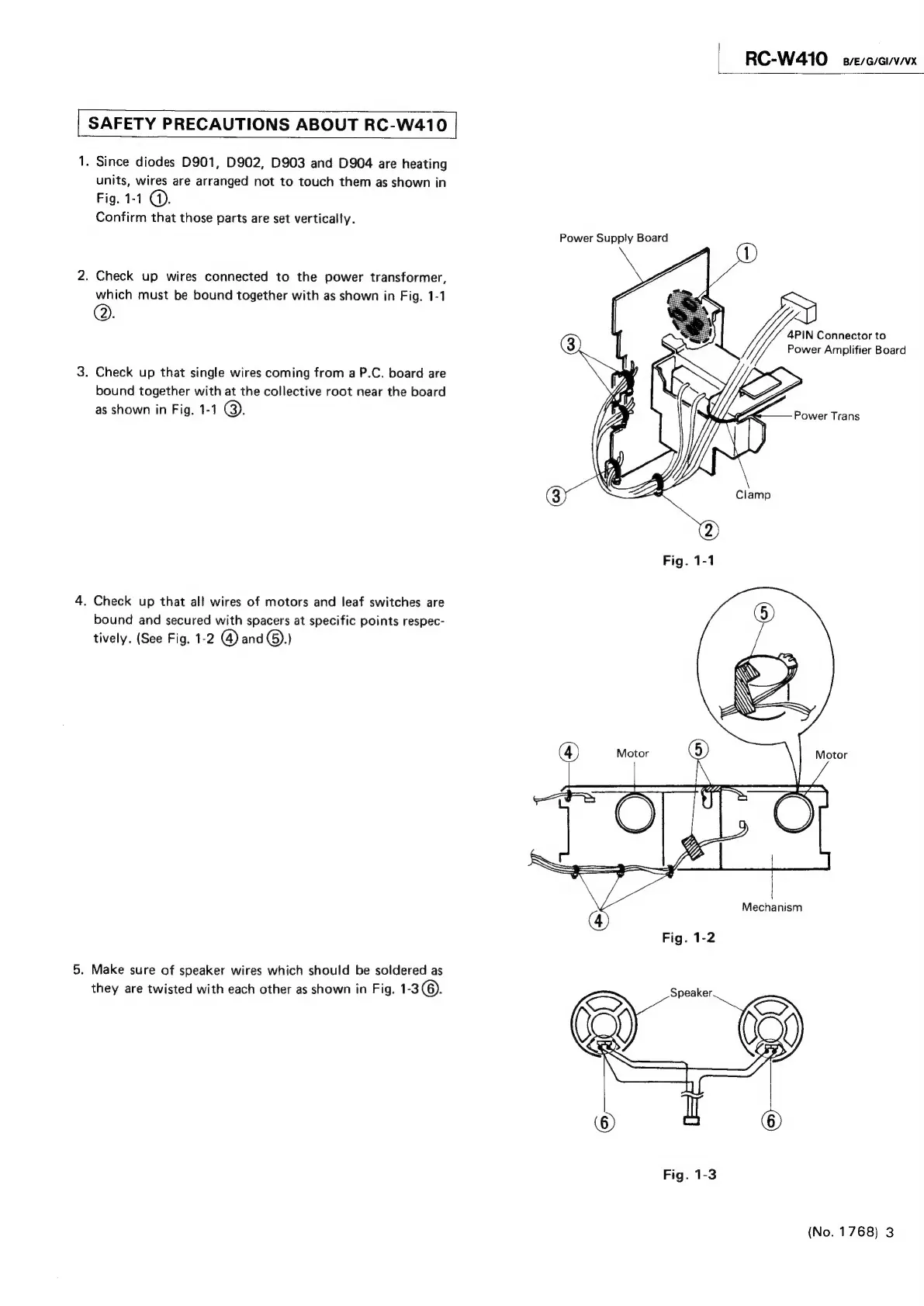

| SAFETY PRECAUTIONS ABOUT RC-W410 |
1. Since diodes D901, D902, D903 and D904 are heating
units, wires are arranged not to touch them as shown in
Fig. 1-1 ©.
Confirm that those parts are set vertically.
Power Supply Board
2. Check up wires connected to the power transformer,
which must be bound together with as shown in Fig. 1-1
O.
4PIN Connector to
Power Amplifier Board
3. Check up that single wires coming from a P.C. board are
bound together with at the collective root near the board
as shown in Fig, 1-1 Q).
Power Trans
4. Check up that all wires of motors and leaf switches are
bound and secured with spacers at specific points respec-
tively. (See Fig. 1-2 @ and ©)
Mechanism
Fig. 1-2
5. Make sure of speaker wires which should be soldered as
they are twisted with each other as shown in Fig. 1-3 ©. Speaker
00
(ey
6 FT 6
Fig. 1-3
(No. 1768) 3
