JVC RC-W410 Service Manual

RC-W410 B/E/G/GI/V/VX |

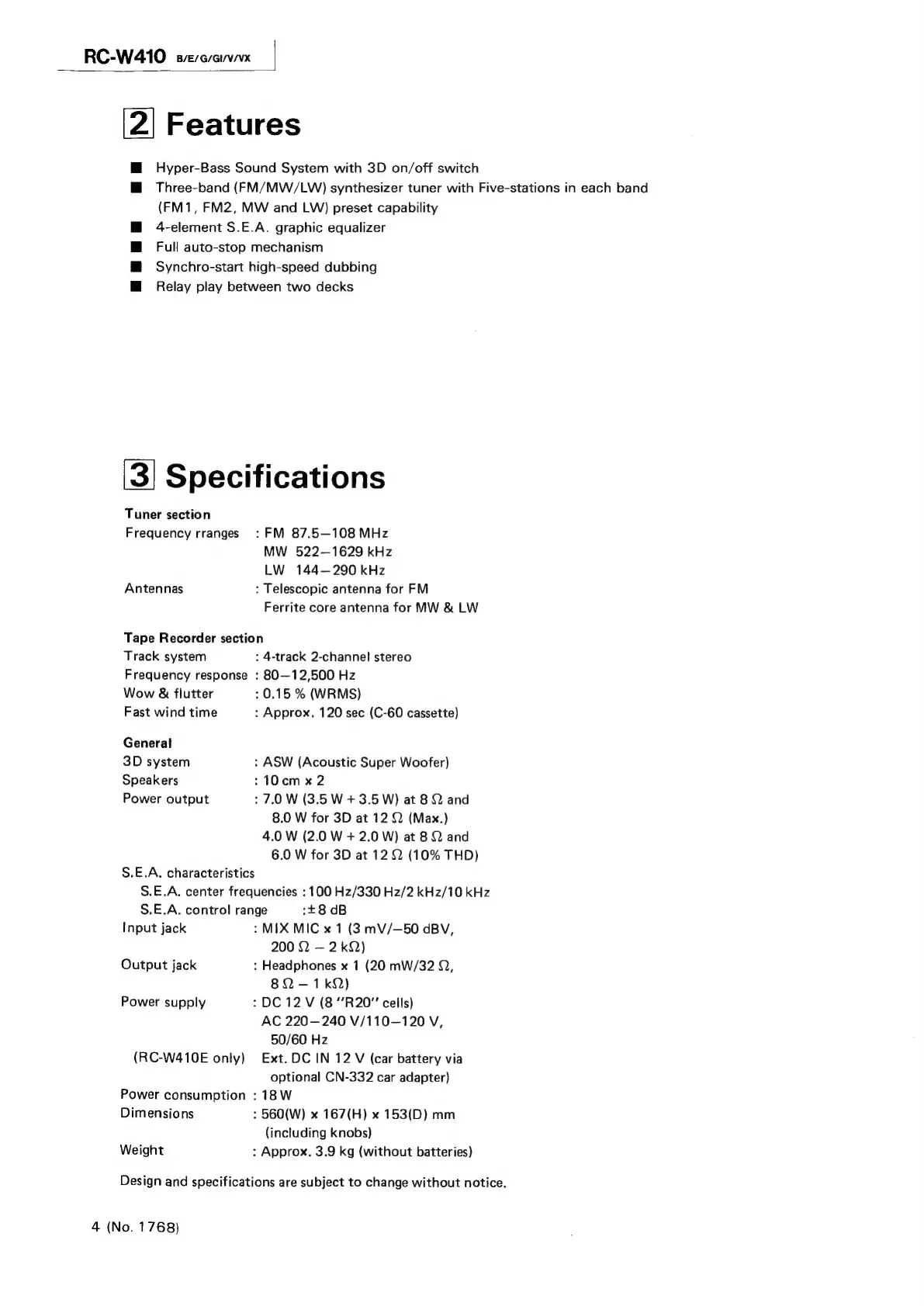

[2] Features
Hyper-Bass Sound System with 3D on/off switch
Three-band (FM/MW/LW) synthesizer tuner with Five-stations in each band
(FM1, FM2, MW and LW) preset capability
4-element S.E.A. graphic equalizer
Full auto-stop mechanism
Synchro-start high-speed dubbing
Relay play between two decks
'3] Specifications
Tuner section
Frequency rranges : FM 87.5—108 MHz
MW 522-1629 kHz
LW 144-290 kHz
Antennas : Telescopic antenna for FM
Ferrite core antenna for MW & LW
Tape Recorder section
Track system : 4-track 2-channel stereo
Frequency response : 80—12,500 Hz
Wow & flutter : 0.15 % (WRMS)
Fast wind time : Approx. 120 sec (C-60 cassette)
General
3D system : ASW (Acoustic Super Woofer)
Speakers : 10cm x 2
Power output : 7.0 W (3.5 W + 3.5 W) at 8 Q and
8.0 W for 3D at 12 22 (Max.)
4.0 W (2.0 W + 2.0 W) at 8 Q and
6.0 W for 3D at 12 2 (10% THD)
S.E.A. characteristics
S.E.A. center frequencies : 100 Hz/330 Hz/2 kHz/10 kHz
S.E.A. control range :£8 dB
Input jack : MIX MIC x 1 (3 mV/—50 dBV,
200 2 — 2 kQ)
Output jack : Headphones x 1 (20 mW/32 Q,
8Q—1kQ)
Power supply :DC 12 V (8 “R20” cells)
AC 220—240 V/110—120 V,
50/60 Hz
(RC-W410E only) Ext. DC IN 12 V (car battery via
optional CN-332 car adapter)
Power consumption : 18 W
Dimensions : 560(W) x 167(H) x 153(D) mm
(including knobs)
Weight : Approx. 3.9 kg (without batteries)
Design and specifications are subject to change without notice.
4 (No. 1768)

JVC RC-W410 Specifications

General

Brand	JVC
Model	RC-W410
Category	Cassette Player
Language	English
