1-8 (No.MB159)

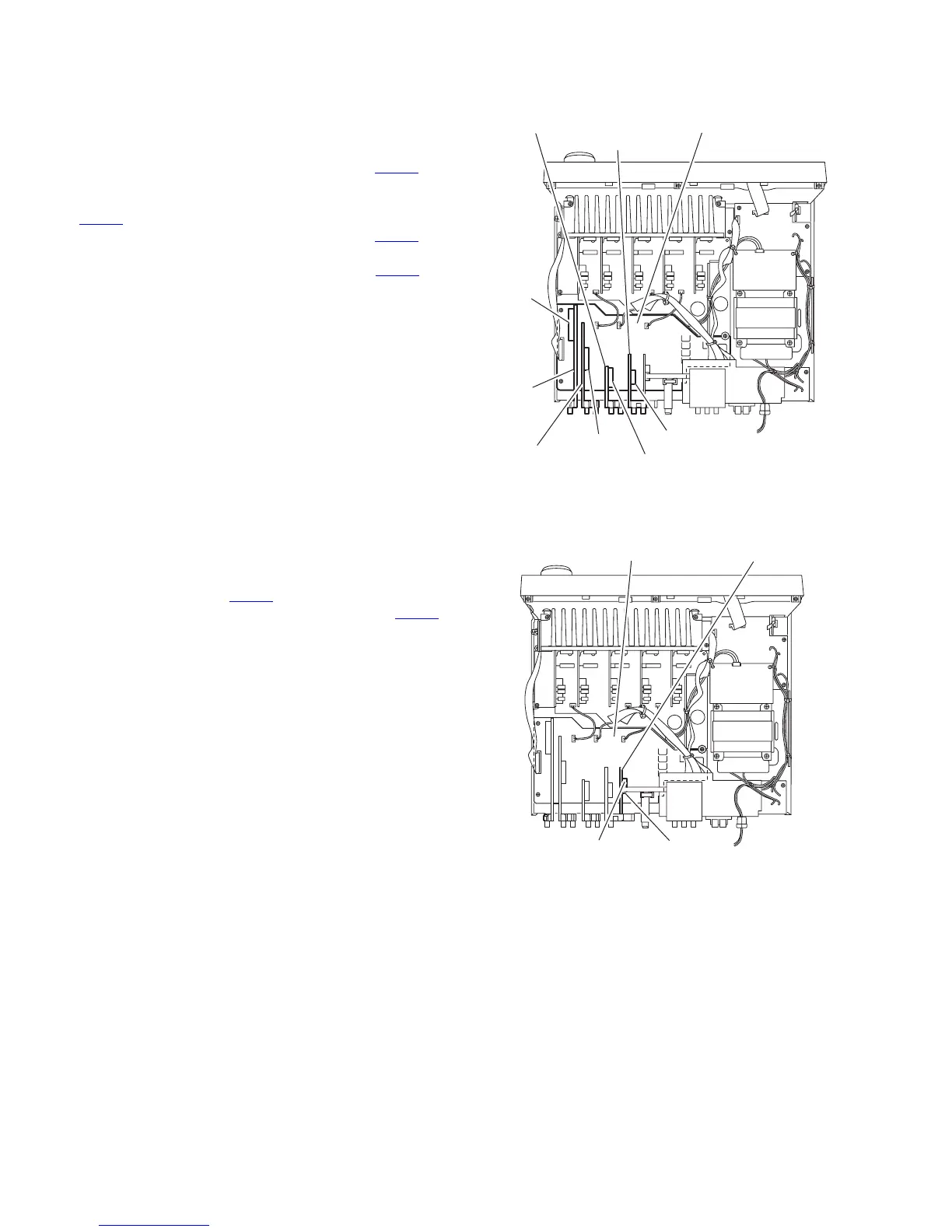

3.5 Removing the DSP board, audio input board, DVD board and video board
(See Fig.7)
Prior to performing the following procedure, remove the top
cover and rear panel.
(1) From the top side of the main body, Remove the tie band.
(2) Disconnect the DSP board from the connector CN481
on
the audio board.
(3) Disconnect the audio input board from the connector
CN421
on the audio board.
(4) Disconnect the DVD board from the connector CN431
on
the audio board.
(5) Disconnect the video board from the connector CN441
on
the audio board.
Fig.7
3.6 Removing the S-Video board
(See Fig.8)
Prior to performing the following procedure, remove the top
cover and rear panel.
(1) From the top side of the main body, disconnect the parallel
wire from the connector CN511
on the S-Video board.
(2) Disconnect the S-Video board from the connector CN461
on the audio board.
Fig.8
CN481
Audio boardDVD board
Video board
CN421
Audio
input
board
DSP
board
CN431
CN441
Audio board
CN511
S-Video board
CN461
