JVC RX-807VTN

RX-807VTN
Front Panel
ENH-204-1
ENA-095-1 pn Geer rereereraiets ENH-204-3
Ee RN, rl 4 ase a:
EE eg
ENB-155-5 eecceneeseeenne ENH-204-2

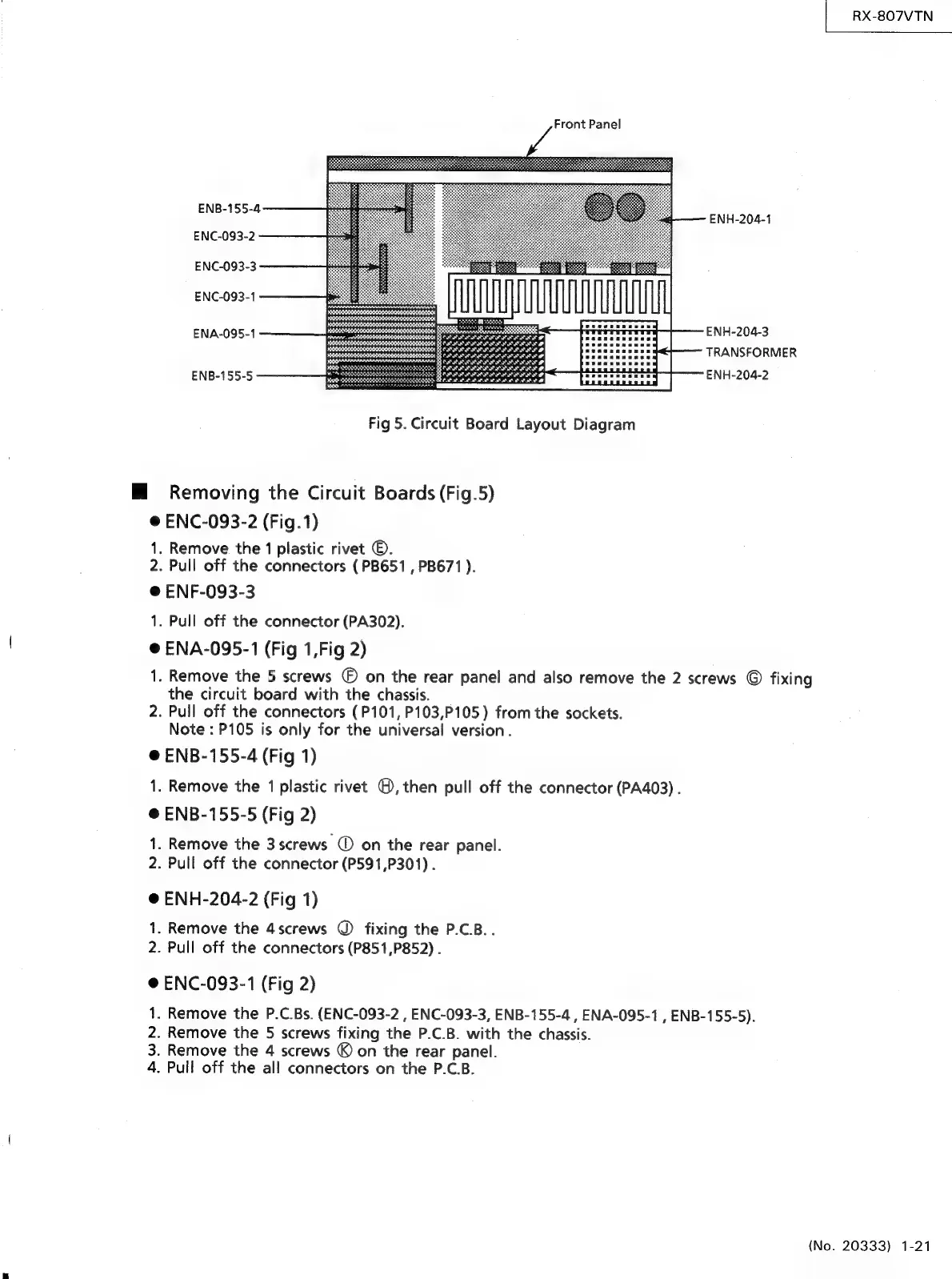

Fig 5. Circuit Board Layout Diagram
M Removing the Circuit Boards (Fig.5)
@ ENC-093-2 (Fig.1)
1. Remove the 1 plastic rivet ©.
2. Pull off the connectors ( PB651 , PB671 ).
@ ENF-093-3
1. Pull off the connector (PA302).
@® ENA-095-1 (Fig 1,Fig 2)
1.
Remove
the
5
screws
©
on
the
rear
panel
and
also
remove
the
2
screws
©
fixing
the circuit
board
with
the
chassis.
2. Pull off the connectors (P101,P103,P105) from the sockets.
Note : P105 is only for the universal version.
@ ENB-155-4 (Fig 1)
1. Remove the 1 plastic rivet @, then pull off the connector (PA403) .
@ ENB-155-5 (Fig 2)
1. Remove the 3screws © on the rear panel.
2. Pull off the connector (P591,P301) .
@ ENH-204-2 (Fig 1)
1. Remove the 4screws @ fixing the P.C.B..
2. Pull off the connectors (P851,P852) .
@ ENC-093-1 (Fig 2)
1.
Remove
the
P.C.Bs.
(ENC-093-2
,
ENC-093-3,
ENB-155-4
,
ENA-095-1
,
ENB-155-5).
2.
Remove
the
5
screws
fixing
the
P.C.B.
with
the
chassis.
3. Remove the 4 screws © on the rear panel.
4. Pull off the all connectors on the P.C.B.
(No. 20333) 1-21
