Basic Settings
TO BE CONTINUED TO THE NEXT PAGE

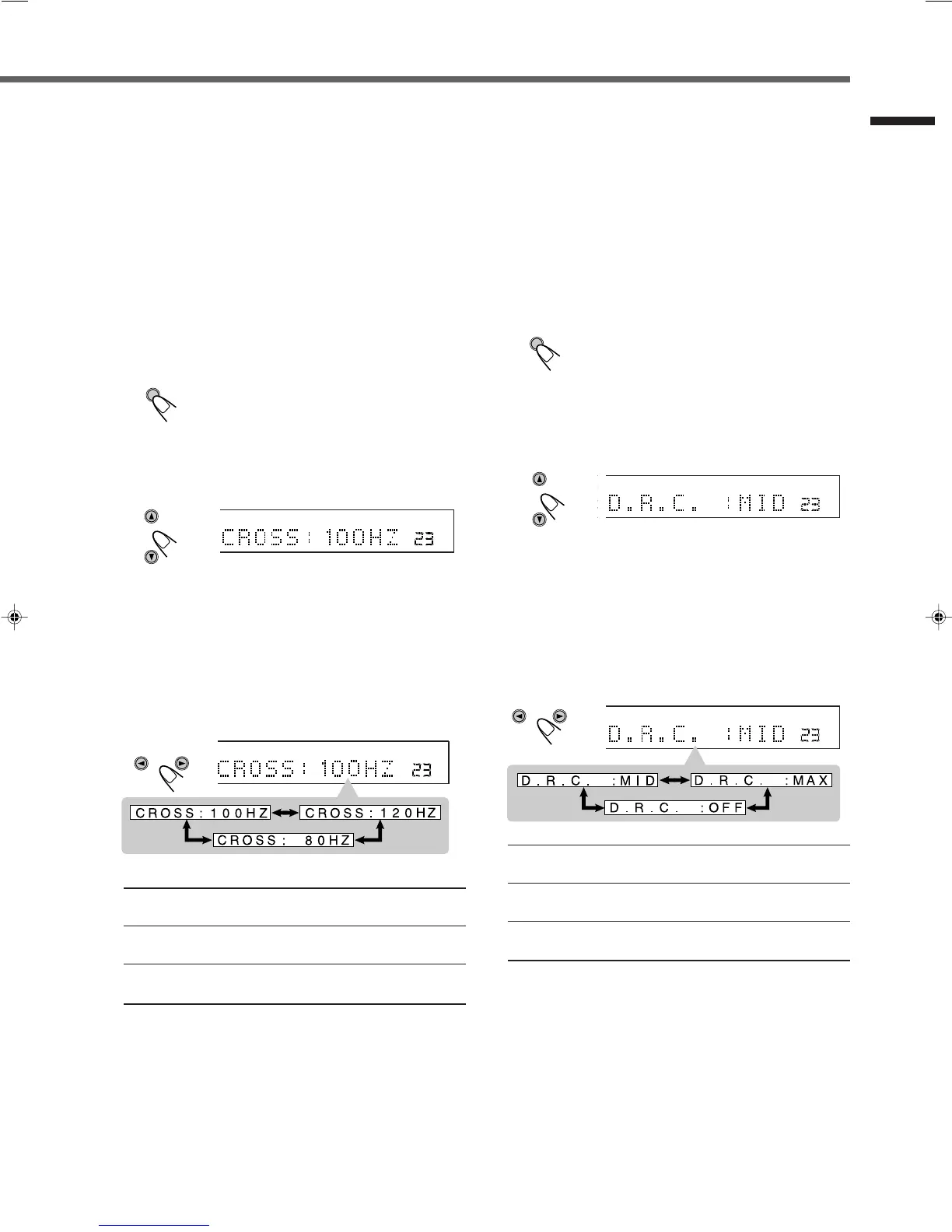

Crossover Frequency — CROSS
Small speakers cannot reproduce the bass sounds efficiently. If you
use a small speaker in any position, this unit automatically
reallocates the bass sound elements assigned to the small speaker to
the large speakers.
To use this function properly, set this crossover frequency level
according to the size of the small speaker connected.
• If you have selected “LRG (large)” for all speakers, this function
will not take effect.
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
1 Press SETTING.
The CONTROL buttons now work for basic
settings.
2 Press CONTROL ∞ (or 5) repeatedly until
“CROSS (Crossover)” (with the current setting)
*
appears on the display.
* “100HZ” is the initial setting. If you have already changed the
setting, another frequency will be shown.
3 Press CONTROL 3 (or 2) to select the crossover
frequency level.
• Each time you press the button, the crossover frequency level
changes as follows:
• Use the following criteria as reference when adjusting:
80HZ : Select this frequency when the cone speaker unit
built in the speaker is about 4
3
/4 inches (12 cm).
100HZ : Select this frequency when the cone speaker unit built
in the speaker is about 3
15
/16 inches (10 cm).
120HZ : Select this frequency when the cone speaker unit
built in the speaker is about 3
3
/16 inches (8 cm).
Dynamic Range Compression — D.R.C.
You can compress the dynamic range (difference between maximum
sound and minimum sound) of the reproduced sound. This is useful
when enjoying surround sound at night.
• This function takes effect only when playing back a source using
Dolby Digital.
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
1 Press SETTING.
The CONTROL buttons now work for basic
settings.
2 Press CONTROL∞ (or 5) repeatedly until
“D.R.C. (Dynamic Range Compression)” (with
the current setting)
* appears on the display.
* “MID” is the initial setting. If you have already changed the
setting, another setting will be shown.
3 Press CONTROL 3 (or 2) to select the
appropriate compression level.
• Each time you press the button, the compression level changes
as follows:
SETTING
CONTROL
IC
VOL
T
O
T
ANALOG
PRO LOGIC
SUBWFR LFE
VOL
DGTL AUTO
INPUT ATT
DSP
LCR
LS S RS
LPCM
DOLBY D
DTS
CONTROL
OFF : Select this when you want to enjoy surround with its
full dynamic range. (No effect applied.)
MID : Select this when you want to reduce the dynamic range
a little.
MAX : Select this when you want to apply the compression
effect fully. (Useful at night.)
SETTING
CONTROL
G
IC
VOL
U
TO
T
T
ANALOG
PRO LOGIC
SUBWFR LFE
VOL
DGTL AUTO
INPUT ATT
DSP
LCR
LS S RS
LPCM
DOLBY D
DTS
CONTROL
