Getting Started
FM Antenna (supplied)
If FM reception is poor, connect
outdoor FM antenna (not supplied).
If AM (MW/LW) reception is poor, connect single vinyl-covered wire (not supplied).
AM (MW/LW) Loop
Antenna (supplied)
Snap the tabs on the loop into
the slots of the base to
assemble the AM (MW/LW)
loop antenna.

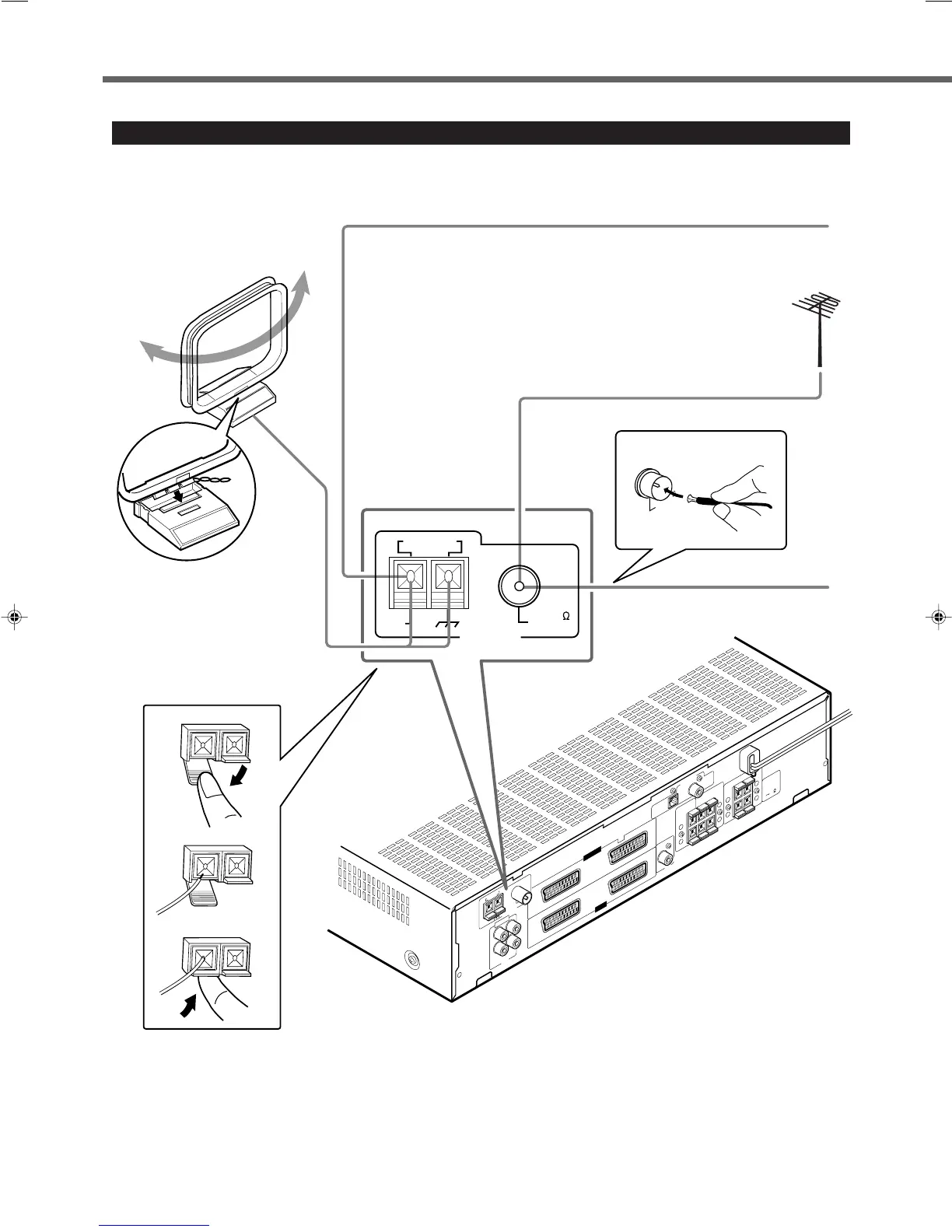

Connecting the FM and AM (MW/LW) Antennas
