SEA-E30B

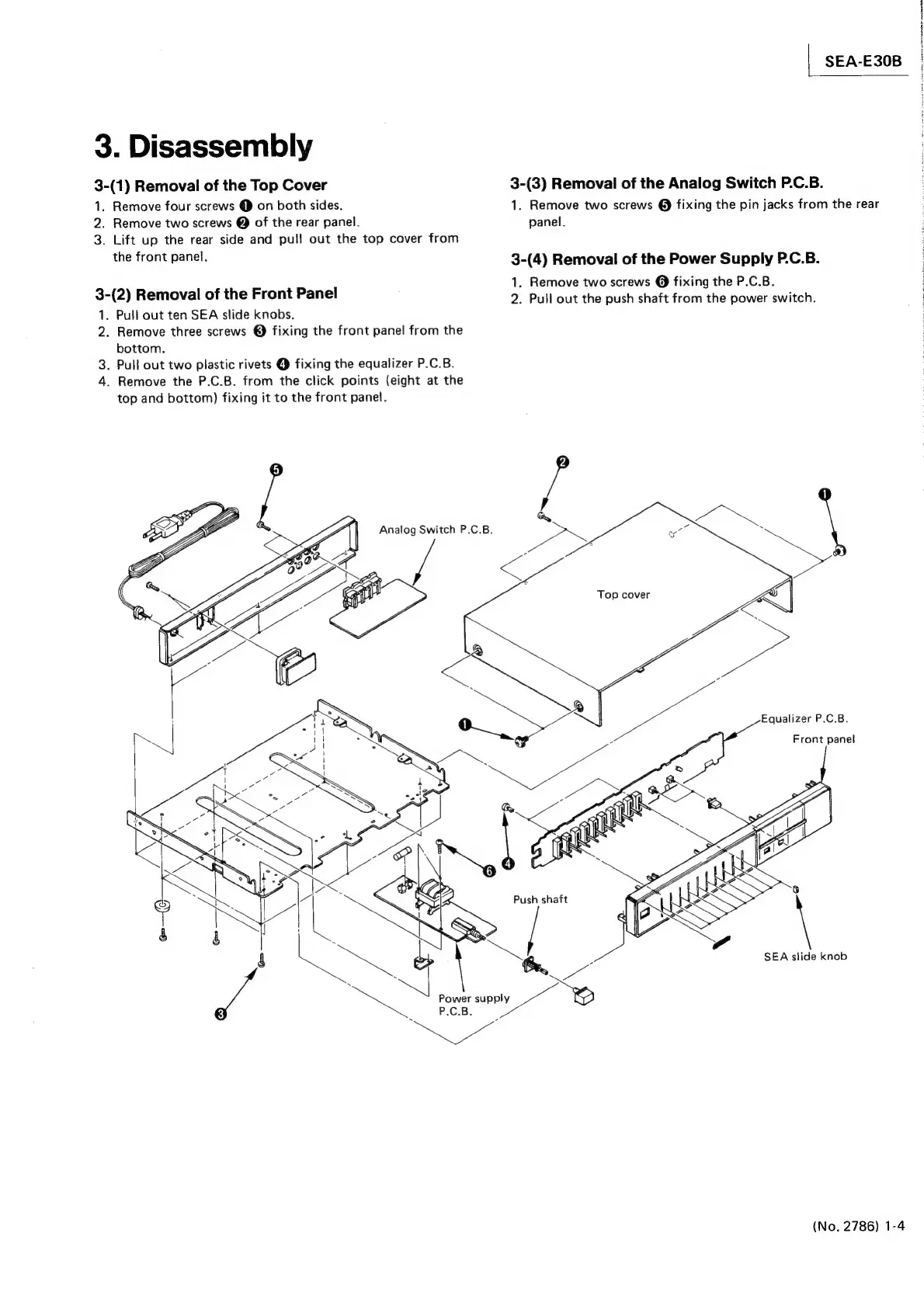

3. Disassembly
3-(1)
Removal
of
the
Top
Cover
3-(3)
Removal
of
the
Analog
Switch
P.C.B.
1.
Remove
four
screws
@
on
both
sides.
1.
Remove
two
screws
@
fixing
the
pin
jacks
from
the
rear
2.
Remove
two
screws
@ of
the rear
panel.
panel.
3.
Lift
up
the
rear
side and
pull
out
the top
cover
from
the
front
panel.
3-(4)
Removal
of the
Power
Supply P.C.B.
1. Remove two screws @ fixing the P.C.B.
3-(2) Removal of the Front Panel 2. Pull out the push shaft from the power switch.
1. Pull out ten SEA slide knobs.
2. Remove three screws @ fixing the front panel from the
bottom.
3. Pull out two plastic rivets @ fixing the equalizer P.C.B.
4. Remove the P.C.B. from the click points (eight at the
top and bottom) fixing it to the front panel.
Top cover
Equalizer P.C.B.
Front panel
Push shaft
a
Bx, -
ye Se een a
“Pe ee
SEA slide knob
(No. 2786) 1-4
