9
Preparation

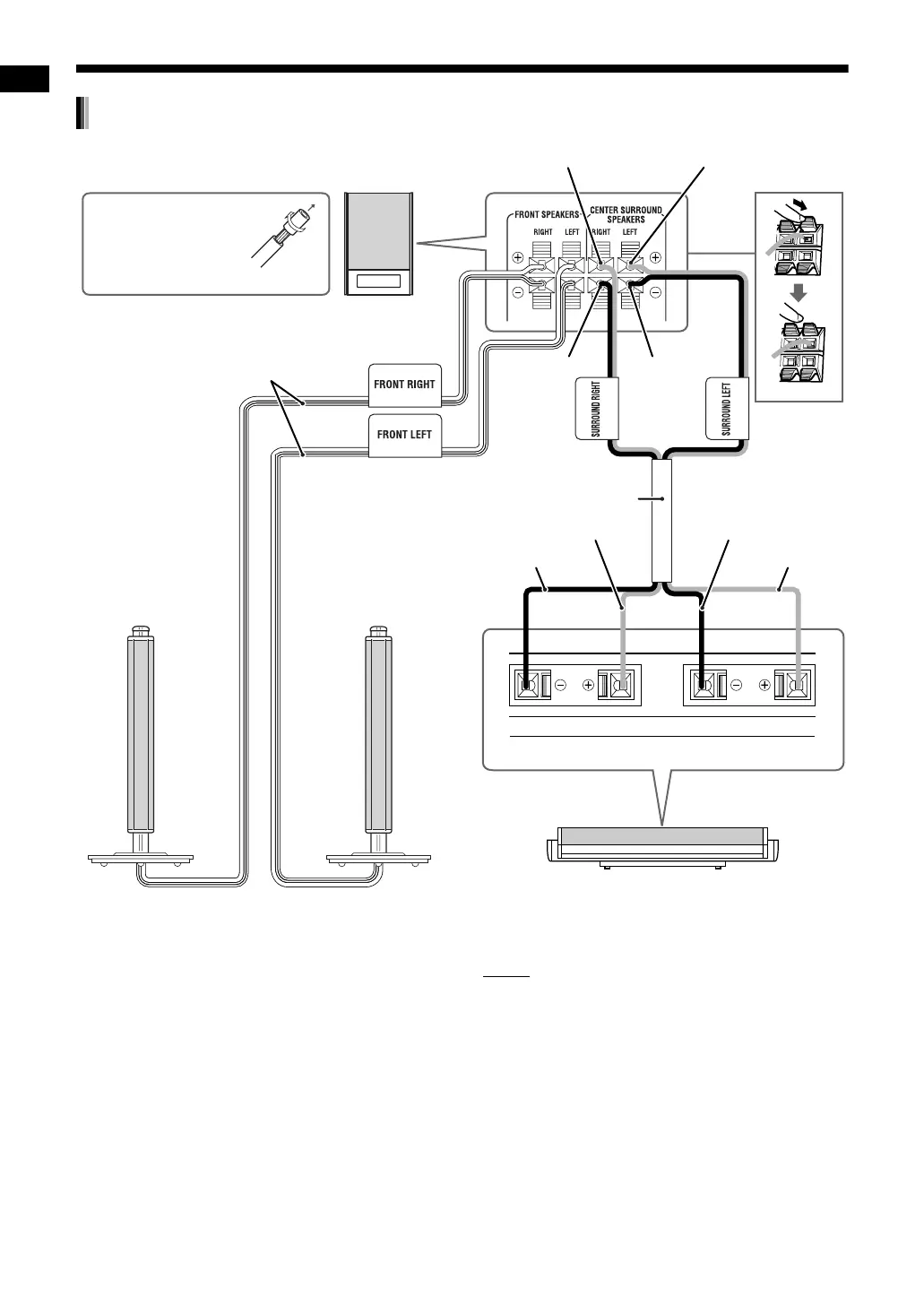

Connecting the speakers to the subwoofer (DD-3)
Before connecting the
speaker cables, twist
and pull off the insula-
tion at the end of each
speaker cable.
Subwoofer
(SP-PWDD3)
The speakers are shown assembled to the speaker
stands on page 8.
The left and right speakers are the same.
Center surround speaker (SP-DD8S)
Black lines
Black
Gray
Black
Blue
Black
Black
Rear view
Gray Blue
Rear view
LeftRight
The speaker is shown assembled to the speaker
stand on page 8.
NOTE
• When connecting the speaker cable to the termi-
nal on the center surround speaker, make sure
that the end of speaker cable does not touch any
other nearby metallic parts.
Right speaker
(SP-DD3F)
Left speaker
(SP-DD3F)
Center surround
speaker cable (supplied)
Preparation (continued) Do not turn on the power until you complete the connection.
