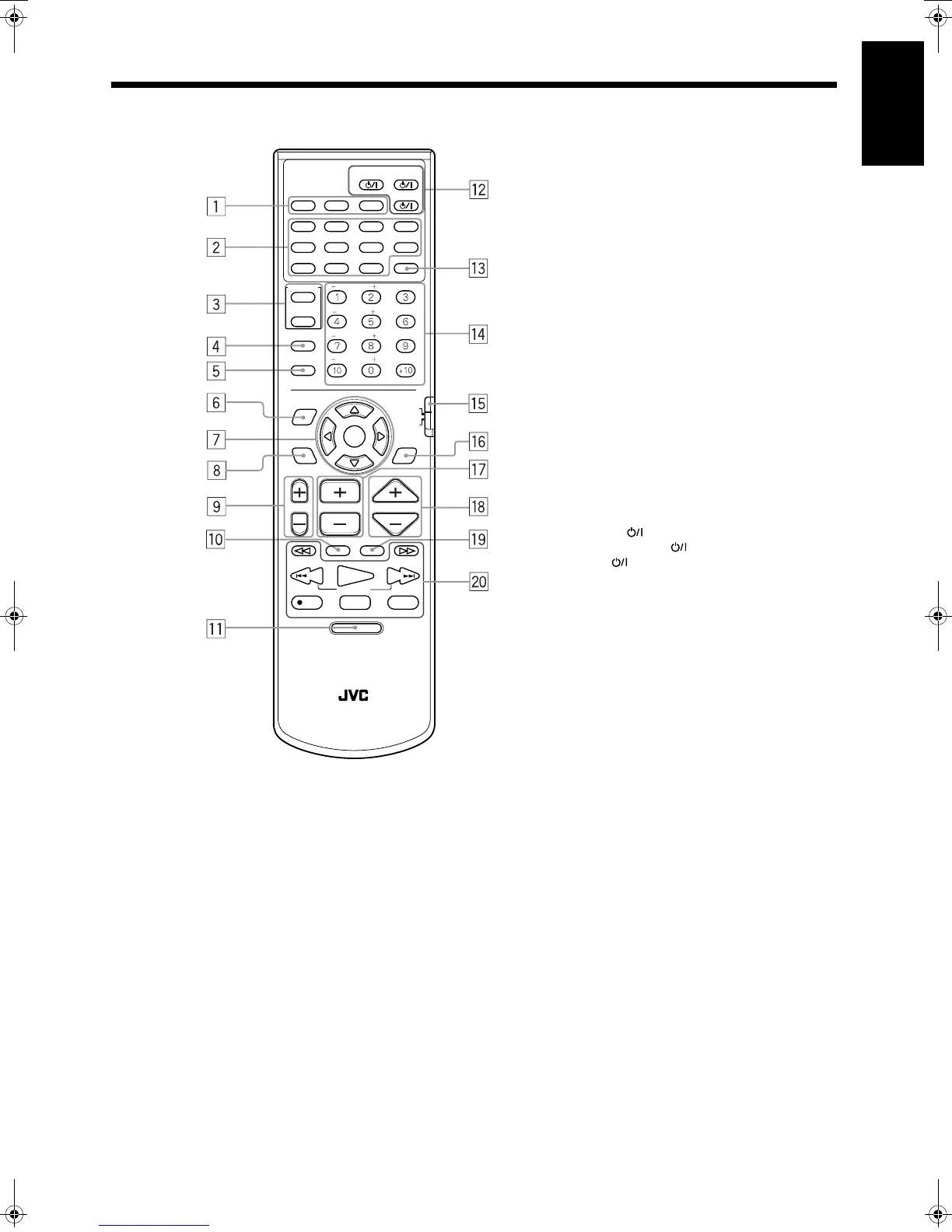

Remote controls
RM-STHA9U
DVD CINEMA SYSTEM
TUNING
UPDOWN
REC
/REW FF/
PAUSE
STROBEMEMORY
F.SEARCHB.SEARCH
PLAY
CHANNELTV VOL VOLUME
STOP
DVD
AUDIOTV/CATV/DBS
STANDBY/ON
VCR
DECODE SUBTITLE TITLE AUDIO
TIME DIGEST ZOOM
VCR
TV
TV RETURN FM MODE 100+
AUDIO/
TV/VCR
CATV/DBS
CONTROL
SUBWOOFER EFFECT
CENTER TEST
REAR-R
ENTER
REAR-L
DISPLAY
CHOICEANGLERETURN
FM/AM AUX
SLEEP
SETTING
PLAY
MODE
THEATER
POSITION
DSP
MODE
TV/VIDEO MUTING
DVD MENU
SOUND
1 Source selecting buttons (14, 18, 41)
AUX, FM/AM, DVD
2 DVD operating buttons
TITLE (25)
SUBTITLE (31)
DECODE (19)
AUDIO (32)
ZOOM (31)
DIGEST (29)
TIME (38, 39)
DISPLAY (37, 38)
RETURN (26)
ANGLE (33)
CHOICE (42)
3 Control buttons VCR/TV (55, 56)
4 SLEEP button (20)
5 SETTING button (48)
6 PLAY MODE button (34, 35, 36, 37)
7 Cursor and ENTER buttons (25)
8 THEATER POSITION button (34)
9 TV VOL +, – button (55)
p TV/VIDEO button (55)
q DVD MENU button (25)
w STANDBY/ON buttons
AUDIO (17, 22)
TV/CATV/DBS (17, 22, 55, 56)
VCR (56)
e SOUND button (51, 52)
r Number buttons
t Remote control mode selector (55)
AUDIO/TV/VCR, CATV/DBS
y DSP MODE button (21)
u CHANNEL +, – button (55, 56)
i VOLUME +, – button (17)
o MUTING button (18)
; Operating buttons (23, 24, 40, 41)
