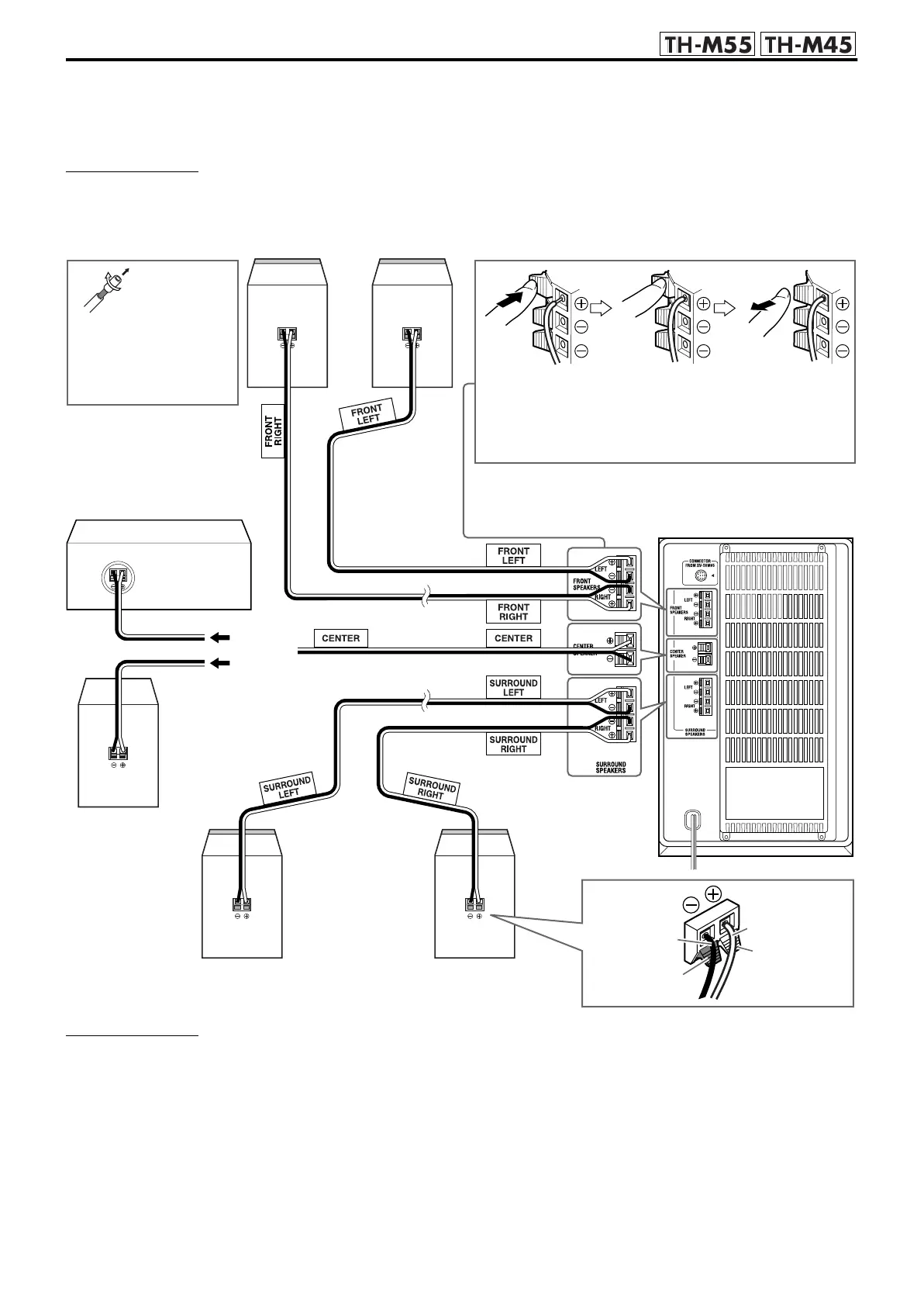

Connecting the satellite (front, center, surround) speakers (TH-M55/TH-M45)
TH-M55: Each speaker (SP-THM55F) can be used as a front or surround speaker.
TH-M45: Be sure to identify each speaker (SP-THM45C/SP-THM45F/SP-THM45S) and connect them to the corresponding terminals
of the powered subwoofer.
CAUTION
• When you connect (larger) speakers other than the supplied ones, only use speakers of the same speaker impedance (SPEAKER IMPEDANCE) as
indicated by the speaker terminals on the rear of the powered subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
CAUTION
When installing the satellite speakers of TH-M45 and the front/surround speakers of TH-M55 on the wall;
• Be sure to have them installed on the wall by a qualified personnel.
DO NOT install the satellite speakers on the wall by yourself to avoid unexpected damage from their falling off the wall due to incorrect installation
or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation on a wall. Injury to personnel or damage to equipment may result if the speakers
installed interfere with daily activities.
Center speaker
(SP-THM55C)
Surround speakers
(TH-M55: SP-THM55F, TH-M45: SP-THM45S)
Powered
subwoofer
TH-M55
TH-M45
Center speaker
(SP-THM45C)
Front speakers (TH-M55: SP-THM55F, TH-M45: SP-THM45F)
White
Red
Black
Black
Press and hold
the clamp.
Insert the bare end of the
speaker cord into the
terminal.
Release the
clamp.
• Connect the white cords to the red (ª) terminals and black cords
to the black (·) terminals.
Before connecting the
speaker cords;
Twist and pull the
insulation coat off and
remove.
