Names of parts and controls
6
English

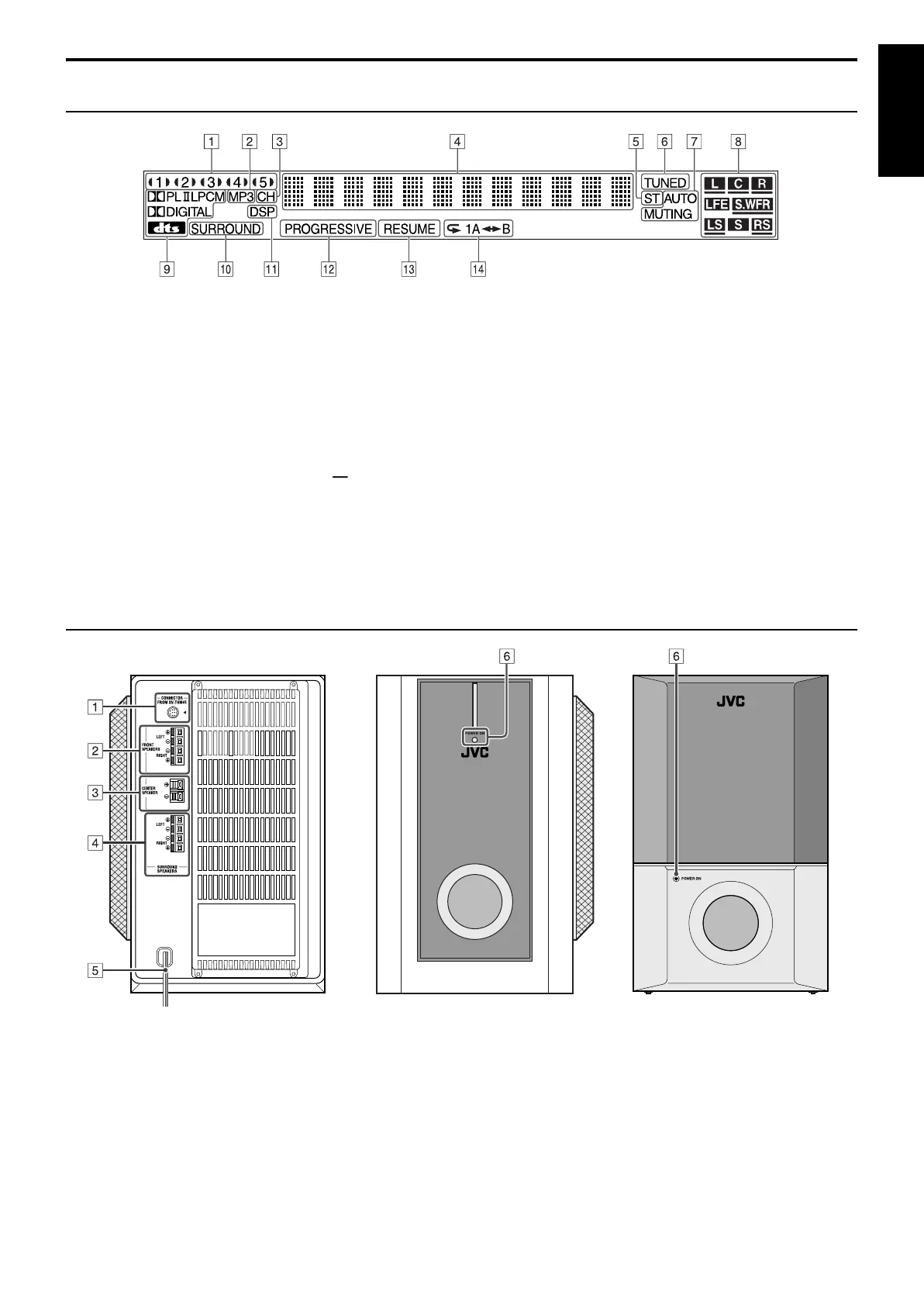

Display window (center unit)
A Disc indicators A pg. 25
B MP3 indicator A pg. 24
C Channel indicator (CH) A pg. 28
D Main display A pg. 24
E Stereo indicator (ST) A pg. 27
F Tuning indicator (TUNED) A pg. 27
G Auto muting indicator (AUTO MUTING) A pg. 28
H
• Source signal indicators (abcdghi )
A pg. 30
• Subwoofer indicator (f) A pg. 30
• Sound reproducing speaker indicator ( ) A pg. 30
I
• Dolby Pro Logic II indicator (GPLII) A pg. 29
• Linear PCM indicator (LPCM) A pg. 30
• Digital signal format indicators A pg. 30
Dolby Digital (GDIGITAL), DTS (C)
J Surround indicator (SURROUND) A pg. 31
K DSP indicator A pg.29–31
L Progressive mode indicator (PROGRESSIVE) A pg. 22
M Resume indicator (RESUME) A pg. 24
N Repeat mode indicators A pg. 44
Powered subwoofer
A System cord connector A pg. 10
B Front speaker terminals (FRONT SPEAKERS) A pg. 12, 13
C Center speaker terminals (CENTER SPEAKER) A pg. 12, 13
D Surround speaker terminals (SURROUND SPEAKERS) A pg. 12, 13
E Power cord A pg. 15
F Power lamp (POWER ON) A pg. 19
Front (SP-PWM65)
Rear
Front (SP-PWM55/SP-PWM45)
