(No.YD091)1-13
3.2.4 Remove the servo control board (See figure 7)
(1) Disconnect the FFC wire from connector CN102
, CN103,
CN104
, CN105 on the servo control board.
(2) Remove the two screws D attaching the servo control
board.
(3) Hooks d is removed, and the servo control board is re-
moved.

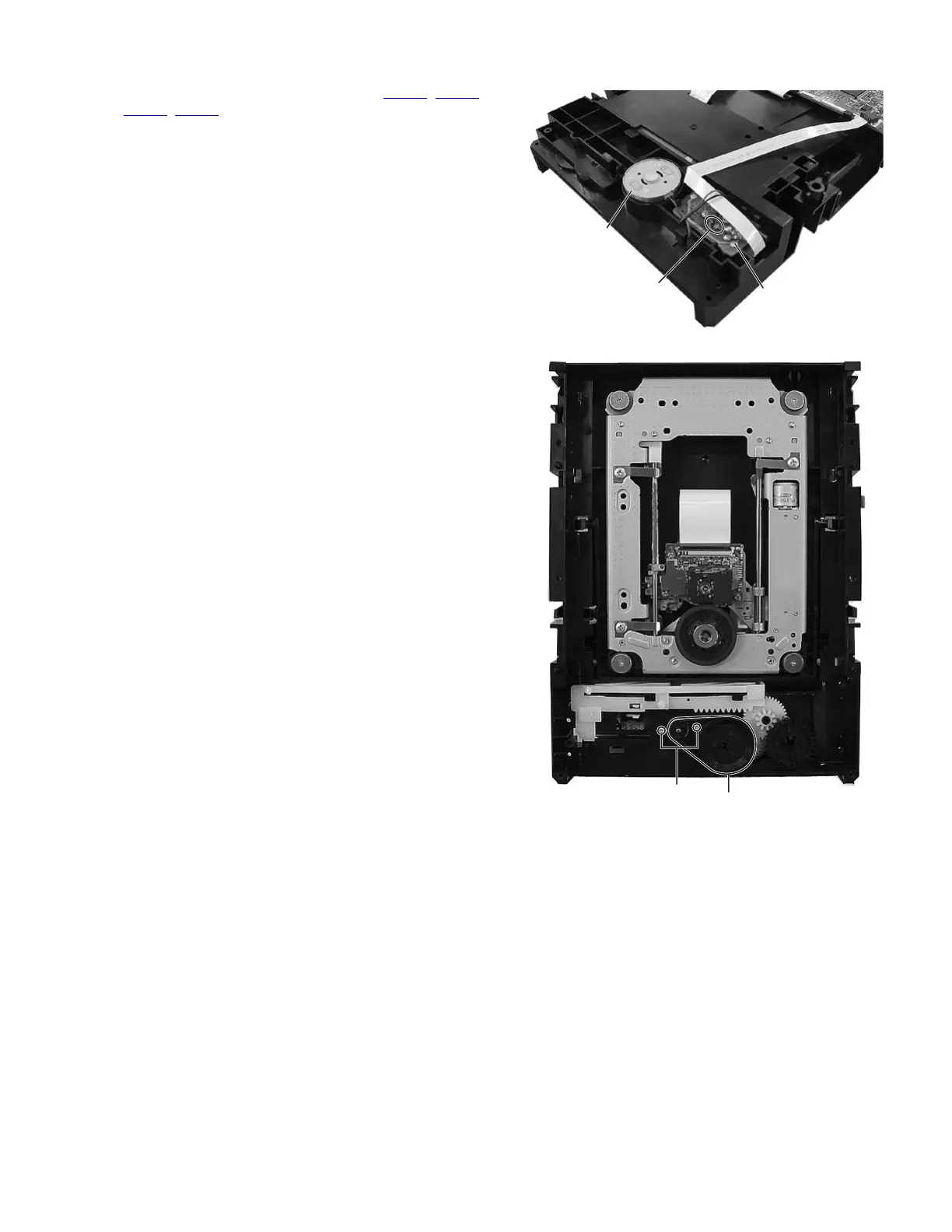

3.2.5 Remove the loading motor (See figure 8, figure 9)
• Prior to performing the following procedure, remove the top
cover, tray.
(1) Remove the solder part e soldered on the switch board.
(2) A belt is removed.
(3) Remove the two screws E attaching the loading motor.
Fig.8
Fig.9
Part e
Switch board
Loading
motor
E
Belt
To Next Page
