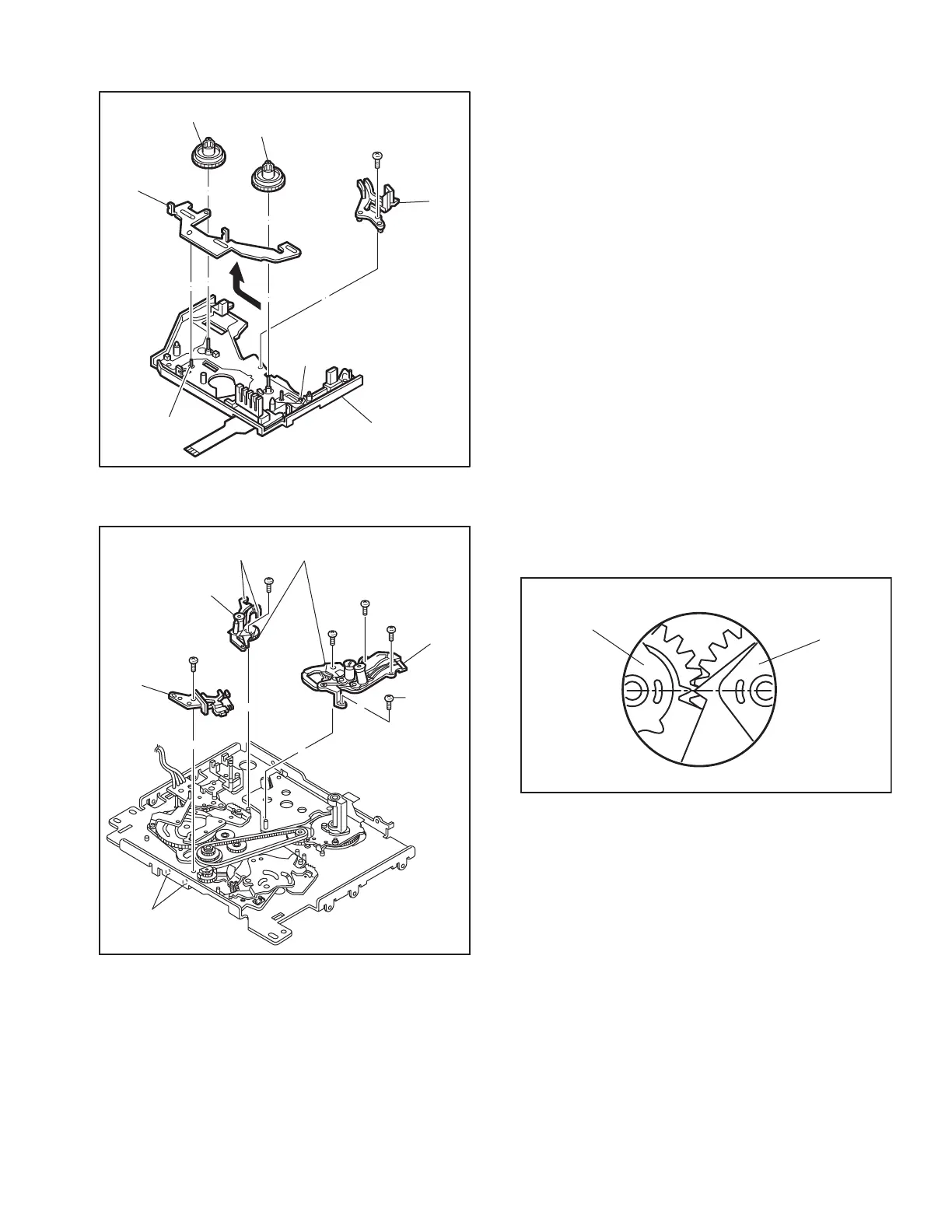

7. [14] Reel disk assembly (Supply) / [15] Reel disk assembly (Take up) / [16] Prism / [17] Control plate
Fig.4-5-7
8. [18] Guide rail (Take up) assembly / [19] Guide rail (Supply) assembly / [20] Base plate assembly
Fig.4-5-8
Note 8a:
When attaching, set the alignment markings of the two
gears so that the markings face opposite to each other.
Fig.4-5-8a
(
L12
)
(
L12
)
19
(
S2
)
[
14
]
[
17
]
[
15
]
[
16
]
[
11
]
25
(
S2
)
20
(
S2
)
21
(
S2
)
24
(
S2
)
22
(
S2
)
23
(
S2
)
(
L13
)
(
L14
)
<Note8a>
[20]
[19]
[18]
[
19
]
[
18
]
