JVC SR-DVM700EU - Page 22

1-22 (No.YD091)

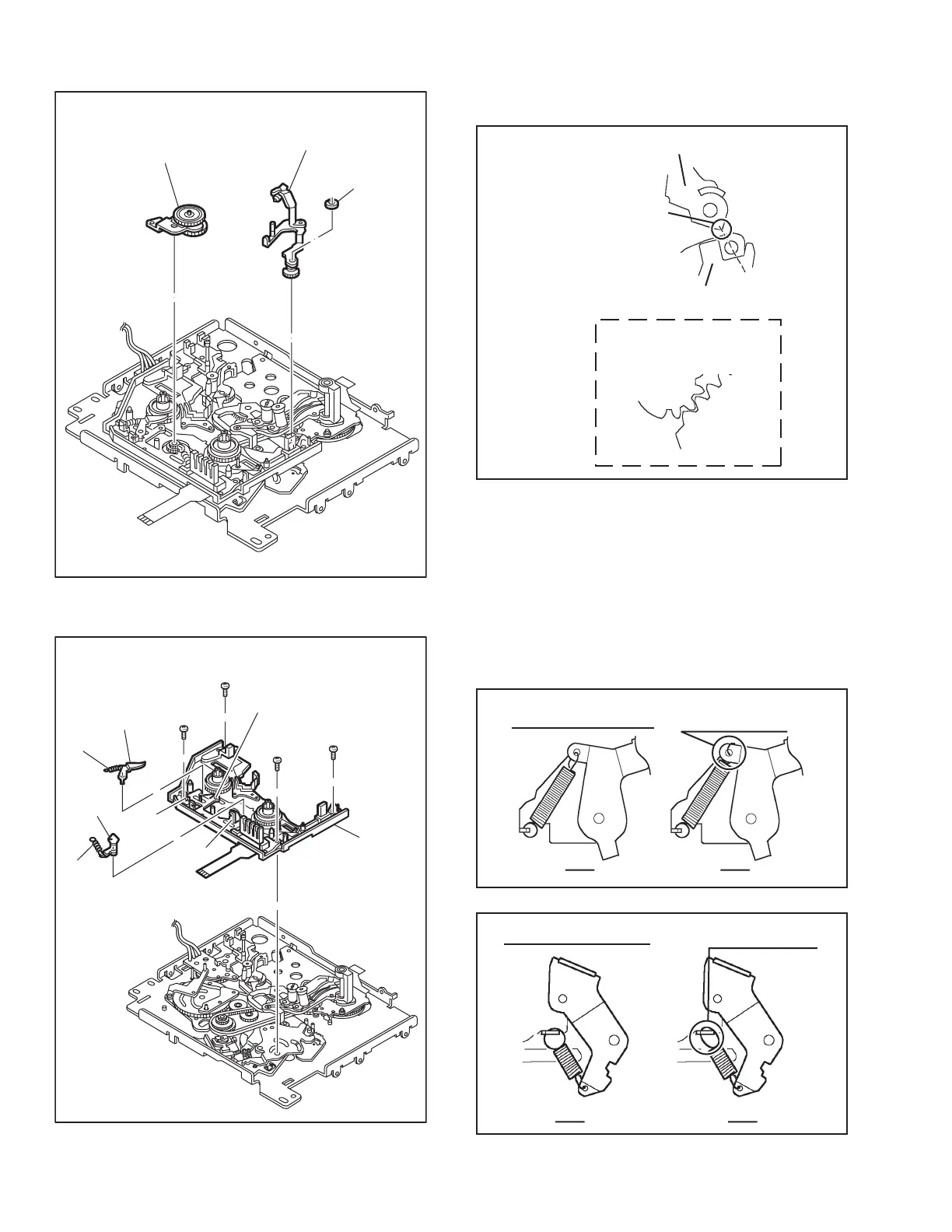

5. [9] Exit guide arm assembly/ [10] Swing arm assembly
Fig.4-5-5
Note 5a:
Exit guide arm assembly phase alignment.
Fig.4-5-5a
6. [11] Sub deck assembly/ [12] Main brake (Supply) assembly/[13] Main brake (Take up) assembly
Fig.4-5-6
Note 6a:
When attaching the sub deck assembly, make sure to
adjust the phase of the control plate.
Fig.4-5-6a
Fig.4-5-6b
(
W1
)
<Note5a>
[
10
]
[
9
]
Exit guide arm assembly
Charge arm assembly
Gear alignment
Exit guide arm
assembly
Arm gear 2
assembly
This protrusion is
combined to
the dent of Charge
arm assembly.
18
(
S2
)
15
(
S2
)
16
(
S2
)
17
(
S2
)
(
L10
)
(
L11
)
(
P4
)
(
P5
)
<Note6a>
[
13
]
[
12
]
[
11
]
Main brake (Supply)
OK NG
spring hooked
reverse-side
Main brake (Take up)
OK NG
Twisted spring
