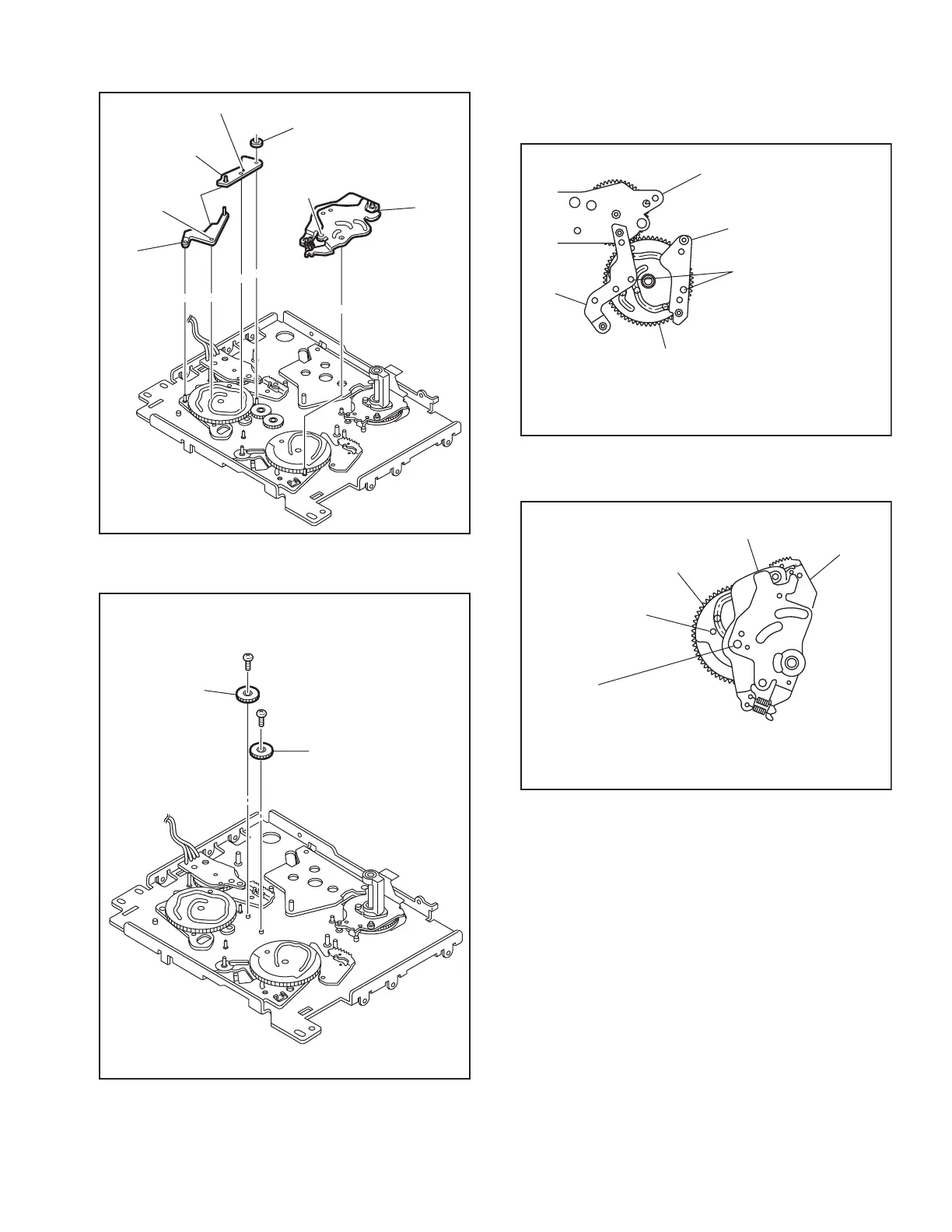

11. [29] Tension control arm assembly/ [30] Brake control arm assembly / [31] Charge arm assembly
Fig.4-5-11
12. [32] Connect gear 2 / [33] Connect gear 2
Fig.4-5-12
Note 11a:
How to attach the tension control arm assembly [29] /
Brake control arm assembly [30] .
Fig.4-5-11a
Note 11b:
How to attach the charge arm assembly [31]
Fig.4-5-11b
(
L17
)
(
L16
)
(
L15
)
(
W1
)
<Note11a>
<Note11b>
[
30
]
[
29
]
[
31
]
27
(
S2
)
28
(
S2
)
[
32
]
[
33
]
Boss
(Phase alignment)
Align the phase of the main cam [35], then attach it by
fitting the bosses into the cam slot.
[34]
[30]
[35]
[29]
Boss
(Phase alignment)
Phase alignment
[
38
]
[
31
]
[
39
]
Align the phase of the sub cam [38], then attach it by
fitting the boss into the cam slot.
