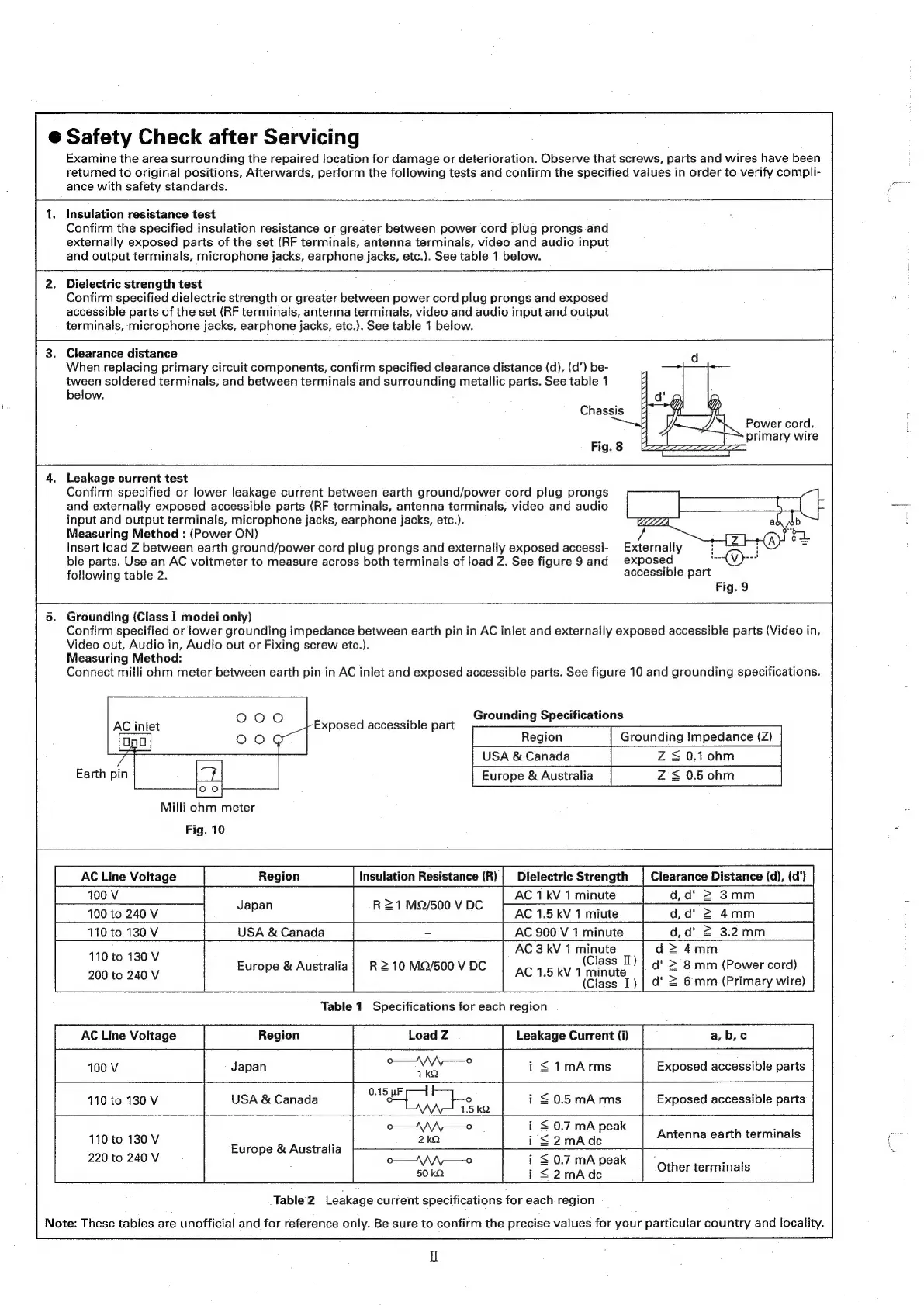

@ Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following tests and confirm the specified values in order to verify compli-
ance with safety standards.
1. Insulation resistance test .
Confirm the specified insulation resistance or greater between power cord plug prongs and
externally exposed parts of the set (RF terminals, antenna terminals, video and audio input
and output terminals, microphone jacks, earphone jacks, etc.). See table 1 below.
Dielectric strength test
Confirm specified dielectric strength or greater between power cord plug prongs and exposed
accessible parts of the set (RF terminals, antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.}. See table 1 below.
Clearance distance
When replacing primary circuit components, confirm specified clearance distance (d), (d’) be-
tween soldered terminals, and between terminals and surrounding metallic parts. See table 1
below.
Chassis
Power cord,
primary wire
Fig. 8
Leakage current test
Confirm specified or lower leakage current between earth ground/power cord plug prongs
and externally exposed accessible parts (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone jacks, etc.).
Measuring Method : (Power ON)
Insert load Z between earth ground/power cord plug prongs and externally exposed accessi- Externally
ble parts. Use an AC voltmeter to measure across both terminals of load Z. See figure 9 and exposed
following table 2. accessible part
Fig. 9
Grounding (Class I modei only)
Confirm specified or lower grounding impedance between earth pin in AC inlet and externally exposed accessible parts (Video in,
Video out, Audio in, Audio out or Fixing screw etc.).
Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and exposed accessible parts. See figure 10 and grounding specifications.
Grounding Specifications
Grounding Impedance (Z)
USA & Canada ZS 0.10hm
Europe & Australia Z S$ 0.5 0hm
O00
AC inlet Exposed accessible part
Milli ohm meter
Fig. 10
Insulation Resistance (R)
100 V R>1Mays00 vp LAC TRV 1 minute
100 to 240 V
110 to 130 V
d 24mm
110
to
130
V
d'
2
8
mm
(Power
cord)
200 to 240 V
d' 2 6mm (Primary wire)
USA & Canada AC 900 V 1 minute
AC 3 kV 1 minute
(Class I)
AC 1.5 kV 1 minute
(Class I}
Europe & Australia} R210 MQ/500 V DC
Table 1 Specifications for each region
AC Line Voltage
Leakage Current (i) a,b, ¢
A
1mArms Exposed accessible parts
USA & Canada HA
110 to 130 V
0.5 mA rms Exposed accessible parts
i S$ 0.7 mA peak :
i<2mAdc Antenna earth terminals
110 to 130 V
220 to 240 V
Europe & Australia
i S$ 0.7 mA peak :
i <9 mA de . Other terminals
Table 2 Leakage current specifications for each region
Note: These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
