Reassembling
procedure
of
the
front
panel
ass
y
1
.
Attach
the
Key
switch
board
ass
y
to
the
panel
with
two
screws
.
2
.
Put
the
door
ass
y
and
the
mechanism
holder
together
with
on
the
front
panel
.
3
.
Attach
the
mechanism
holder
to
the
front
panel
ass
y
with
two
screws
.
4
.
Engage
the
door
spring
properly
.
5
.
Install
the
damper
.
(
Push
the
pawl
side
last
to
engage
it
.
)
6
.
Install
the
eject
arm
ass
y
.
7
.
Attach
the
Switch
&
Volume
board
ass
y
to
the
panel
with
five
screws
.
8
.
Install
the
mechanism
ass
y
.
9
.
HooK
the
eject
spring
between
lock
lever
and
mechanism
ass
y
.
10
.
Attach
the
Mecha
control
board
ass
y
to
the
panel
with
two
screws
.
Mechanism
A
©
©
S
3
WF
o
-
o
Pinch
roller
Iright
)
Pinch
roller
(
left
)
Head
mount

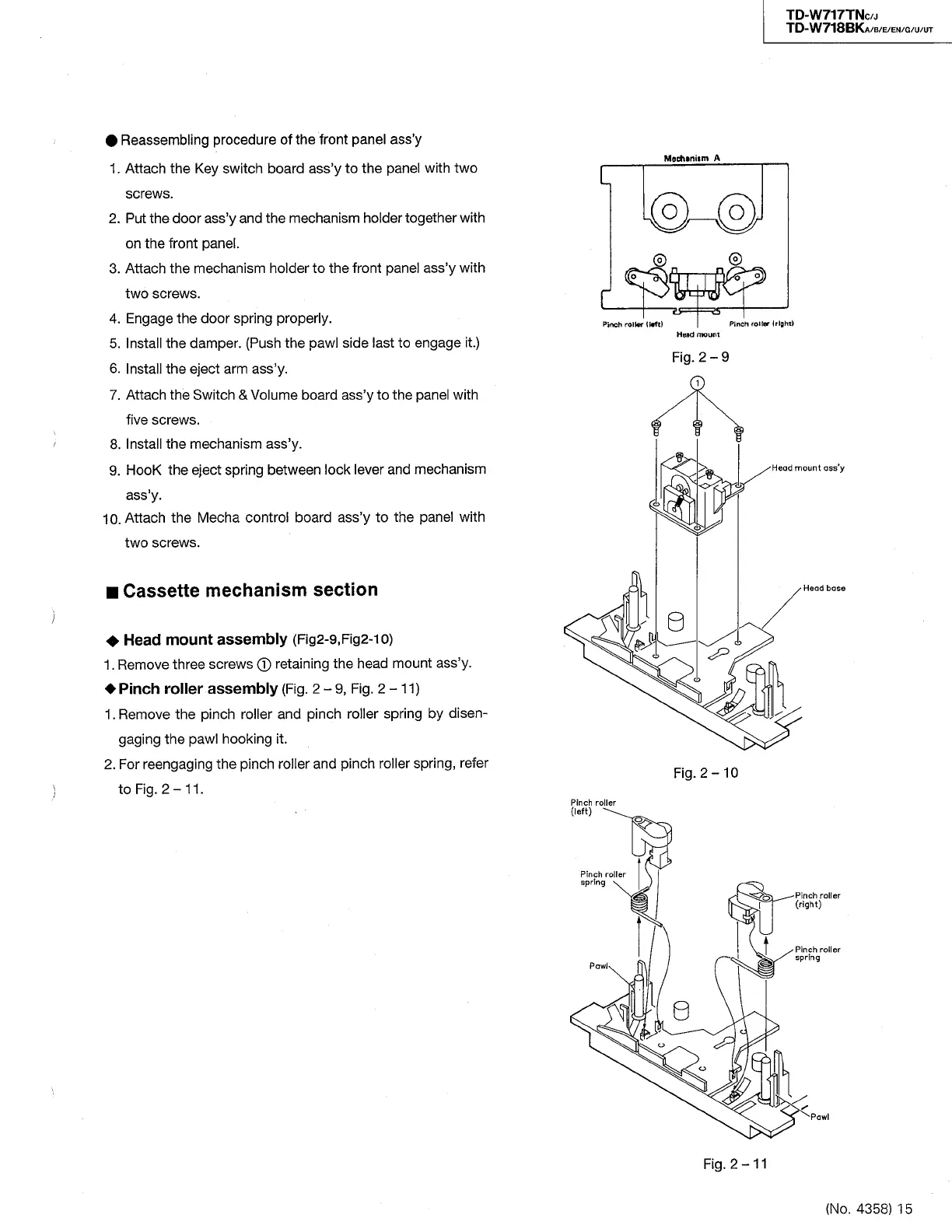

Fig
.
2
-
9
>
a
Head
mount
ass
y
o
/
Cassette
mechanism
section
Head
base
Head
mount
assembly
(
Fig
2
-
9
,
Fig
2
-
io
)
1
.
Remove
three
screws
©
retaining
the
head
mount
ass
y
.
Pinch
roller
assembly
(
Fig
.
2
-
9
,
Fig
.
2
-
11
)
1
.
Remove
the
pinch
roller
and
pinch
roller
spring
by
disen
-
gaging
the
pawl
hooking
it
.
2
.
For
reengaging
the
pinch
roller
and
pinch
roller
spring
,
refer
to
Fig
.
2
-
11
.
Fig
.
2
-
10
\
i
Pinch
roller
(
left
)
Pinch
roller
spring
Pinch
roller
(
right
)
Pinch
roller
spring
(
No
.
4358
)
15
