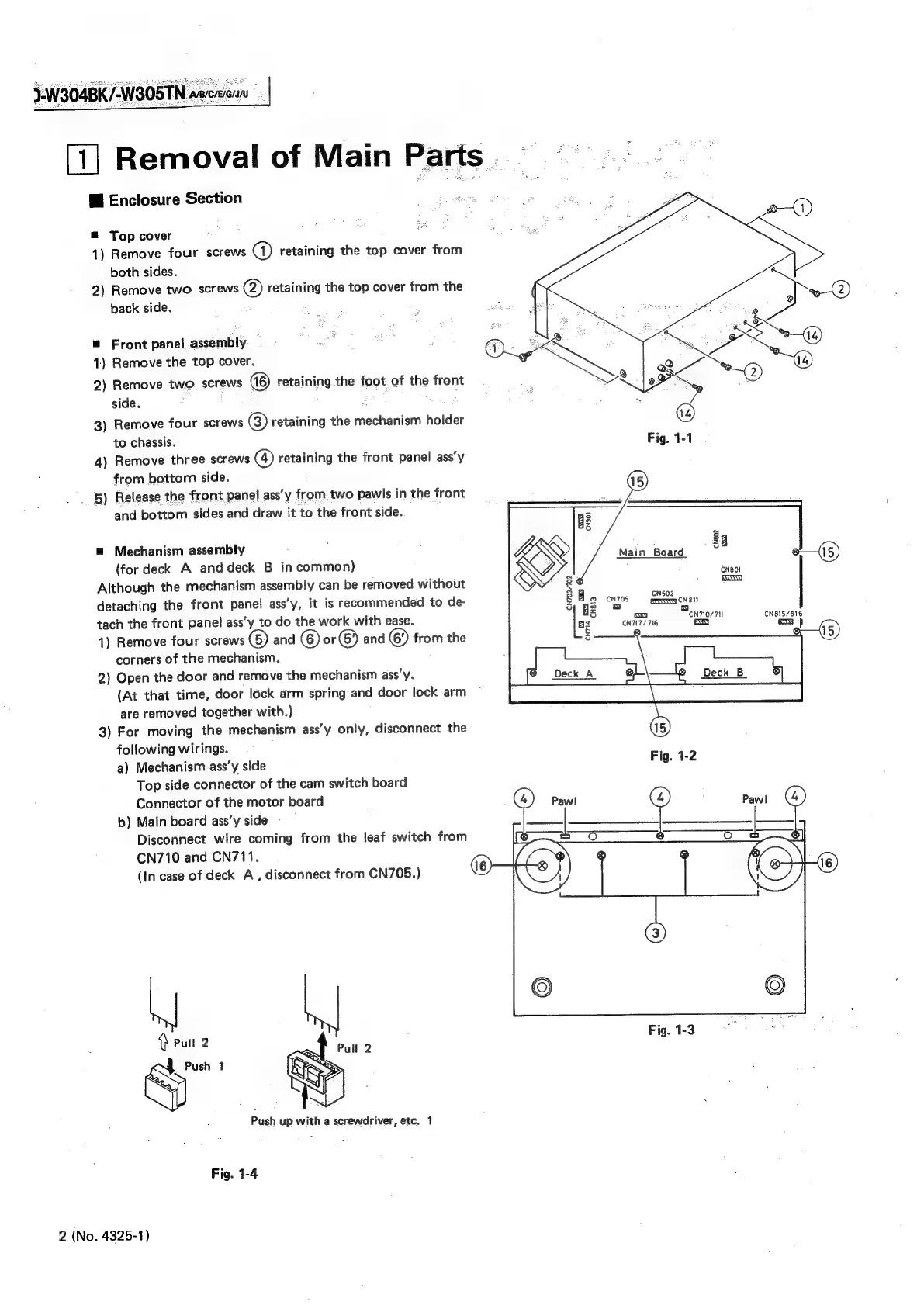

Removal
of
Main
Parts
©
~
Wi
Enclosure
Section
ola:
So
™ Top cover
1)
Remove
four
screws
@
retaining
the
top
cover
from
both
sides.
2)
Remove
two
screws
@)
retaining
the
top
cover
from
the
back
side.
;
®
Front
panel
assembly.
1) Remove the top cover.
2)
Remove
two.
screws
retaining
the
foot.
of
the
front
side.
:
ae
3)
Remove
four
screws
3)
retaining
the
mechanism
holder
to
chassis.
4)
Remove
three
screws
@
retaining
the
front
panel
ass’y
from
bottom
side.
;
5)
Release
the
front
panel
ass’y
from
two
pawls
in
the
front
and
bottom
sides
and
draw
it
to
the
front
side.
:
8p
™
Mechanism
assembly
24
Main
Board
@—{15)
(for
deck
A
anddeck
B
in
common)
ae
Although
the
mechanism
assembly
can
be
removed
without
eo
detaching
the
front
panel
ass’y,
it
is
recommended
to
de-
2
CNS
RENCE
tach
the
front
panel
ass’y
to
do
the
work
with
ease.
5
Geni
eNO
AINE
ones
1)
Remove
four
screws
®
and
©)
or)
and
(6!)
from
the
corners
of
the
mechanism.
,
2)
Open
the
door
and
remove
the
mechanism
assy.
(At
that
time,
door
lock
arm
spring
and
door
lock
arm
are
removed
together
with.)
3)
For
moving
the
mechanism
ass’y
only,
disconnect
the
following
wirings.
a)
Mechanism
ass’y
side
Top
side
connector
of
the
cam
switch
board
Connector
of
the
motor
board
b)
Main
board
ass’y
side
-
Disconnect
wire
coming
from
the
leaf
switch
from
CN710
and
CN711.
(In
case
of
deck
A,
disconnect
from
CN705.)
Fig. 1-3
{ Pull 2
Push 1
Pull 2
Push up with a screwdriver, etc. 1
Fig. 1-4
2 (No. 4325-1)
