TD-W304BK/-W305TN wacyeciu

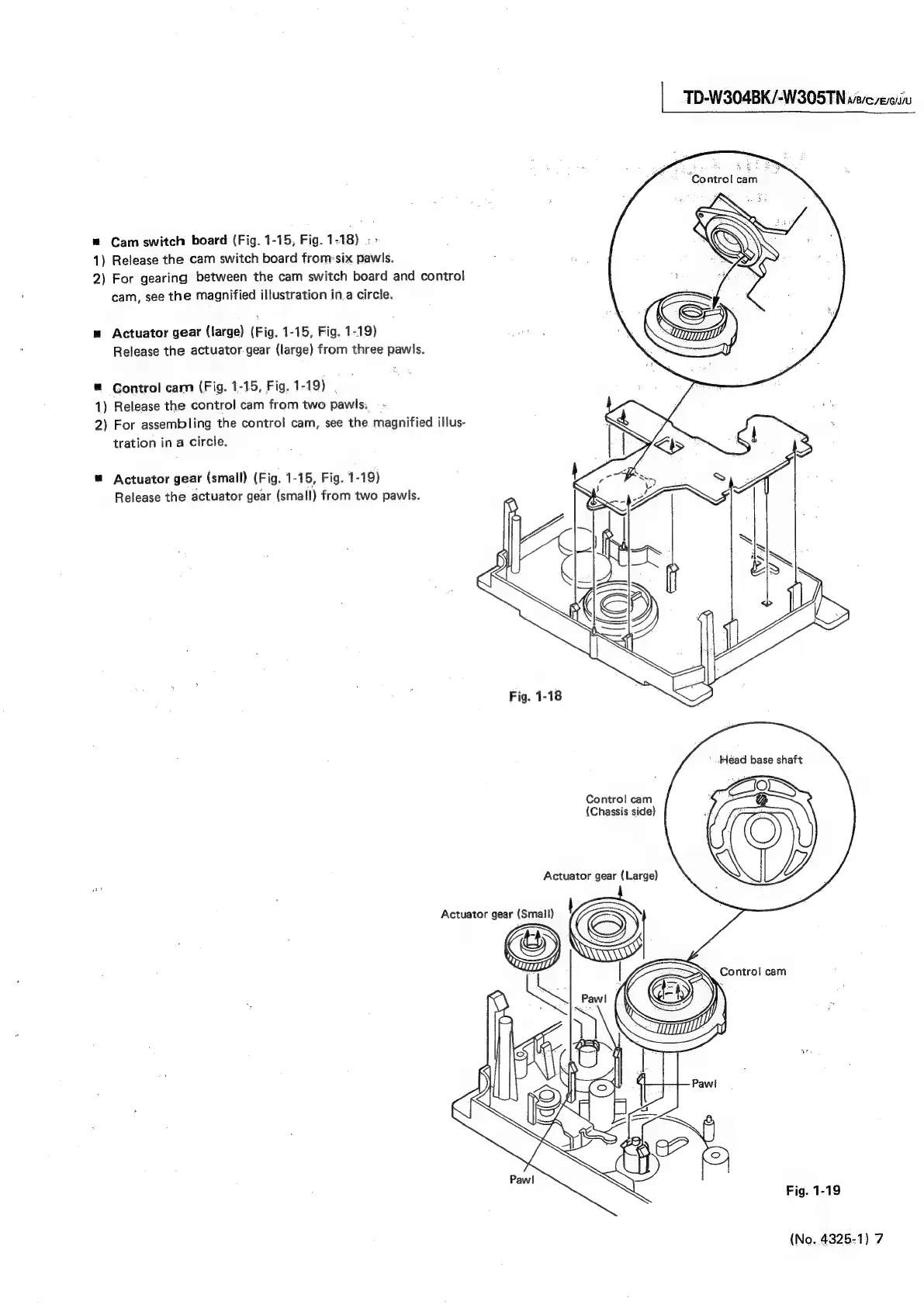

“Controlcam
=
Cam
switch
board
(Fig.
1-15,
Fig.
1-18)
:>
1)
Release
the
cam
switch
board
from:six
pawls.
2)
For
gearing
between
the
cam
switch
board
and
control
cam,
see
the
magnified
illustration
in.a
circle.
m Actuator gear (large) (Fig. 1-15, Fig. 1-19)
Release
the
actuator
gear
(large)
from
three
pawls.
® Gontrol cam (Fig. 1-15, Fig. 1-19) ,
1) Release the control cam from two pawls;
2)
For
assembling
the
contro!
cam,
see
the
magnified
illus-
tration
in
a circle.
" Actuator gear (small) (Fig. 1-15, Fig. 1-19)
Release the actuator gear (small) from two pawls.
Control! cam
(Chassis side)
Actuator gear (Large)
Fig. 1-19
(No. 4325-1) 7
