D-W304BK/-W305TN
ascicuu
|

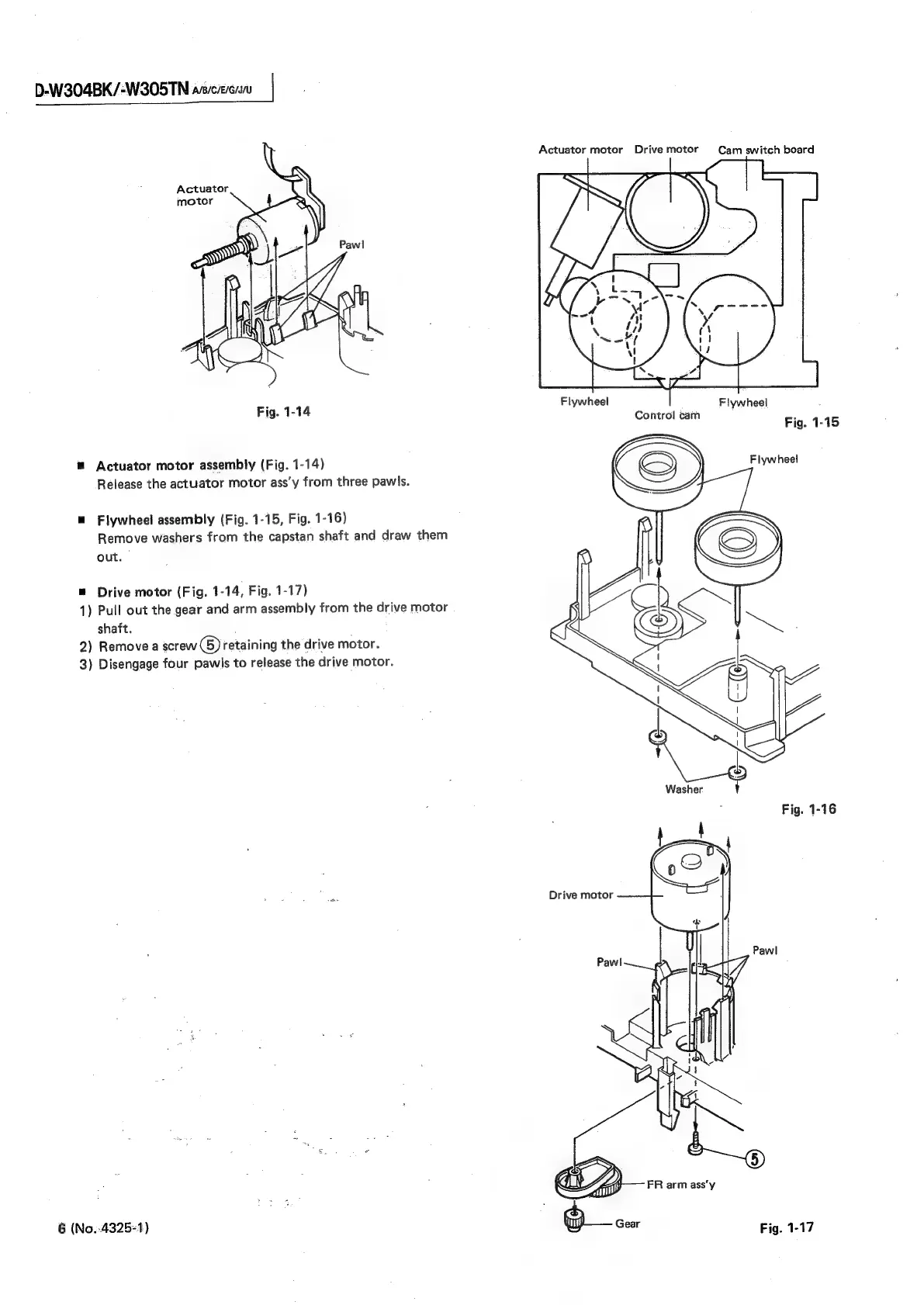

Actuator moter Drive motor Cam switch board
Flywheel Flywheel
Control cam
Fig. 1-15
™
Actuator
motor
assembly
(Fig.
1-14)
Release
the
actuator
motor
ass’y
from
three
pawls.
Flywheel
= Flywheel assembly (Fig. 1-15, Fig. 1-16)
Remove
washers
from
the
capstan
shaft
and
draw
them
out.
™ Drive motor (Fig. 1-14, Fig. 1-17)
1)
Pull
out
the
gear
and
arm
assembly
from
the
drive
motor
shaft.
2)
Remove
a
screw
(5)
retaining
the
drive
motor.
3)
Disengage
four
pawls
to
release
the
drive
motor.
Drive motor
Pawl
FR arm ass’y
6 (No.-4325-1) @— cow Fig. 1-17
