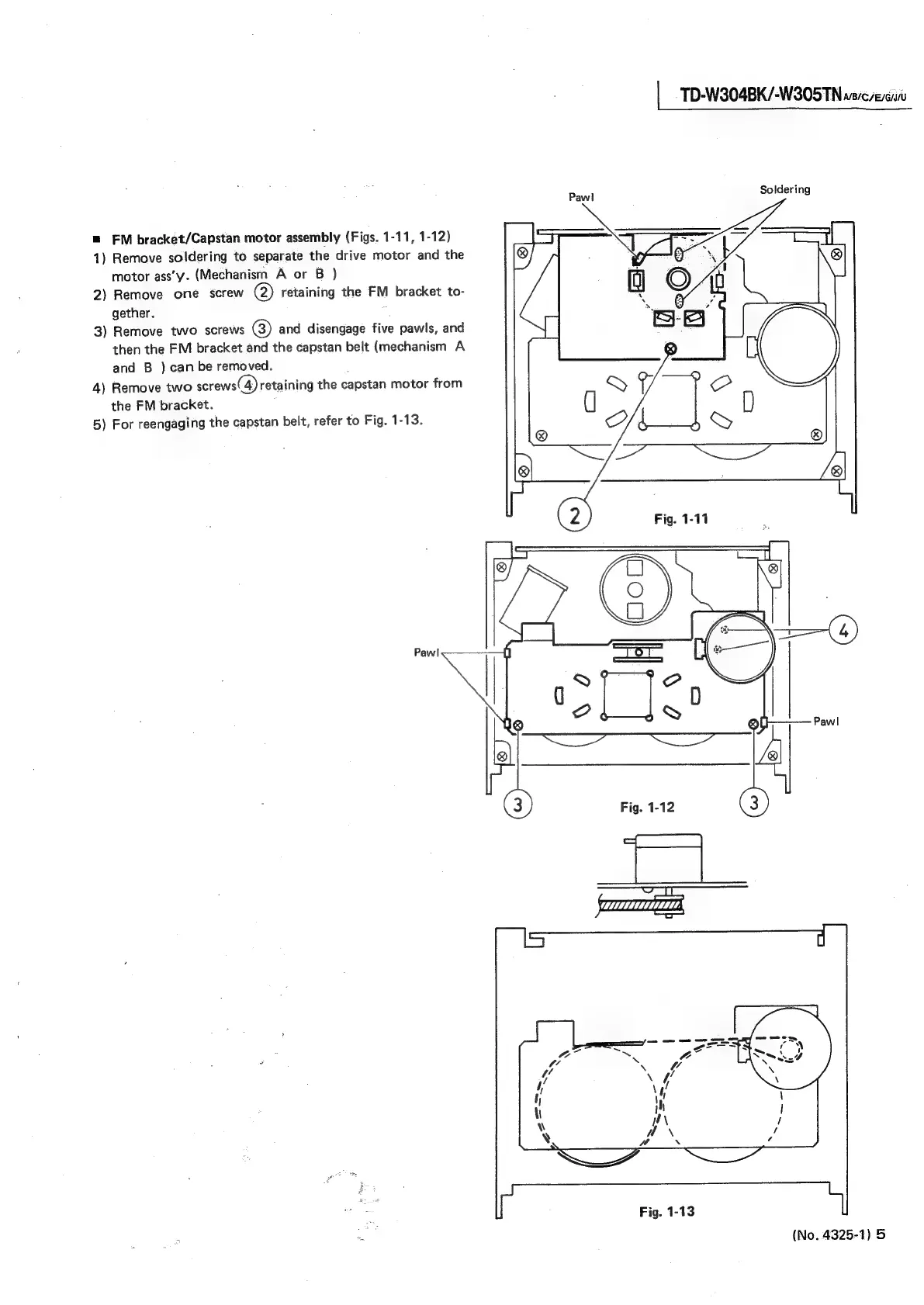

JVC TD-WS305TN A User Manual

| TD-W304BK/: -W305TN AIB/C/E/GHIU
Soldering
Paw!
™
FM
bracket/Capstan
motor
assembly
(Figs.
1-11,
1-12)
1)
Remove
soldering
to
separate
the
drive
motor
and
the
motor
ass’y.
(Mechanism
A
or
B
)
2)
Remove
one
screw
(2)
retaining
the
FM
bracket
to-
gether.
3)
Remove
two
screws
8)
and
disengage
five
pawls,
and
then
the
FM
bracket
and
the
capstan
belt
(mechanism
A
and
B
)
can
be
removed.
4)
Remove
two
screws(4)
retaining
the
capstan
motor
from
the
FM
bracket.
5)
For
reengaging
the
capstan
belt,
refer
to
Fig.
1-13.
Pawl
Fig. 1-12
(No. 4325-1) 5
