)-W304BK/-W305TN asiceaniu
Mechanism A

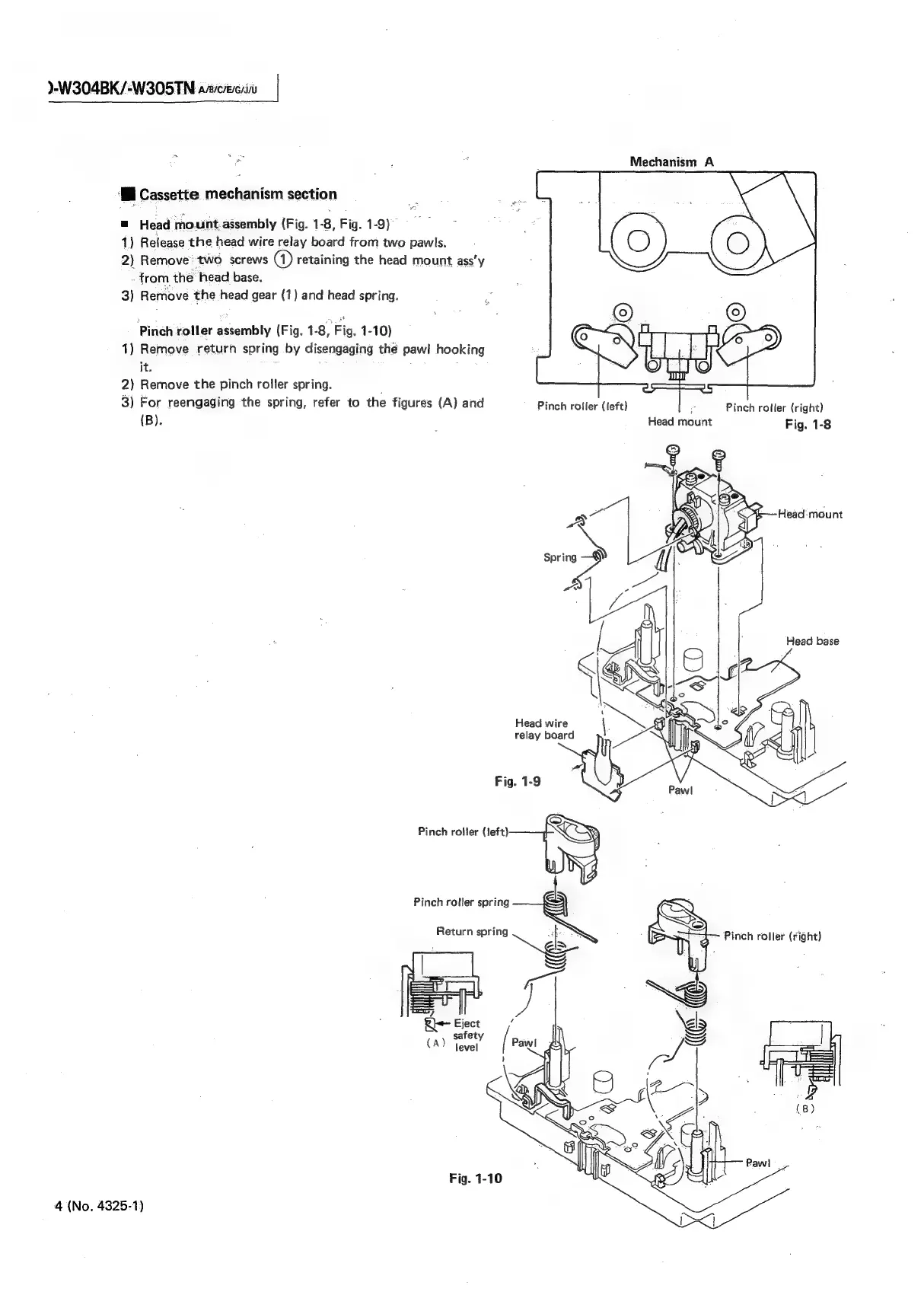

‘i Cassette mechanism section
= Head mount assembly (Fig. 1-8, Fig. 1-9)
1) Release the head wire relay board from two pawls.
2) Remove’ two screws @) retaining the head mount ass’y
. from the head base.
3) Remove the head gear (1) and head spring.
Pinch roller assembly (Fig. 1-8, Fig. 1-10)
1) Remove returh spring by disengaging the pawl hooking
it.
2) Remove the pinch roller spring.
3) For reengaging the spring, refer to the figures (A) and Pinch rofler (left) Pinch roller (right)
(B). Head mount Fig. 1-8
Head ‘mount
Head base
Head wire
relay board
Pinch roller spring
Return
spring
—~
Pinch
roller
(Fight)
4 (No. 4325-1)
