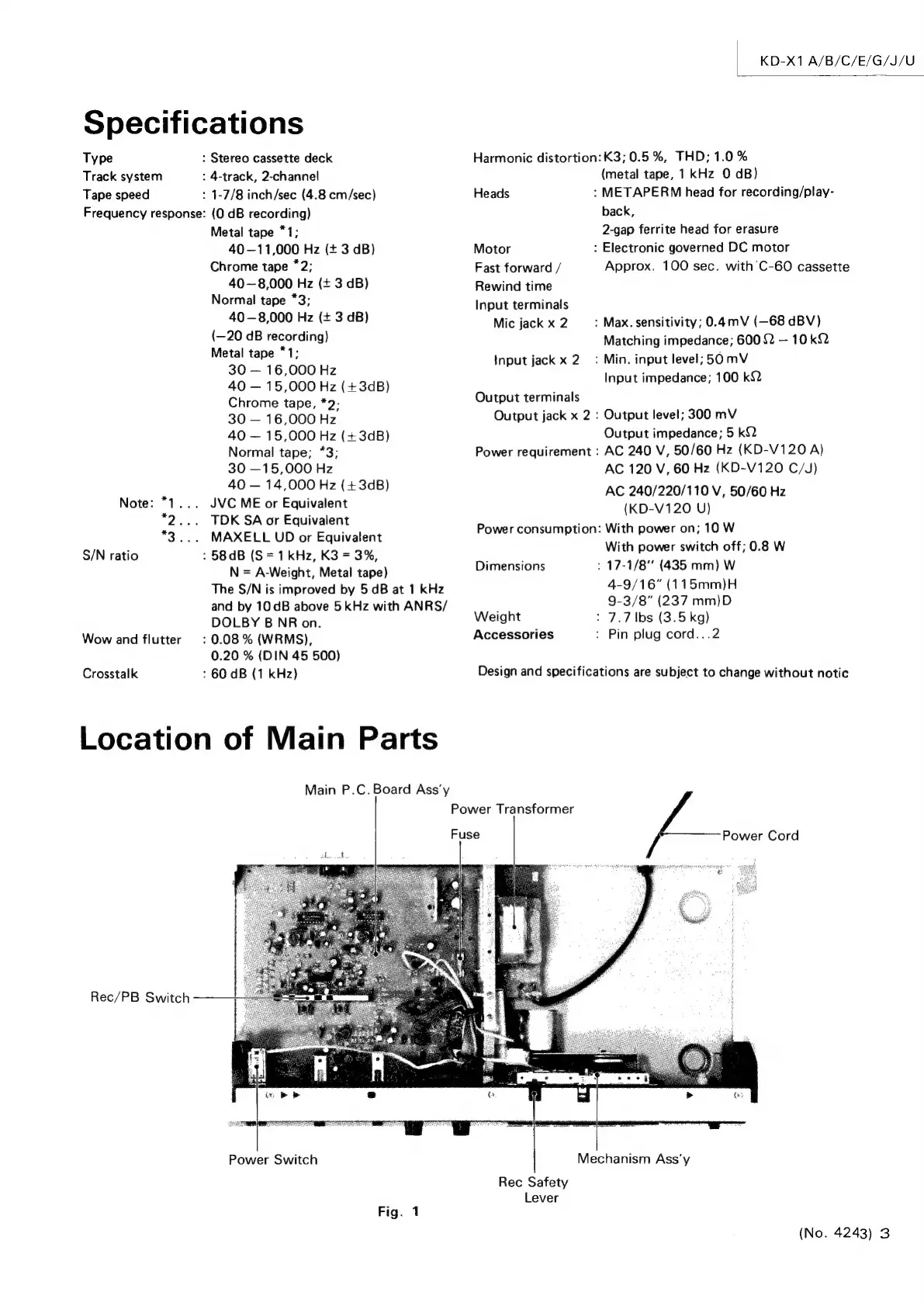

Specifications
Type
Track system
Tape speed
Frequency response:
Note: “1...
bi ee
3
*
S/N ratio
Wow and flutter
Crosstalk
: Stereo cassette deck
: 4-track, 2-channel
: 1-7/8 inch/sec (4.8 cm/sec)
(0 dB recording)
Metal tape *1;
40—11,000 Hz (+ 3 dB)
Chrome tape *2;
40—8,000 Hz (+ 3 dB)
Normal tape *3;
40—8,000 Hz (+ 3 dB)
(—20 dB recording)
Metal tape *1;
30 — 16,000 Hz
40 — 15,000 Hz (+3dB)
Chrome tape, *2:
30 — 16,000 Hz
40 — 15,000 Hz (+3dB)
Normal tape; *3;
30 —15,000 Hz
40 — 14,000 Hz (+3dB)
JVC ME or Equivalent
TDK SA or Equivalent
MAXELL UD or Equivalent
: 58dB (S=1kHz, K3 = 3%,
N = A-Weight, Metal tape)
The S/N is improved by 5 dB at 1 kHz
and by 10 dB above 5 kHz with ANRS/
DOLBY B NR on.
: 0.08 % (WRMS),
0.20 % (DIN 45 500)
: 60 dB (1 kHz)
Location of Main Parts
Rec/PB Switch
Main P.C. Board Ass’y
Power Switch
Fig. 1
KD-X1 A/B/C/E/G/J/U
Harmonic distortion: K3; 0.5%, THD; 1.0 %
(metal tape, 1 kHz O dB)
Heads : METAPERM head for recording/play-
back,
2-gap ferrite head for erasure
Motor : Electronic governed DC motor
Fast forward / Approx. 100 sec. with C-60 cassette
Rewind time
Input terminals
Mic jack x 2 : Max. sensitivity; 0.4mV (—68 dBV)
Matching impedance; 600 2 — 10 kQ
Input jack x 2. : Min. input level; 50 mV
Input impedance; 100 k22
Output terminals
Output jack x 2 : Output level; 300 mV
Output impedance; 5 kQ
Power requirement : AC 240 V, 50/60 Hz (KD-V120 A)
AC 120 V, 60 Hz (KD-V120 C/J)
AC 240/220/110 V, 50/60 Hz
(KD-V120 U)
Power consumption: With power on; 10 W
With power switch off; 0.8 W
Dimensions : 17-1/8" (435 mm) W
4-9/16” (115mm)H
9-3/8” (237 mm)D
Weight : 7.7 lbs (3.5 kg)
Accessories : Pin plug cord...2
Design and specifications are subject to change without notic
Power Transformer
Fuse Power Cord
Mechanism Ass‘y
Rec Safety
Lever
(No. 4243) 3
