JVC TH-A35 Service Manual

TH-A35
1-6
< MAIN BODY >

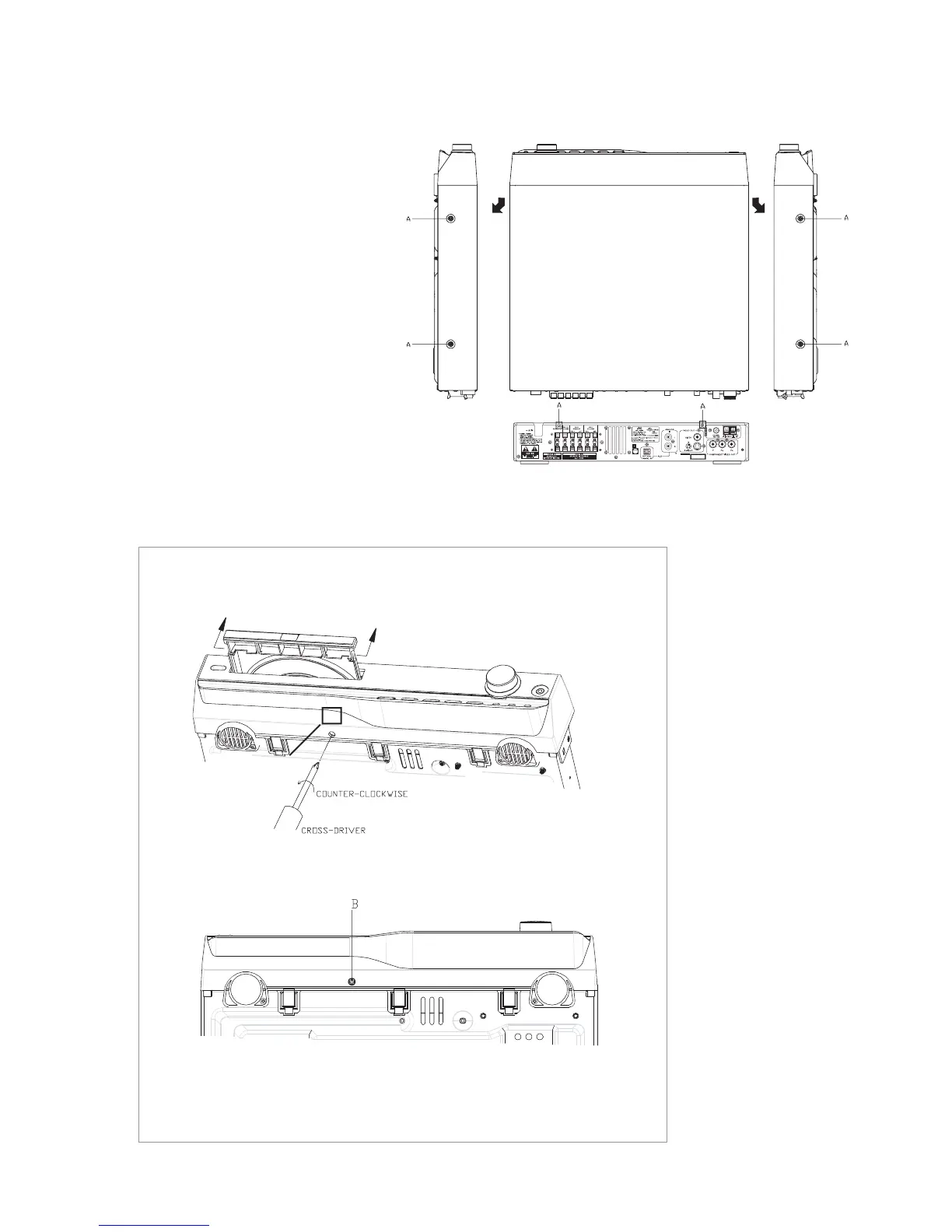

 Removing the cabinet top
(See Fig.1)
1. Unscrew the 6 serew A
2. Lift the cabinet top by holding the two sides of it,
while moving it upward and backward.
 Removing the Tray Door
(See Fig.2)
1. Eject the disc tray.
(Rotate the screw B counter - clockwise if no supply)
2. Lift up the tray door in the indicated direction
Fig.1
CLASS 1
LASER PRODUCT
Right coverLeft cover
Top cover
Rear cover
Fig.2
B

JVC TH-A35 Specifications

Amplifier Section

power per channel	45 watts
impedance	6 ohms
frequency	1 kHz

Subwoofer

woofer size	16 cm
sustained power capacity	100 W
impedance	10 Ω

Audio Section

weight	4.8 kg
frequency range	25 Hz to 200 Hz
dimensions	202 mm × 330 mm × 341 mm

Video Section

dimensions	92 mm × 97.5 mm × 92 mm
weight	650 g
frequency range	90 Hz to 20 kHz

Tuner Section

FM tuning range	87.50 MHz – 108.00 MHz
AM tuning range	522 kHz – 1 629 kHz
power supply	230 V, 50 Hz
