3.4.10 Removing the power transformer

(See Figs.14 and 15)

• Prior to performing the following procedures, remove the am-

plifier assembly and rear panel.

(1) From the top side of the amplifier assembly, disconnect the

wires from the connectors CN102

and CN151 on the moth-

er board. (See fig.14)

(2) Remove the four screws P attaching the power transform-

er, and take out the power transformer from the amplifier

assembly. (See fig.15)

Reference:

• When attaching the power transformer, attach the screws P

with the barrier. (See fig.15)

• After connect the wires from the connectors CN102

and

CN151, bundle the wire by the wire clamp. (See Fig.14)

• When changing the new power transformer, renew the new

spacer (See fig.15)

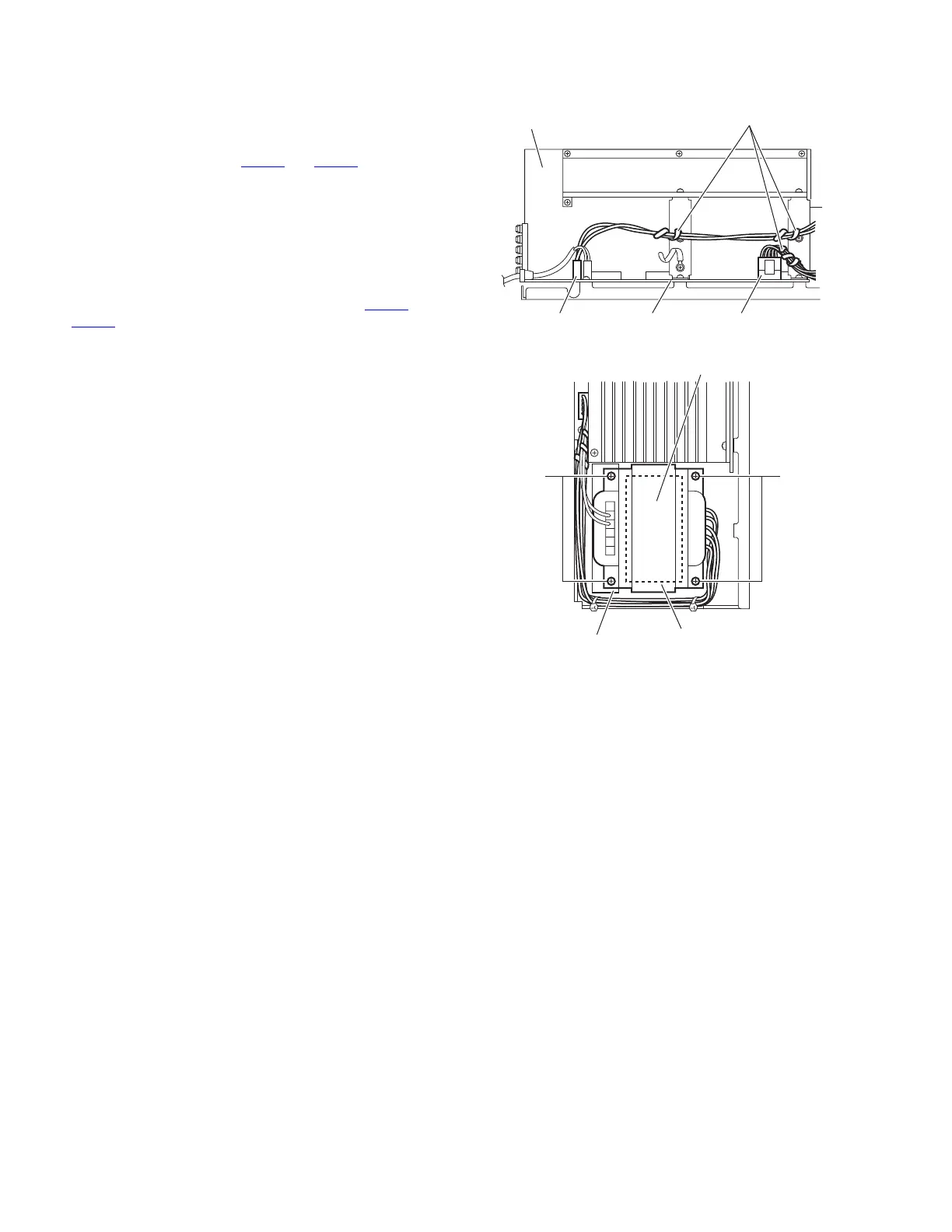

Fig.14

Fig.15

CN151

CN102 Mother board

Wire clamp

Amplifier assembly

Power transformer

Spacer

Barrier
