1-16 (No.MB638)

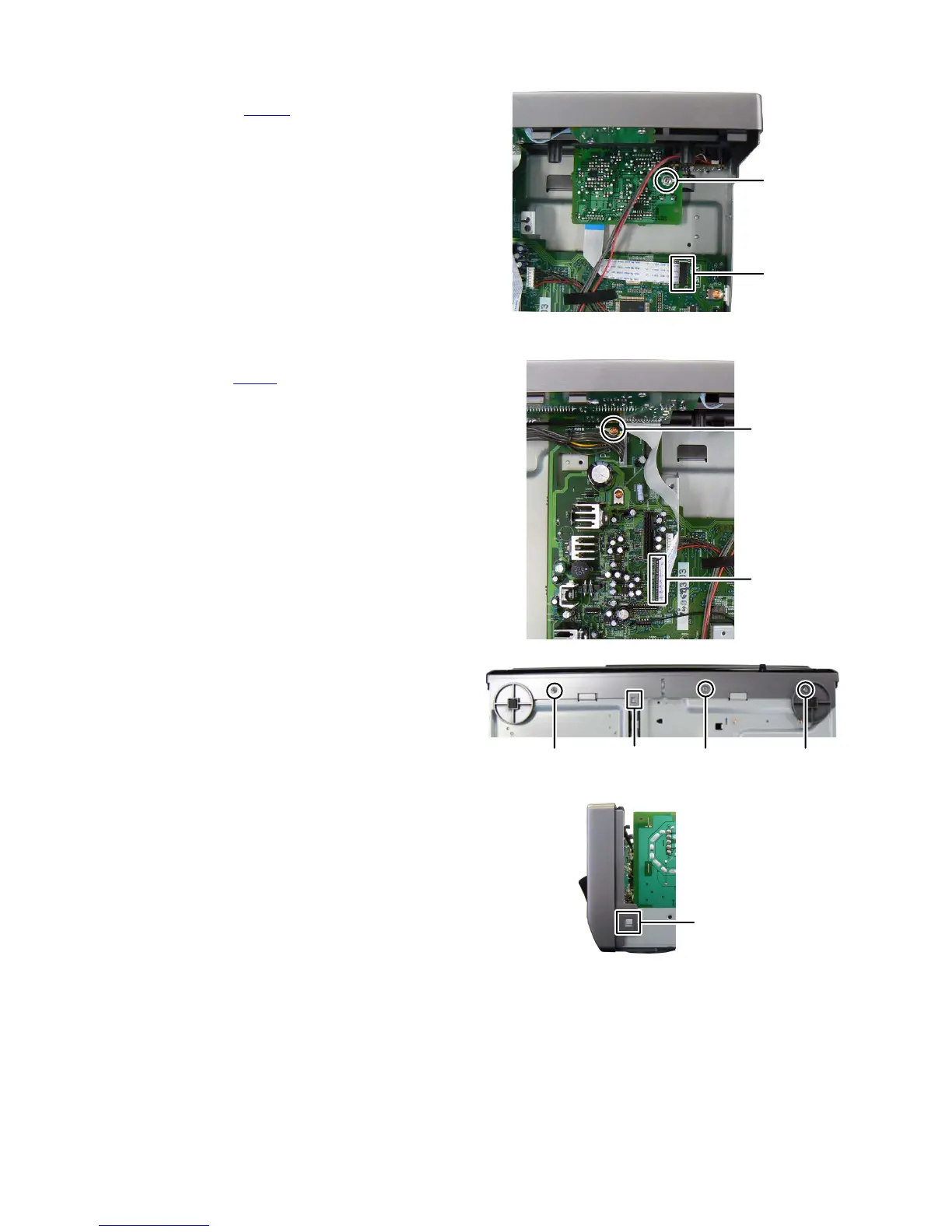

3.1.8 Removing the iPod BOARD assembly (See Fig.14)
(1)
Disconnect the card wire from iPod BOARD assembly
connected to connector CN210
of the MAIN BOARD
assembly.
(2)
Remove the one screw
P
attaching the iPod BOARD
assembly.
Fig.14
3.1.9 Removing the FRONT PANEL assembly (See Fig.15 to 17)
(1) Disconnect the card wire from FRONT PANEL assembly
connected to connector CN211
of the MAIN BOARD as-
sembly. (See Fig.15)
(2) Remove the one screw Q attaching the EARTH WIRE.
(See Fig.15)
(3) Remove the three screws R attaching the bottom side of
FRONT PANEL assembly. (See Fig.16)
(4)
Disengage hook
a
of the bottom side of FRONT PANEL
assembly and hook
b
of the both side of FRONT PANEL
assembly. (See Fig.
16
,
17
)
Fig.15
Fig.16
Fig.17
P
CN210
CN211
Q
hook a
RRR
hook
b
To Next Page
