3.2 Front panel assembly section
• Prior to performing the following procedures, remove the metal cover and front panel assembly.
3.2.1 Removing the HP board
(See Fig.1)
(1) From the inside of the front panel assembly, remove the
two screws A attaching the HP board.
(2) Take out the HP board from the front panel assembly.
3.2.2 Removing the KEY board
(See Fig.1)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
three screws B attaching the KEY board.
(2) Take out the KEY board from the front panel assembly.

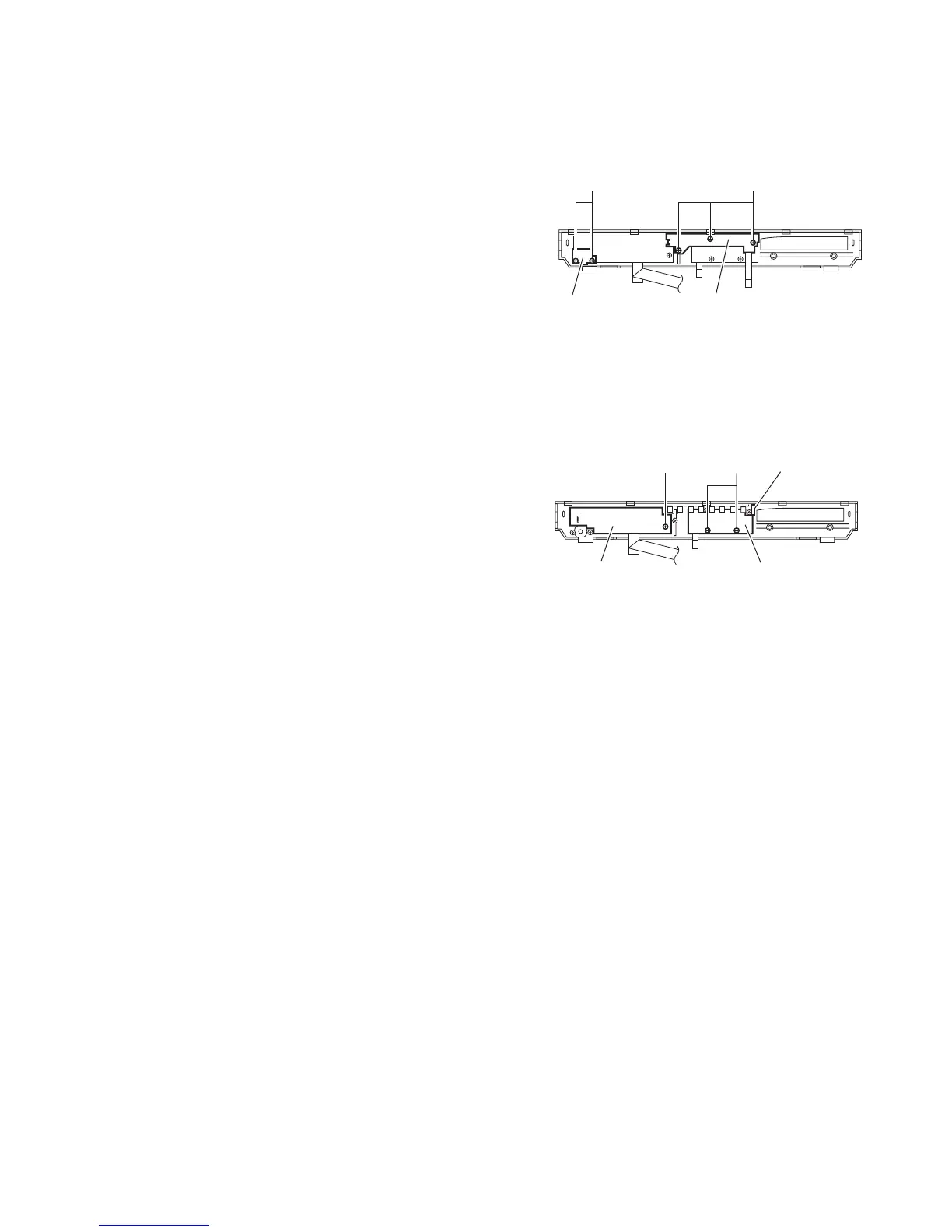

Fig.1
3.2.3 Removing the FL board
(See Fig.2)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
screw C attaching the FL board.
(2) Take out the FL board from the front panel assembly.
3.2.4 Removing the MIC and LED boards
(See Fig.2)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
two screws D attaching the MIC board.
(2) Take out the MIC and LED boards from the front panel as-
sembly.
Fig.2
B
HP board KEY board
A
D
LED board
FL board MIC board
C
