Connections
9

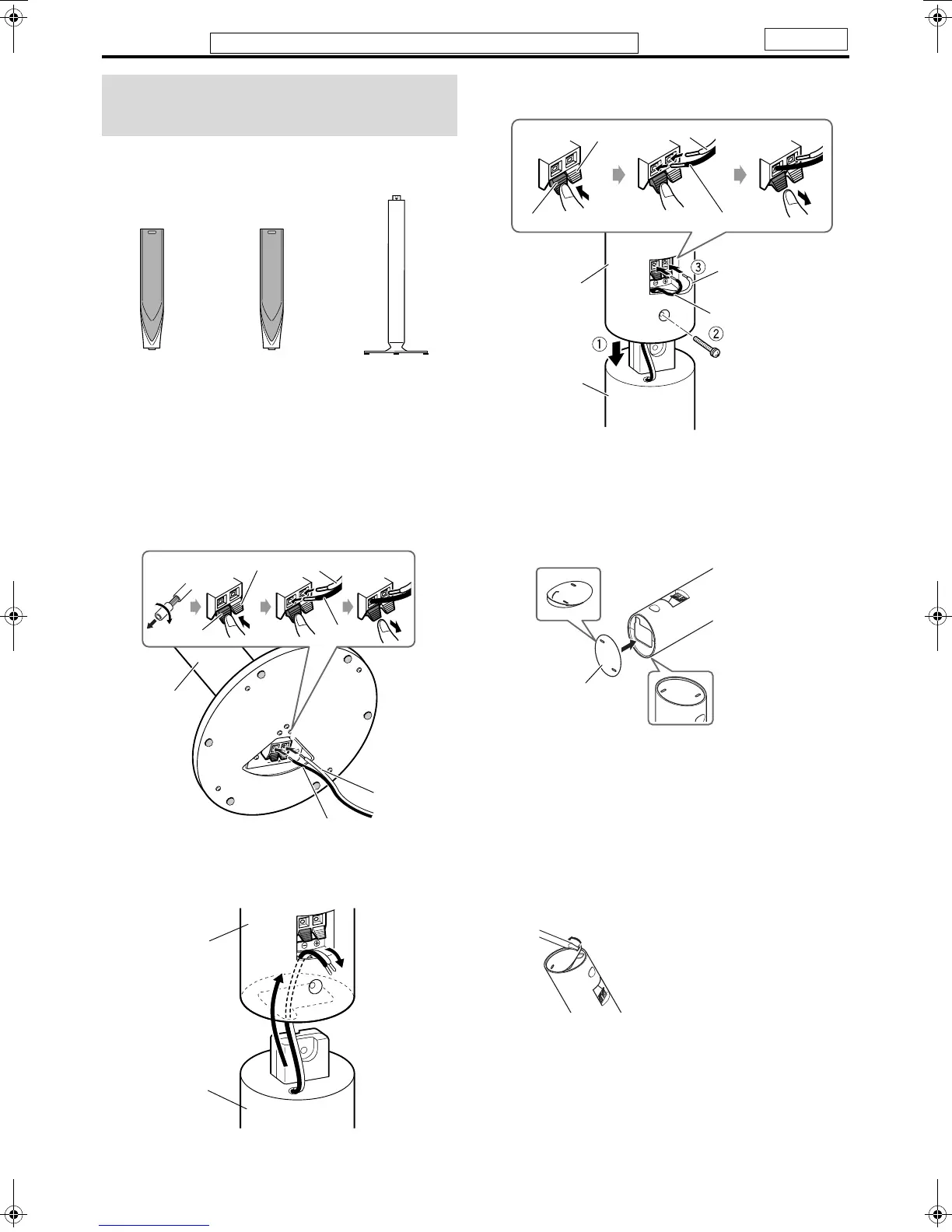

The following procedure explains the front speaker assembly. The
assembly of both the front and surround speakers are done in the
same manner.
Before assembling —
Prepare a Phillips screwdriver (not supplied).
Take care not to drop any component part while assembling;
otherwise, it may cause damage to the floor or injury.
1
2
3
When installing the front and surround speakers on the
wall;
Attach the supplied bottom cover on the bottom of each speakers
as illustrated.
Be sure to have them installed on the wall by a qualified
personnel.
DO NOT install the satellite speakers on the wall by yourself to
avoid unexpected damage from their falling off the wall due to
incorrect installation or weakness in wall structure.
Care must be taken in selecting a location for speaker installation
on a wall. Injury to personnel or damage to equipment may result
if the speakers installed interfere with daily activities.
If attaching the stand to the speaker, remove the bottom cover by
inserting a flat-pointed tool into the hole of the bottom cover.
Assembling the front and
surround speakers
Stand (×4)
Front speaker
(×2)
Surround speaker
(×2)
Stand
Black
White
Black
Black
White
Red
Speaker
Stand
Stand
Screw (supplied)
Black
Red
White
Black
Speaker
White
Black
Bottom
cover
This page is for
TH-S66
Do not connect the power cord until all other connections have been made.
TH-S66-S55[B].book Page 9 Friday, January 14, 2005 10:40 PM
