JVC TH-SW9 User Manual

1-10 (No.MB260)

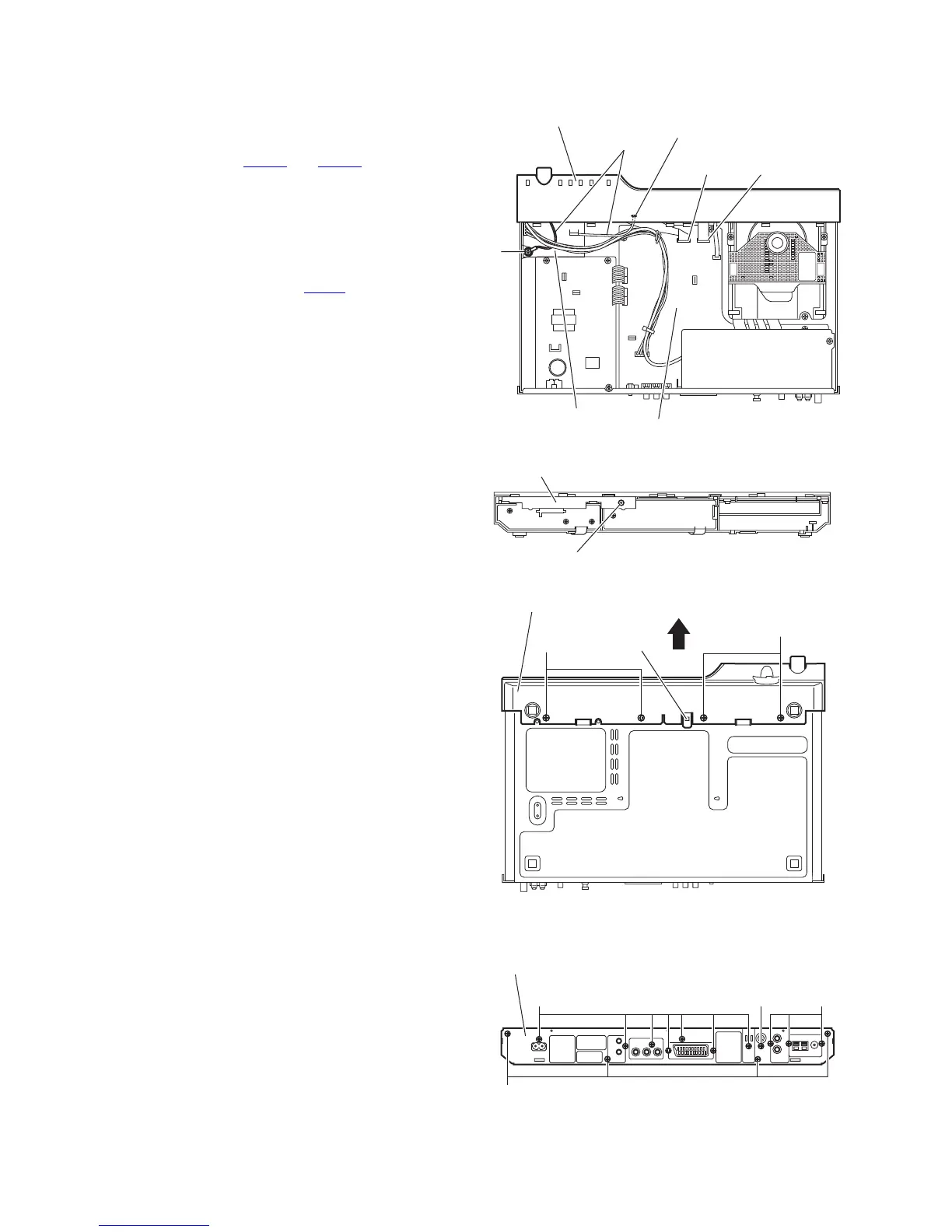

3.1.2 Removing the front panel assembly
(See Figs.4 to 6)
• Prior to performing the following procedure, remove the top
cover.
(1) From the top side of the main body, disconnect the parallel
wires from the connectors CN451
and CN452 on the main
board. (See Fig.4)
(2) Remove the screw C attaching the earth wire to the RF
module. (See Fig.4)
Reference:
When attaching the screw C, attach the earth wire with
it. (See Fig.4)
(3) Disconnect the earth wire from the TP701
on the TX ant
board. (See Figs.4 and 5)
(4) From the bottom side of the main body, remove the four
screws D attaching the front panel assembly. (See Fig.6)
(5) Remove the front panel assembly in the direction of the ar-
row while releasing the joint a. (See Fig.6)
Fig.4
Fig.5
Fig.6
3.1.3 Removing the rear panel
(See Fig.7)
• Prior to performing the following procedure, remove the top
cover.
(1) From the back side of the main body, remove the four
screws E, screw F and ten screws G attaching the rear
panel.
Fig.7
C
CN452
Earth wire
Front panel assembly
TP701
CN451
Main board
RF module
TX ant board
TP701
D
D
Joint a
Front panel assembly
E
G
Rear panel
FG
