(No.MB260)1-9
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the top cover
(See Figs.1 to 3)
(1) From the both sides of the main body, remove the four
screws A attaching the top cover. (See Figs.1 and 2)
(2) From the back side of the main body, remove the three
screws B attaching the top cover. (See Fig.3)
(3) Lift the rear section of the top cover upward while extend-
ing the lower sections of the top cover. (See Fig.3)

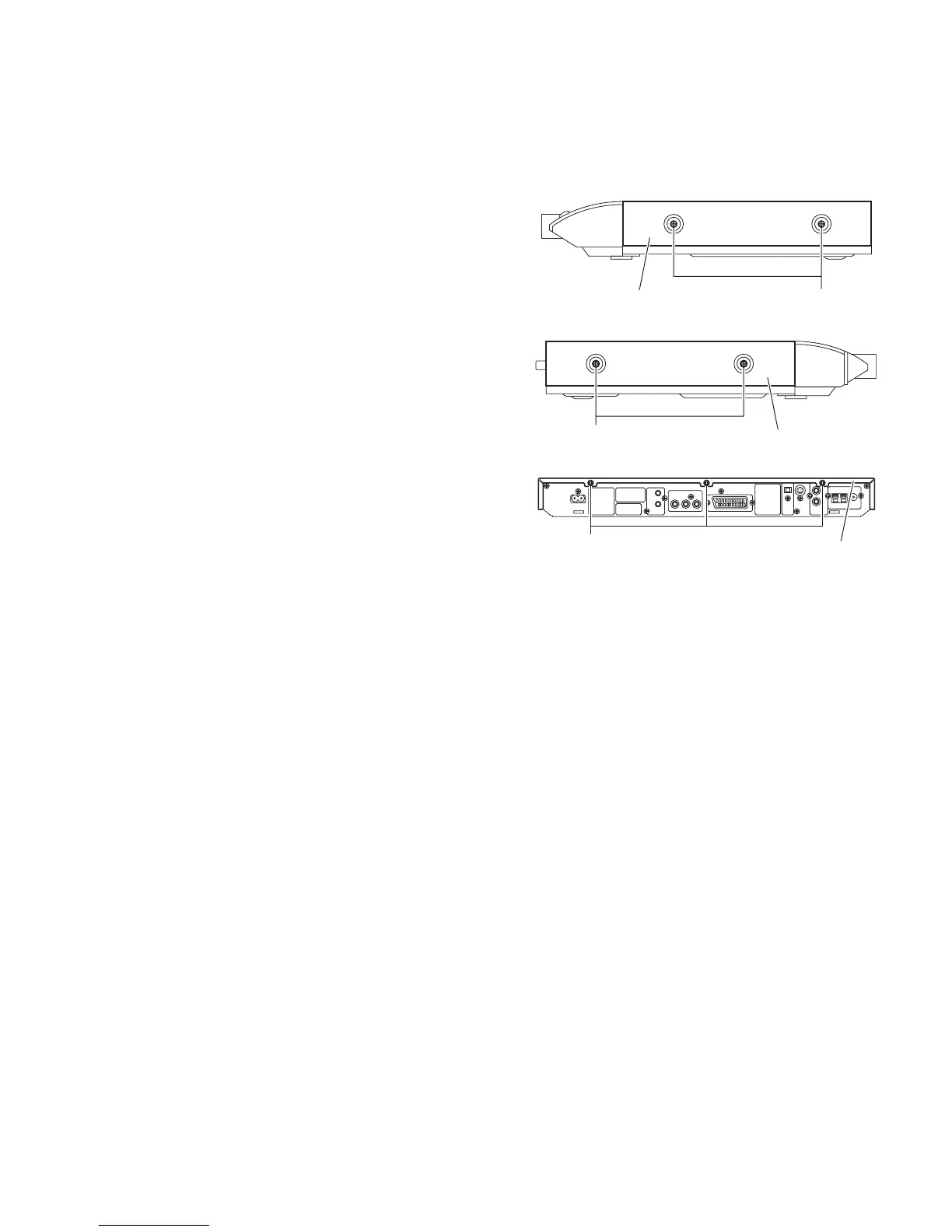

Fig.1
Fig.2
Fig.3
A
Top cover
A
Top cover
B
Top cover
To Next Page
