3.1.9 Removing the RF module
(See Fig.14)
• Prior to performing the following procedures, remove the top
cover and front panel assembly.
(1) From the top side of the main body, disconnect the wire
from the connector on the RF module.
(2) Remove the screw Q attaching the RF module to the main
body, and take out the RF module.

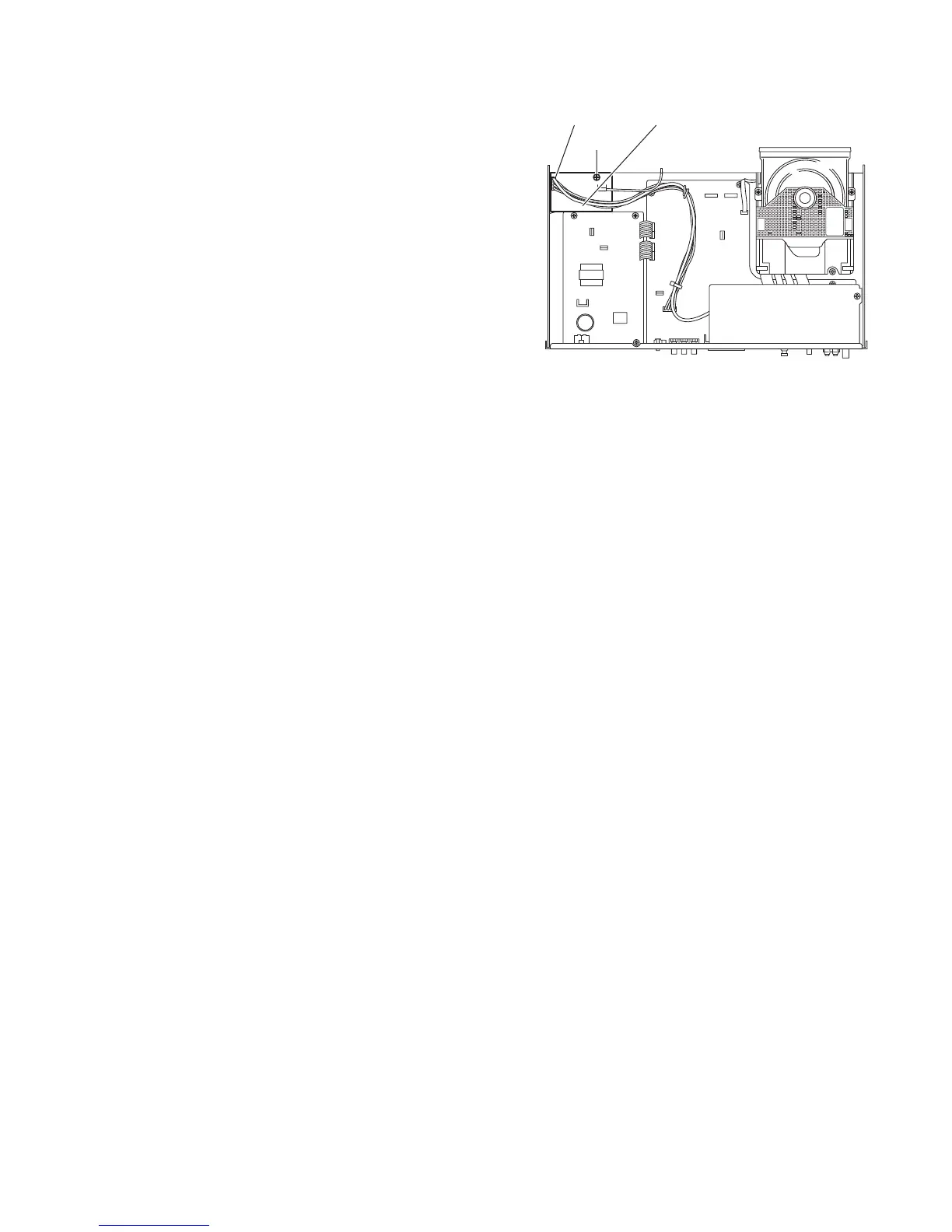

Fig.14
Q
Connector RF module
To Next Page
