(No.MB067)1-31
3.3.7 Removing the power transformer
(See Figs.13 and 14)
• Remove the rear panel.
• Remove the amplifier assembly.
• Remove the speaker terminal board.
(1) Remove the tie band bundling the power cord and power
transformer wire. (See Fig.13.)
(2) Disconnect the wire from the connector CN151
on the
mother board. (See Fig.13.)
(3) Remove the five screws L attaching the mother board.
(See Fig.13.)
(4) Take out the mother board together the heat sink.
(5) Remove the four screws M attaching the power transform-
er. (See Fig.14.)
(6) Take out the power transformer from the rear chassis.

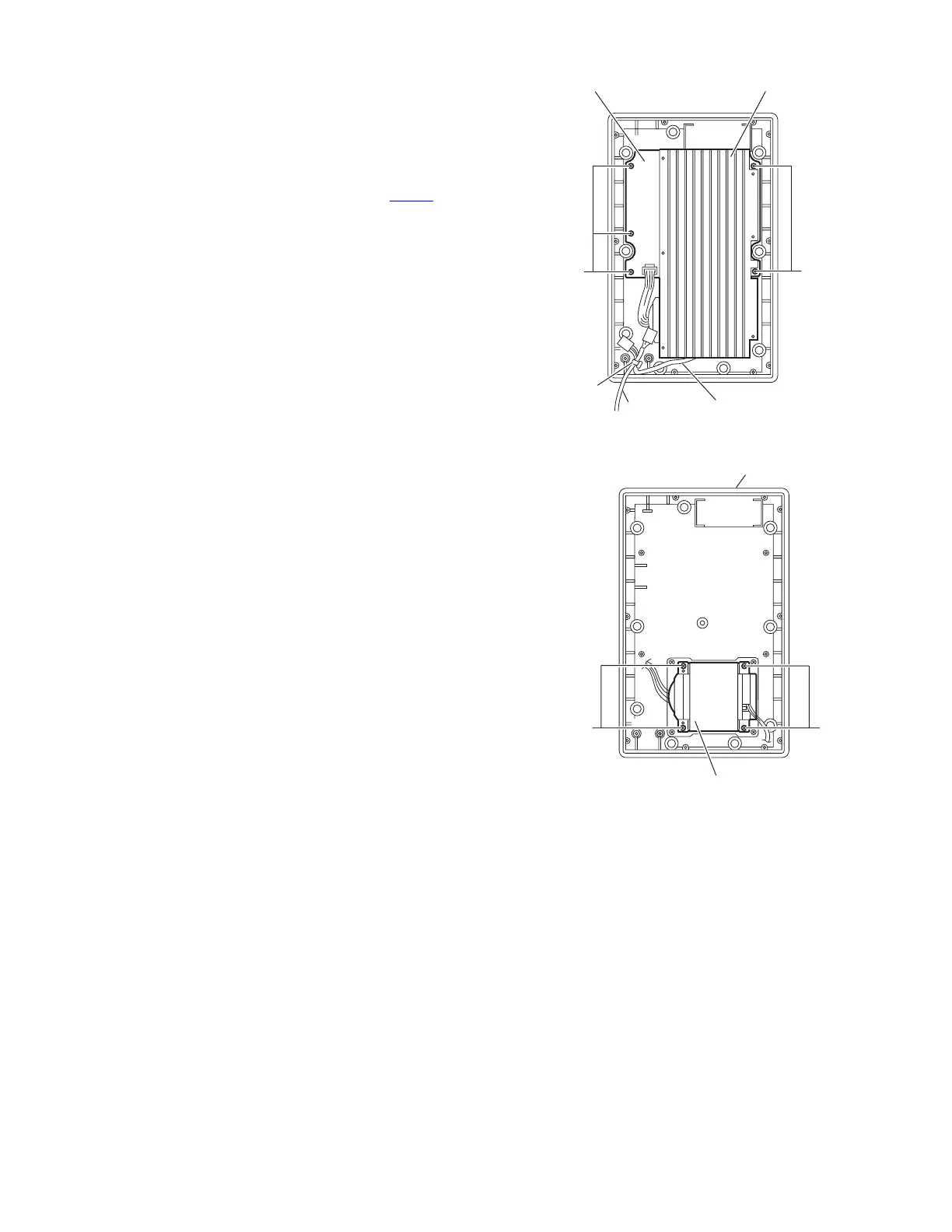

Fig.13
Fig.14
CN151
Heat sinkMother board
Power transformer wirePower cord
Tie band
LL
Rear chassis
M
M
Power transformer
