䡵 Setting a mask area
1. Select a MASK No., use the SELECTOR switch (H, I) to select AONB
and press the SET button (If AOFFB is selected, private mask will not
be displayed.)
The PRIVATE MASK EDIT screen is displayed.
2.
Editing the mask
Edit left/top or right/bottom of mask respectively.
Memo:
● Use SET button to switch between left/top or right/bottom of editing of
mask.
● Use the SELECTOR switch (H, I) to edit the left and right position
(horizontal width) of the mask.
● Use the SELECTOR switch (J, K) to edit the top and bottom position
(height) of the mask.
●
䡵 Completion of mask setting
1. Press the MENU button
The mask area of the selected number is saved and the screen returns to
the top menu (PRIVATE MASK screen).
Select a mask number and set the mask area in all the desired masks (from
MASK No.1 to MASK No.4).
Memo:
● Maximum 4 masks can be set.

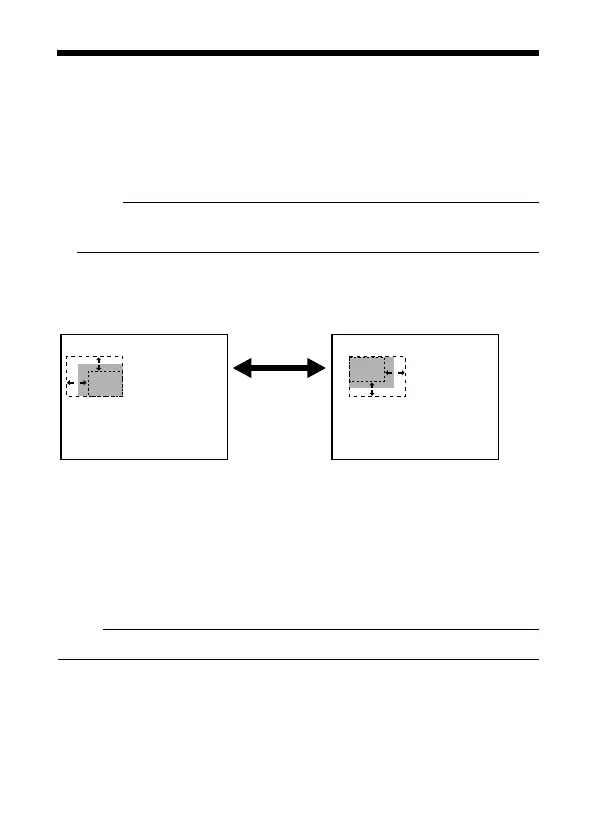

MASK EDIT No. 1
<MENU>RETURN <SET>MODEQN
MASK EDIT No. 1
<MENU>RETURN <SET>MODEPO
PRIVATE MASK EDIT screen PRIVATE MASK EDIT screen
Use SET
button to
switch
