34
Setting

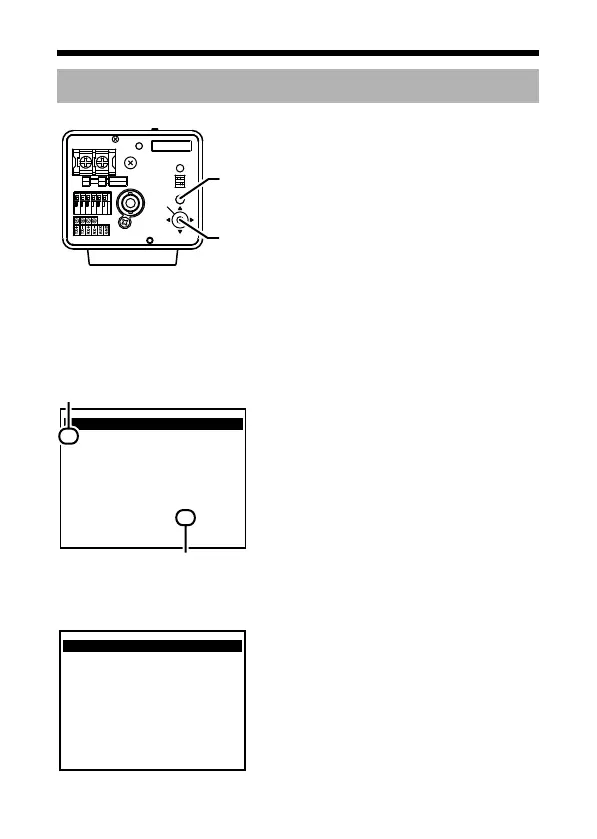

1. Press the MENU button
The MENU screen is displayed.
2.
Press the SELECTOR switch up and down (
J
,
K
) to set the cursor (
E
)
to a desired menu.
3.
Press the SET button
The selected sub-menu screen is displayed.
Menu basic operation
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY(E TYPE)
SEE INSTRUCTION
MANUAL
POWER
VIDEO OUT
SELECTOR
SET
MENU
INT LL
ONRX TERM-OFF
+
1
2
DC12V d
AC24V H
MENU button
SET button and SELECTOR switch
MENU
E AUX FUNCTION..
TITLE/VIDEO.. SCENE A
DISPLAY..
LL ADJUSTMENT..
PRIVATE MASK..
COMMUNICATION..
MAINTENANCE..
FACTORY SETTINGS..
<MENU>EXIT <SET>SUB MENU
Cursor
Sub-menu
(indicated by... at the end.)
AUX FUNCTION
E AUX MODE B&W OUT
INPUT POLARITY - - -
<MENU>RETURN
