TM-1500PS |

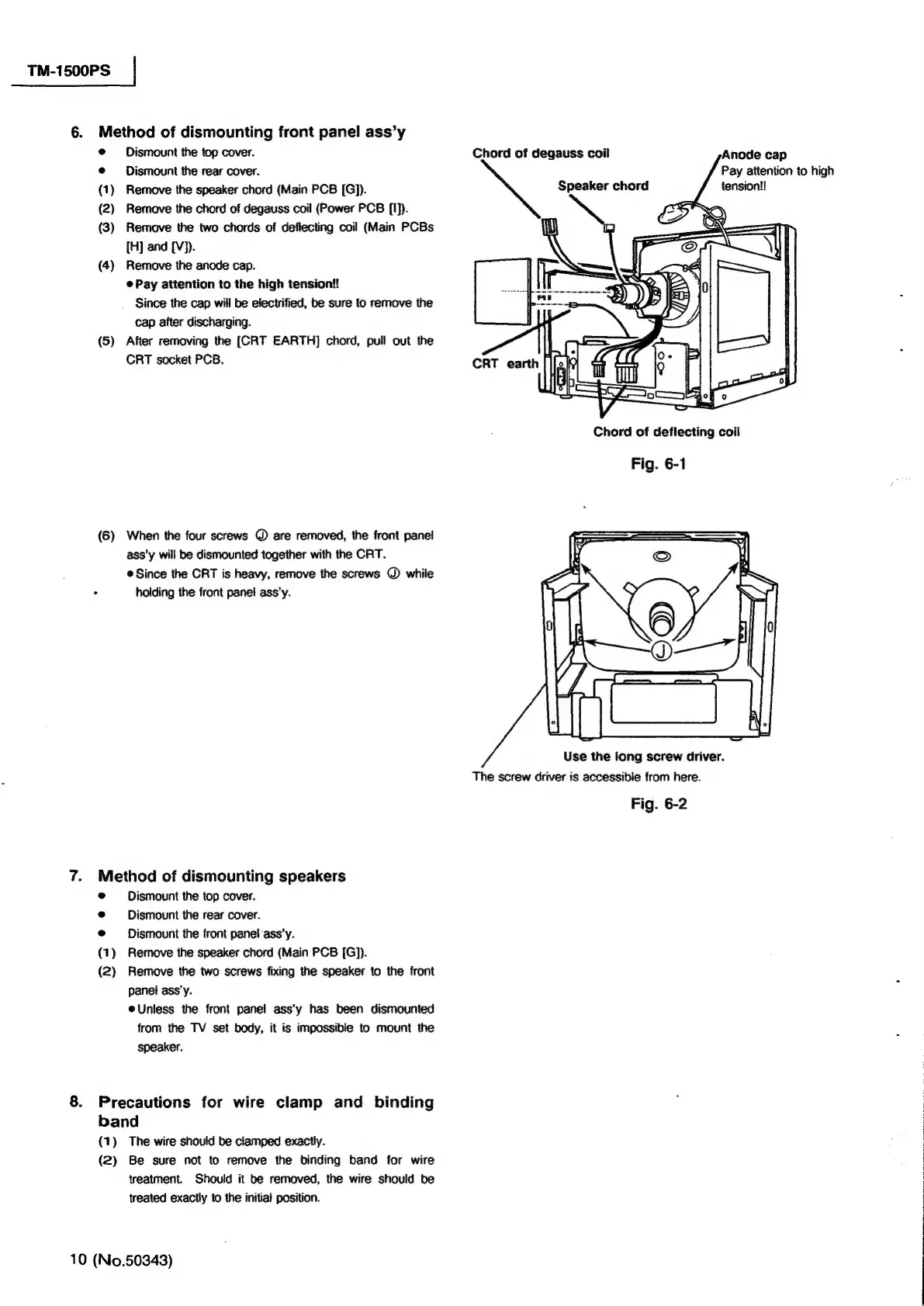

6. Method of dismounting front panel ass’y
e
e
(1)
(2)
(3)
(4)
(5)
(6)
Dismount the top cover.
Dismount the rear cover.
Remove the speaker chord (Main PCB [G]).
Remove the chord of degauss coil (Power PCB [I]).
Remove the two chords of deflecting coil (Main PCBs
[H] and [V}).
Remove the anode cap.
Pay attention to the high tension!
Since the cap will be electrified, be sure to remove the
cap after discharging.
After removing the (CRT EARTH] chord, pull out the
CRT socket PCB.
When the four screws @ are removed, the front panel
ass’y will be dismounted together with the CRT.
@Since the CRT is heavy, remove the screws @ while
holding the front panel ass'y.
7. Method of dismounting speakers
e
°
°
(1)
(2)
Dismount the top cover.
Dismount the rear cover.
Dismount the front panel ass’y.
Remove the speaker chord (Main PCB [G)).
Remove the two screws fixing the speaker to the front
panel ass’y.
e@Unless the front panel ass’y has been dismounted
from the TV set body, it is impossible to mount the
speaker.
8. Precautions for wire clamp and binding
band
(1) The wire should be clamped exactly.
(2) Be sure not to remove the binding band for wire
treatment. Should it be removed, the wire should be
treated exactly to the initial position.
10 (No.50343)
Chord of degauss coil Anode cap
Pay attention to high
Speaker chord tension!
Chord of deflecting coil
Fig. 6-1
Use the long screw driver.
The screw driver is accessible from here.
Fig. 6-2
}
