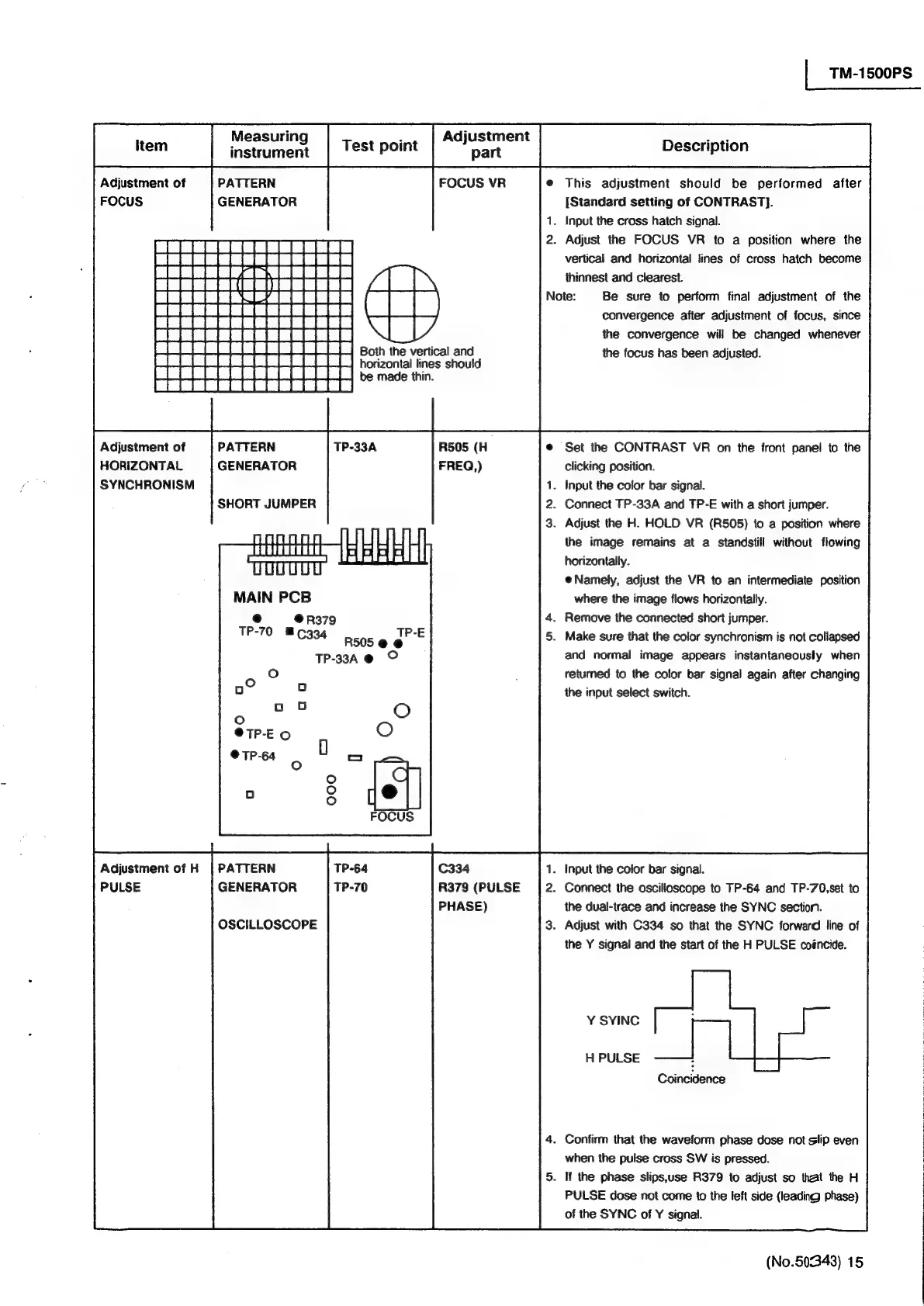

JVC TM-1500PS

TM-1500PS
Measuring : Adjustment ee
Adjustment of PATTERN FOCUS VR @ This adjustment should be performed after
FOCUS GENERATOR [Standard setting of CONTRAST].
1. Input the cross hatch signal.
2. Adjust the FOCUS VR to a position where the
vertical and horizontal lines of cross hatch become
thinnest and clearest.
Note: Be sure to perform final adjustment of the
convergence after adjustment of focus, since
the convergence will be changed whenever
Both the vertical and the focus has been adjusted.
PEE horizontal lines should
Pt TT TTT be made thin.
PET Te yi Tt yy
;
Adjustment of PATTERN o R505 (H Set the CONTRAST VR on the front panel to the
HORIZONTAL GENERATOR FREQ,) clicking position.
SYNCHRONISM . Input the color bar signal.
SHORT JUMPER . Connect TP-33A and TP-E with a short jumper.
. Adjust the H. HOLD VR (R505) to a position where
the image remains at a standstill without flowing
horizontally.
eNamely, adjust the VR to an intermediate position
MAIN PCB where the image flows horizontally.
R379 . Remove the connected short jumper.
TP-70 ™ C334 R505 @ a P . Make sure that the color synchronism is not collapsed
TP-33A @ © and normal image appears instantaneously when
returned to the color bar signal again after changing
the input select switch.
Adjustment of H | PATTERN ~ C334 . Input the color bar signal.
GENERATOR R379 (PULSE . Connect the oscilloscope to TP-64 and TP-70,set to
PHASE) the dual-trace and increase the SYNC section.
OSCILLOSCOPE . Adjust with C334 so that the SYNC forward line of
the Y signal and the start of the H PULSE coéncide.
Y SYINC
H PULSE
Coincidence
. Confirm that the waveform phase dose not slip even
when the pulse cross SW is pressed.
. If the phase slips,use R379 to adjust so that the H
PULSE dose not come to the left side (leading phase)
of the SYNC of Y signal.
(No.502343) 15
