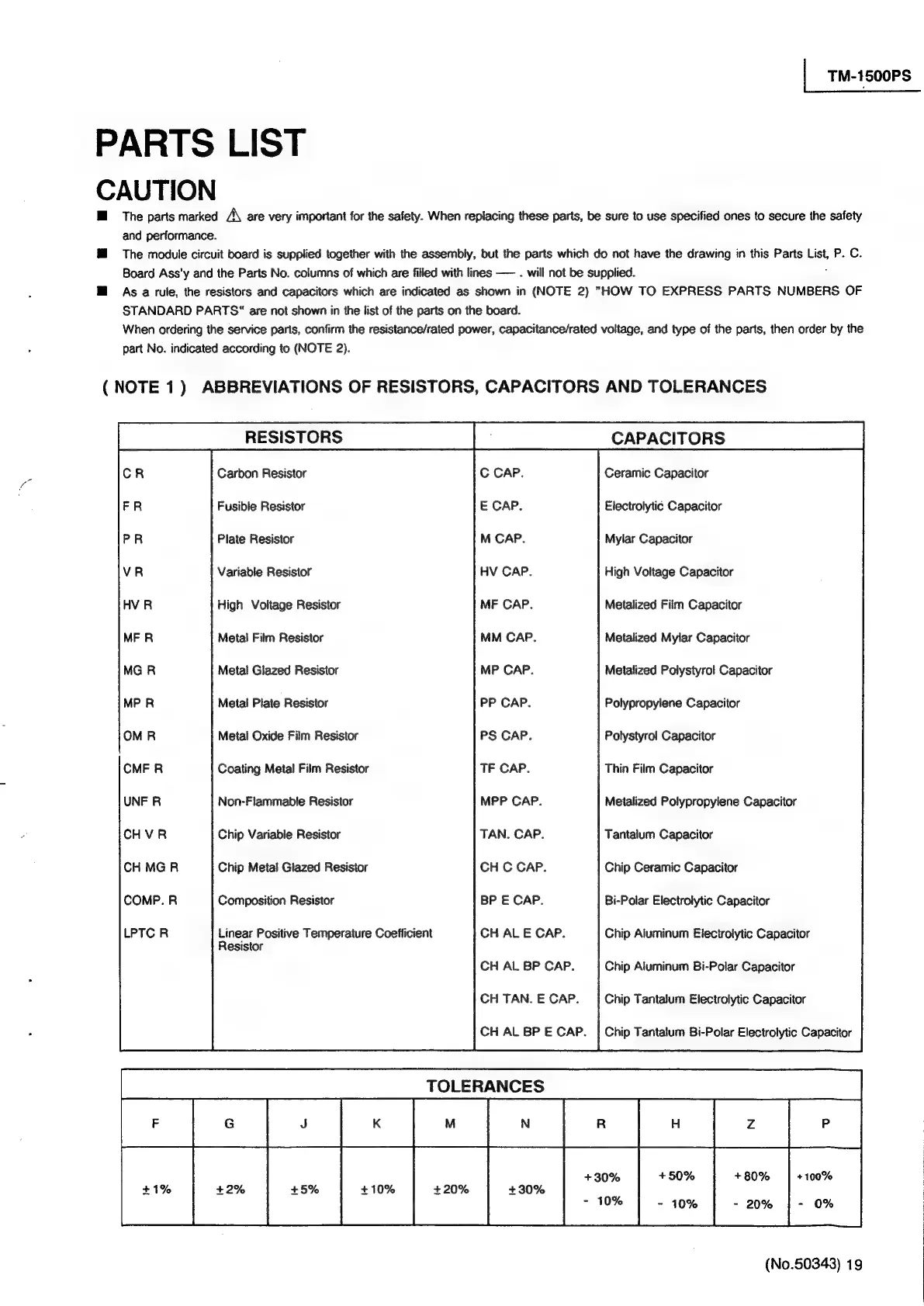

JVC TM-1500PS

PARTS LIST
CAUTION
| TM-1500PS
The parts marked A are very important for the safety. When repiacing these parts, be sure to use specified ones to secure the safety
and performance.
@ The module circuit board is supplied together with the assembly, but the parts which do not have the drawing in this Parts ad P. C.
Board Ass’y and the Parts No. columns of which are filled with lines —— . will not be supplied.
HM As atule, the resistors and capacitors which are indicated as shown in (NOTE 2) "HOW TO EXPRESS PARTS NUMBERS OF
STANDARD PARTS‘ are not shown in the list of the parts on the board.
When ordering the service parts, confirm the resistance/rated power, capacitance/rated voltage, and type of the parts, then order by the
part No. indicated according to (NOTE 2).
(NOTE 1) ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORS CAPACITORS
Carbon Resistor
Fusible Resistor
Plate Resistor
Variable Resistor
High Voitage Resistor
Metal Film Resistor
Metal Glazed Resistor
Metal Plate Resistor
Metal Oxide Film Resistor
Coating Metal Film Resistor
Non-Flammable Resistor
Chip Variable Resistor
Chip Meta! Giazed Resistor
Composition Resistor
Linear Positive Temperature Coefficient
Resistor
C CAP.
E CAP.
M CAP.
HV CAP.
MF CAP.
MM CAP.
MP CAP.
PP CAP.
PS CAP.
TF CAP.
MPP CAP.
TAN. CAP.
CH C CAP.
BP E CAP.
CH AL E CAP.
CH AL BP CAP.
CH TAN. E CAP.
CH AL BP E CAP.
Ceramic Capacitor
Electrolytic Capacitor
Mylar Capacitor
High Voltage Capacitor
Metalized Film Capacitor
Metalized Myiar Capacitor
Metalized Polystyrol Capacitor
Polypropylene Capacitor
Polystyrol Capacitor
Thin Film Capacitor
Metalized Polypropylene Capacitor
Tantalum Capacitor
Chip Ceramic Capacitor
Bi-Polar Electrolytic Capacitor
Chip Aluminum Electrolytic Capacitor
Chip Aluminum Bi-Polar Capacitor
Chip Tantalum Electrolytic Capacitor
Chip Tantalum Bi-Polar Electrolytic Capacitor
TOLERANCES
+30% +50% + 80% +100%
$1% +2% +5% + 10% +20% +30%
~ 10% - 10% - 20% | - 0%
