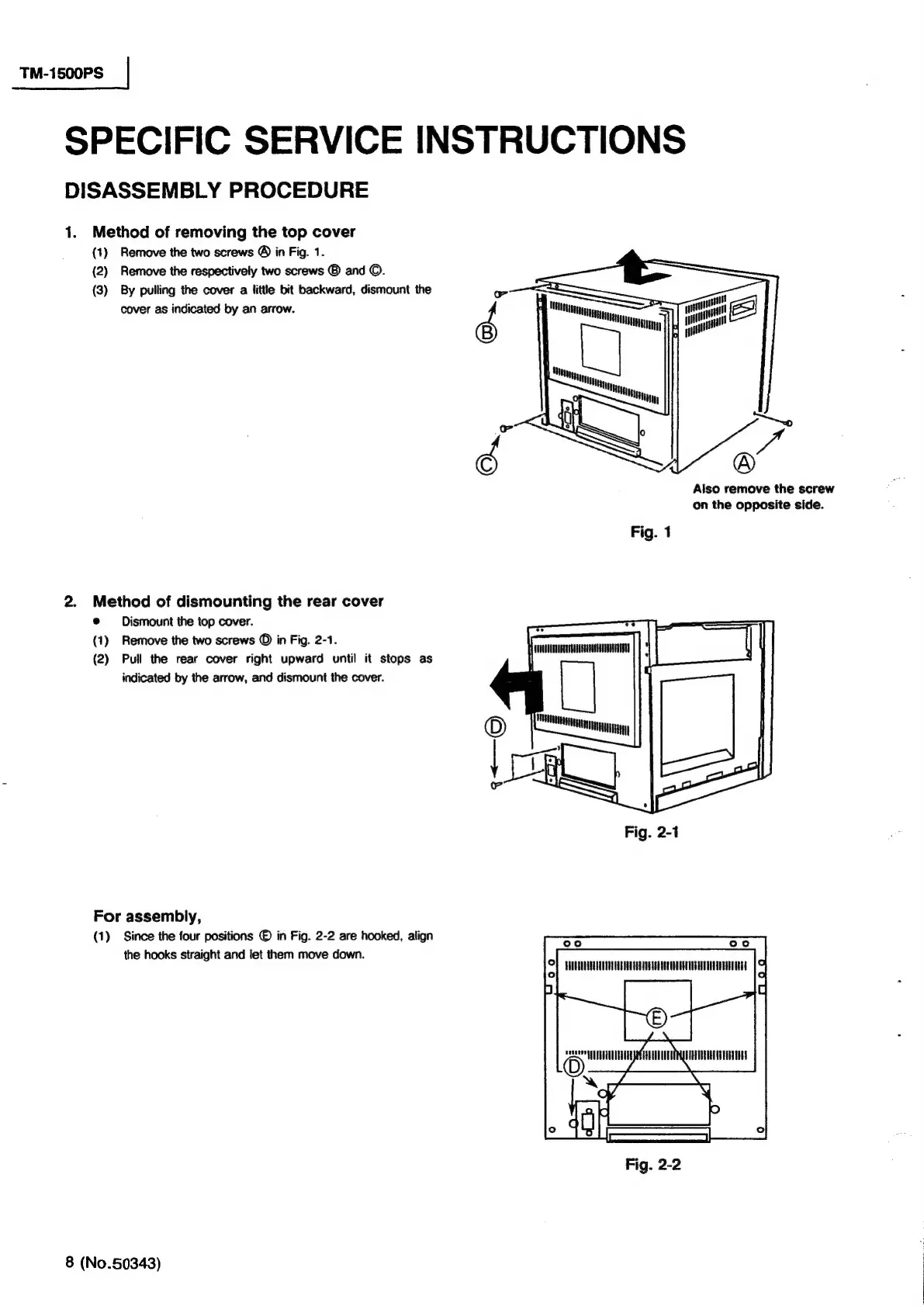

SPECIFIC SERVICE INSTRUCTIONS
DISASSEMBLY PROCEDURE
1.
Method of removing the top cover
(1)
(2)
(3)
Remove the two screws © in Fig. 1.
Remove the respectively two screws © and ©.
By pulling the cover a little bit backward, dismount the
cover as indicated by an arrow.
Method of dismounting the rear cover
e
(1)
(2)
Dismount the top cover.
Remove the two screws © in Fig. 2-1.
Pull the rear cover right upward until it stops as
indicated by the arrow, and dismount the cover.
For assembly,
(1) Since the four positions © in Fig. 2-2 are hooked, align
the hooks straight and let them move down.
8 (No.50343)
gee|
Also remove the screw
on the opposite side.
