JVC TM-H1700GU - Color Monitor - Page 16

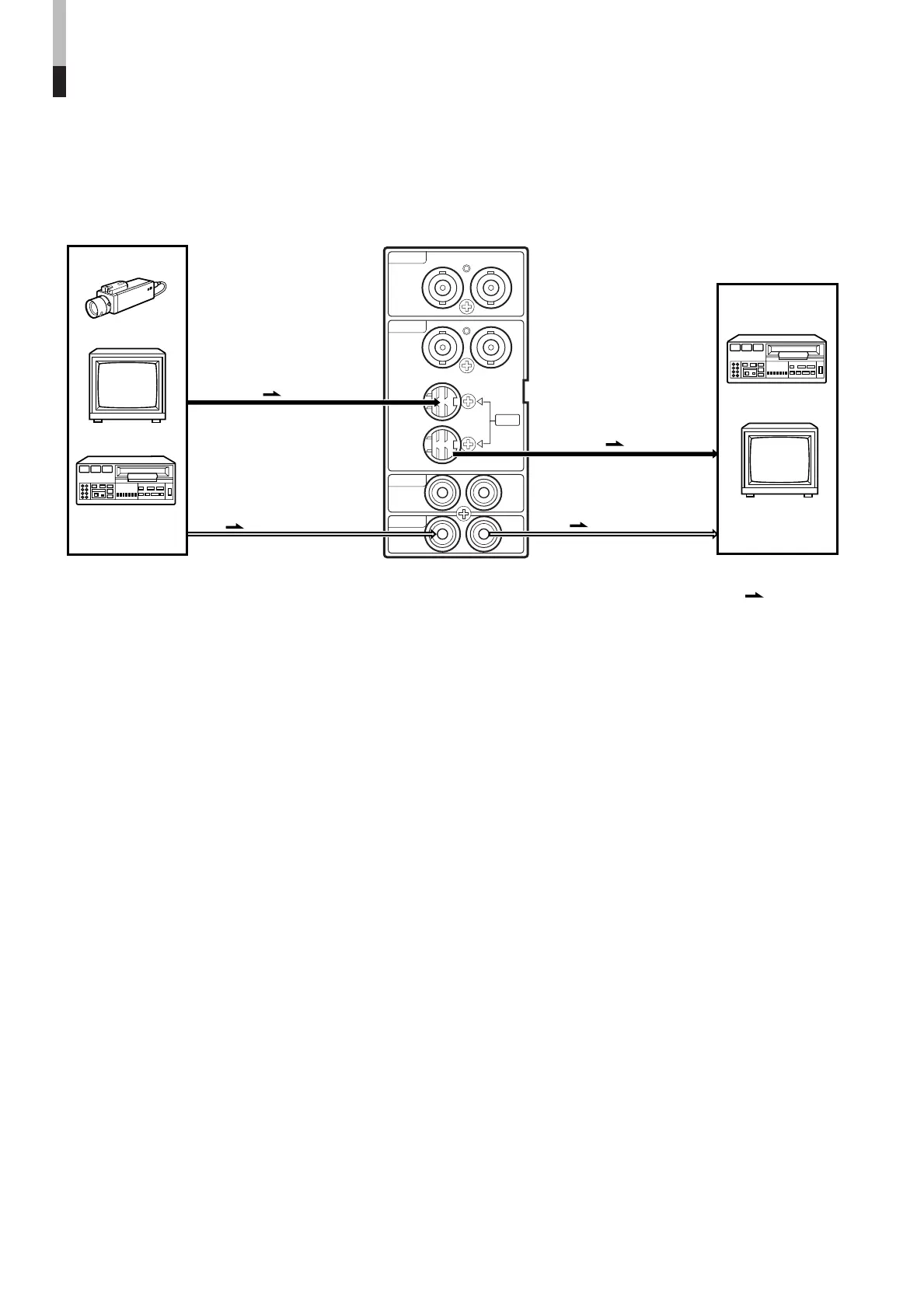

 VIDEO B (Y/C) Connection Example (Select Input B (Y/C))
VIDEO A
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
Video Camera
Video Monitor
VCR
Y/C (S-video)
(Y/C (S-video) signal cable)
Audio
(Audio signal cable)
Audio
(Audio signal cable)
Y/C (S-video)
(Y/C (S-video) signal cable)
Video Monitor
VCR
BASIC CONNECTION EXAMPLE
(cont’d)
: Signal Flow
