CONTROLS AND FEATURES (cont’d)
6
Main power switch
Press the switch to turn the main power ON or OFF. When
the main power is ON, the power indicator on the front panel
lights in orange and the monitor enters the stand-by mode.
I : ON : OFF

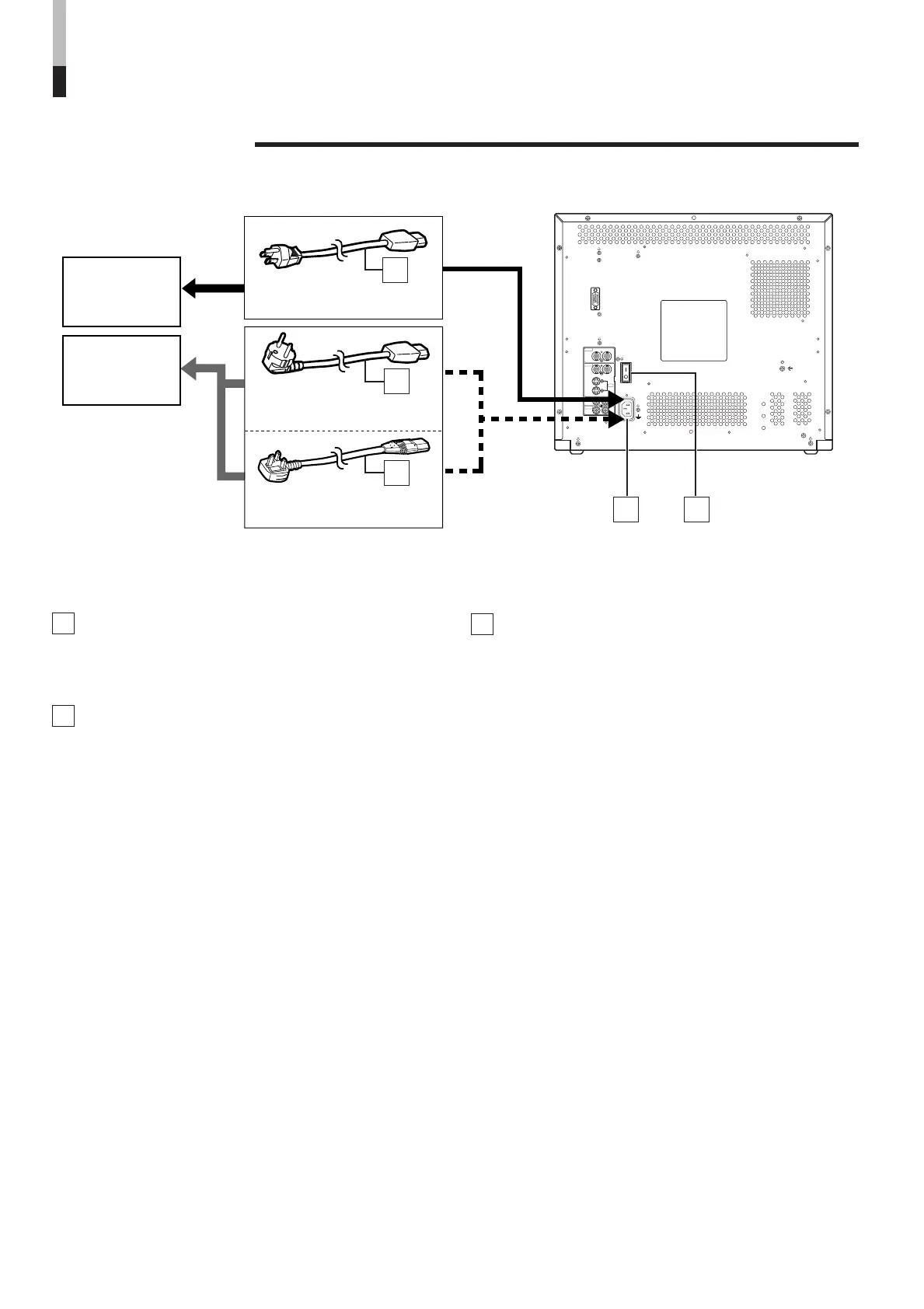

AC inlet [AC IN]
Power input connector. Connect the provided AC power cord
( to an AC outlet (120 V AC or 230 V AC, 50 Hz/60 Hz).
To AC outlet
(230 V AC,
50 Hz/60 Hz)
For the United Kingdom
For Europe
Power cord
Connects the provided power cord (120 V AC or 230 V AC,
50 Hz/60 Hz) to the AC IN connector *.
Caution:
In North America (USA and Canada), this monitor comes
with one power cable. In Europe and the United Kingdom,
two power cables are provided (one for use in continental
European countries and the other for the UK). Be sure to
use the power cable that is appropriate for the AC outlets
used in your region. If none of the power cables provided
is suitable, please contact your dealer or qualified service
personnel to obtain the correct type of power cable.
To AC outlet
(120 V AC,
50 Hz/60 Hz)
For U.S.A. and Canada
17
18
19
(Rear view of
TM-H1900G shown)
