(No.MB412)1-7
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the Rear cover assembly
(See Fig.1 to 5)
(1) Remove the two screws A, the two screws B on the back
of the body.
(2) Remove the four screws D on each side of the body.
(3) Remove the two screws E on the bottom of the body.
(4) Move the front panel assembly in the direction of the arrow
and remove. Disconnect the wire from connector CN901
on the transformer board and FM-ANT connector CN203
on the main board.
Caution:
When reassembling, set the joint a on the right and left side to
the groove, and move.

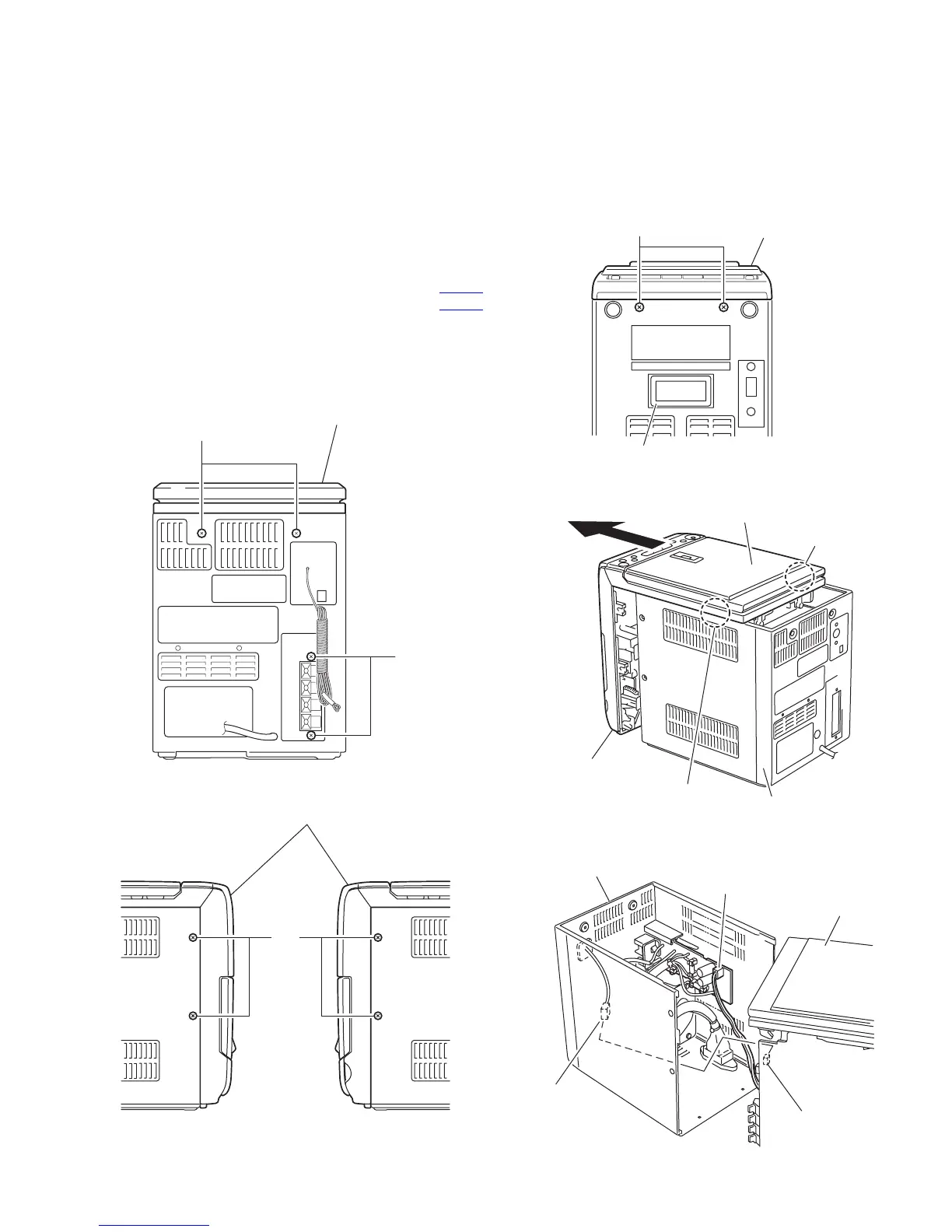

Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
A
B
CD mechanism assembl
D
Front panel assembly
E
Front panel assembly
Rear cover assembly
Joint a
Joint a
Front panel assembly
CD mechanism assembly
Rear cover assembly
CN901
Front panel assembly
Rear cover assembly
Transformer board
Main board
CN203
FM-ANT
To Next Page
