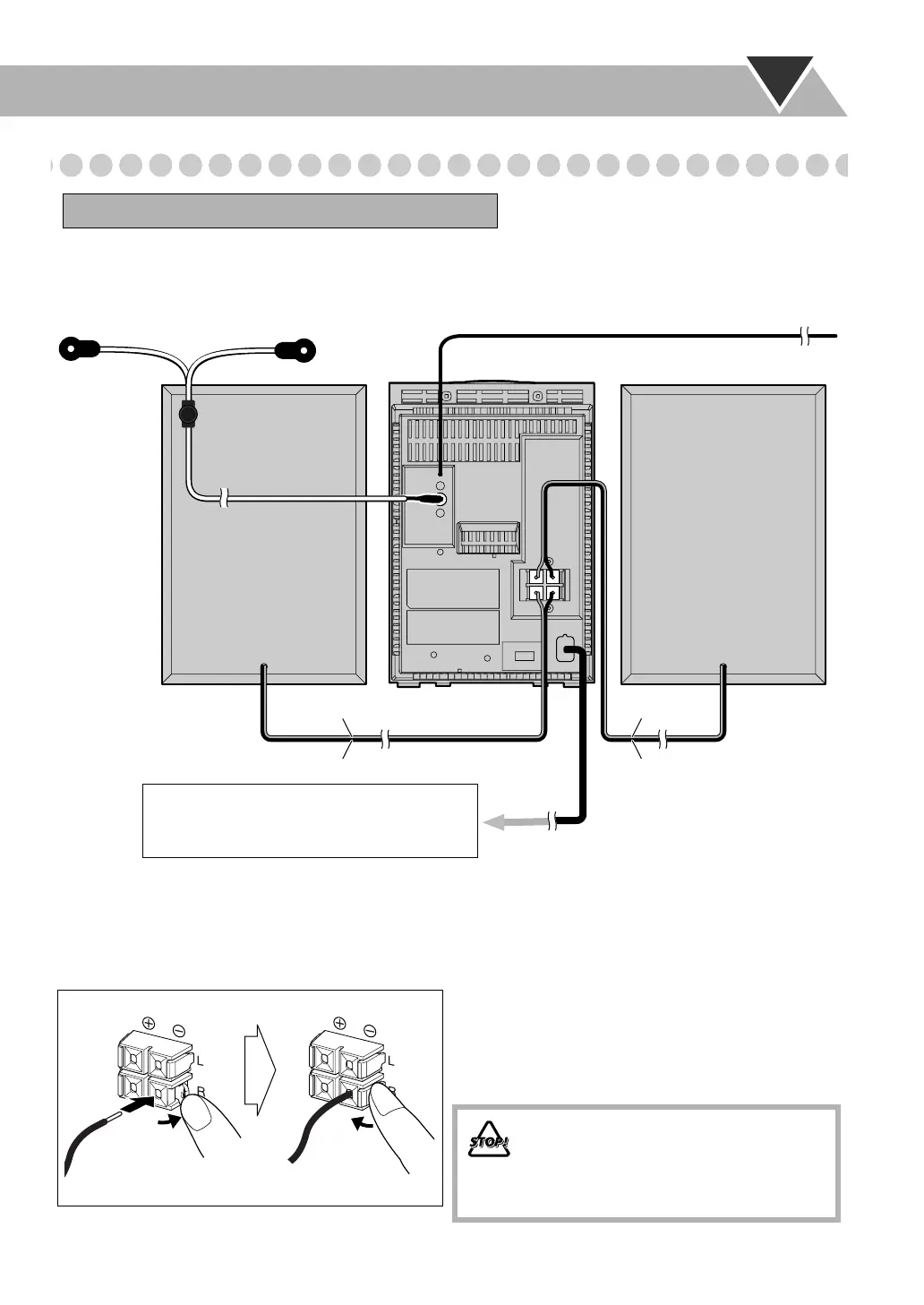

Step 3: Connections
To a wall outlet
Plug in the System only after all connections
are complete.
Red
Black
Black
Red
Do not turn on the power until the connection is complete.
To connect the speaker cords
• Make sure the both speakers are connected correctly and firmly.
1 Unlock
2 Insert
3 Lock
When connecting the speaker cords, match the polarity of
the speaker terminals: The black cord to (–), the red cord
to (+).
• If the speaker cords are covered with vinyl, remove the
vinyl to expose the tip of the speaker cords by twisting
the vinyl.
• DO NOT connect two or more speakers to
each terminal.
• DO NOT allow the conductor of the speaker
cords to be in touch with the metallic parts of
the System.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and the AC power cord. Also, keep
the antenna away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor
reception.
• AM broadcast cannot be received on this
System.
FM antenna
Extend it to obtain the best reception.
DAB antenna (supplied)
Extend the wire so that you can receive your
desired ensembles.
