1-12 (No.MB053)

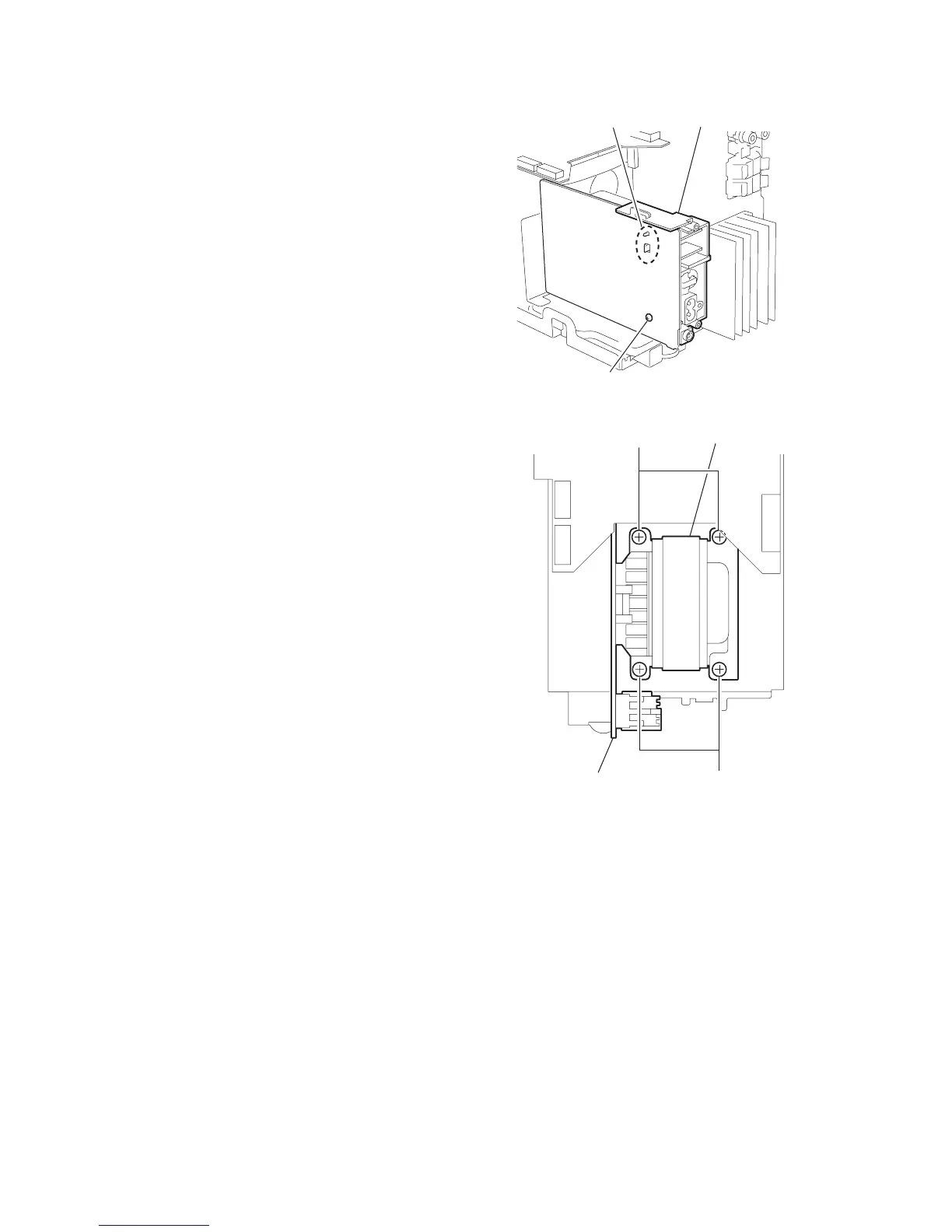

3.1.7 Remove the power transformer and power supply board
(See Fig.14,15)
• Prior to performing the following procedure, remove the rear
panel, the left and right side panels, the CD player assembly,
the power amplifier board and the tuner board.
(1) Remove the screw I attaching the jack holder and release
joint e, and then remove jack holder.
(2) Remove the four screws J attaching the power transformer
and power supply board.
Fig.14
Fig.15
I
Jack holder
e
J
J
Power transformer
Power supply board
To Next Page
