3.1.8 Remove the cassette mechanism assembly

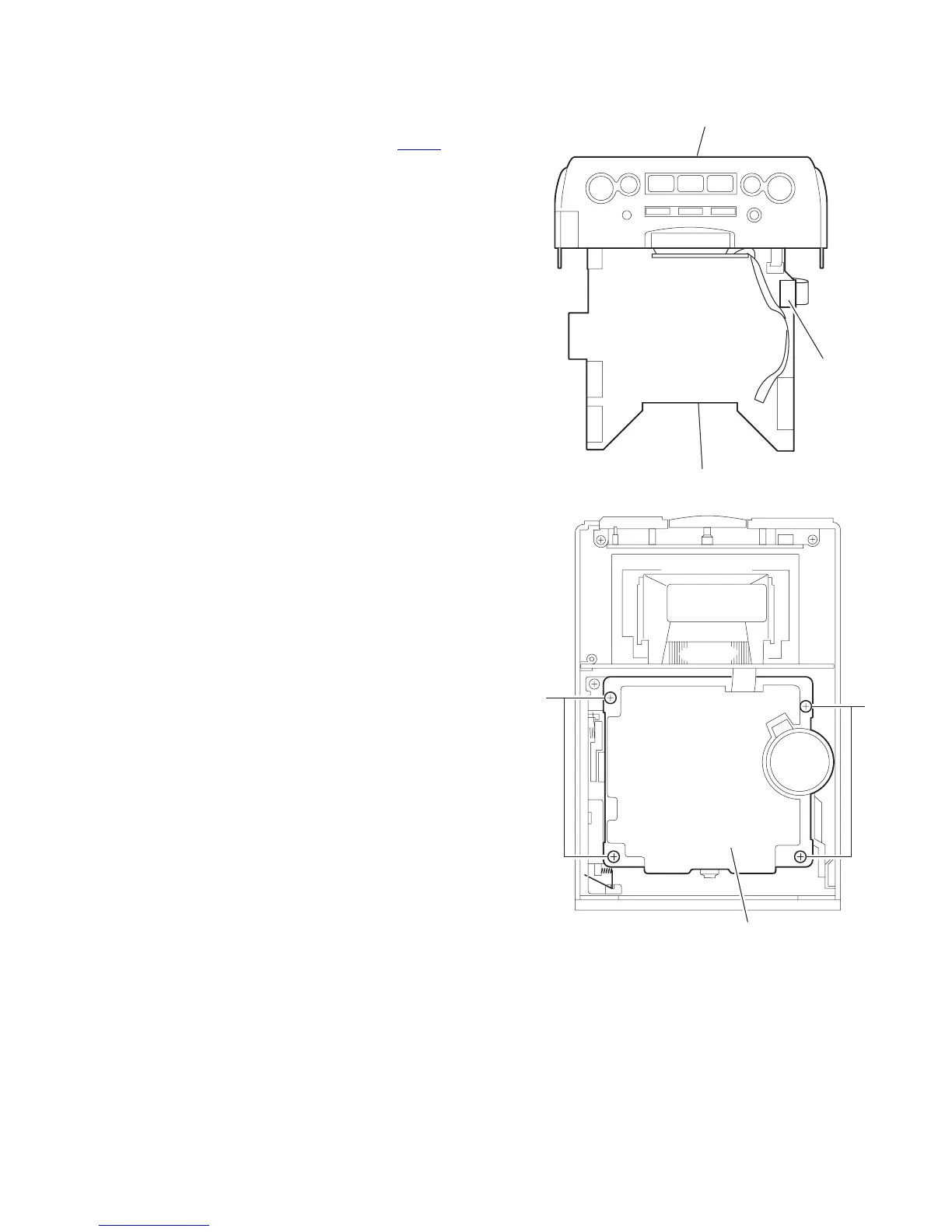

(See Fig.16,17)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Disconnect the card wire from the connector CN713
on the
LCD system CPU board.
(2) Remove the four screws K and L attaching the cassette
mechanism assembly, and remove.
Fig.16
Fig.17
Front panel assembly
LCD system CPU board
CN713
K
L
Cassette mechanism assembly
