SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the front panel assembly
(See Fig.1 ~ 6)
(1) Disconnect the antenna cord on the back of the body.
(2) Remove the two screws A, the two screws B and the two
screws D on the back of the body respectively.
(3) Remove the six screws E on both sides of the body.
(4) Remove the screw F on the bottom of the body.
(5) Move the front panel assembly in the direction of the arrow
and remove. Disconnect connector CN402
, CN801 on the
main board and disconnect the wire from FM-ANT.
CAUTION:
When reassembling the front panel assembly, fit the right and
left joints a to the notch.

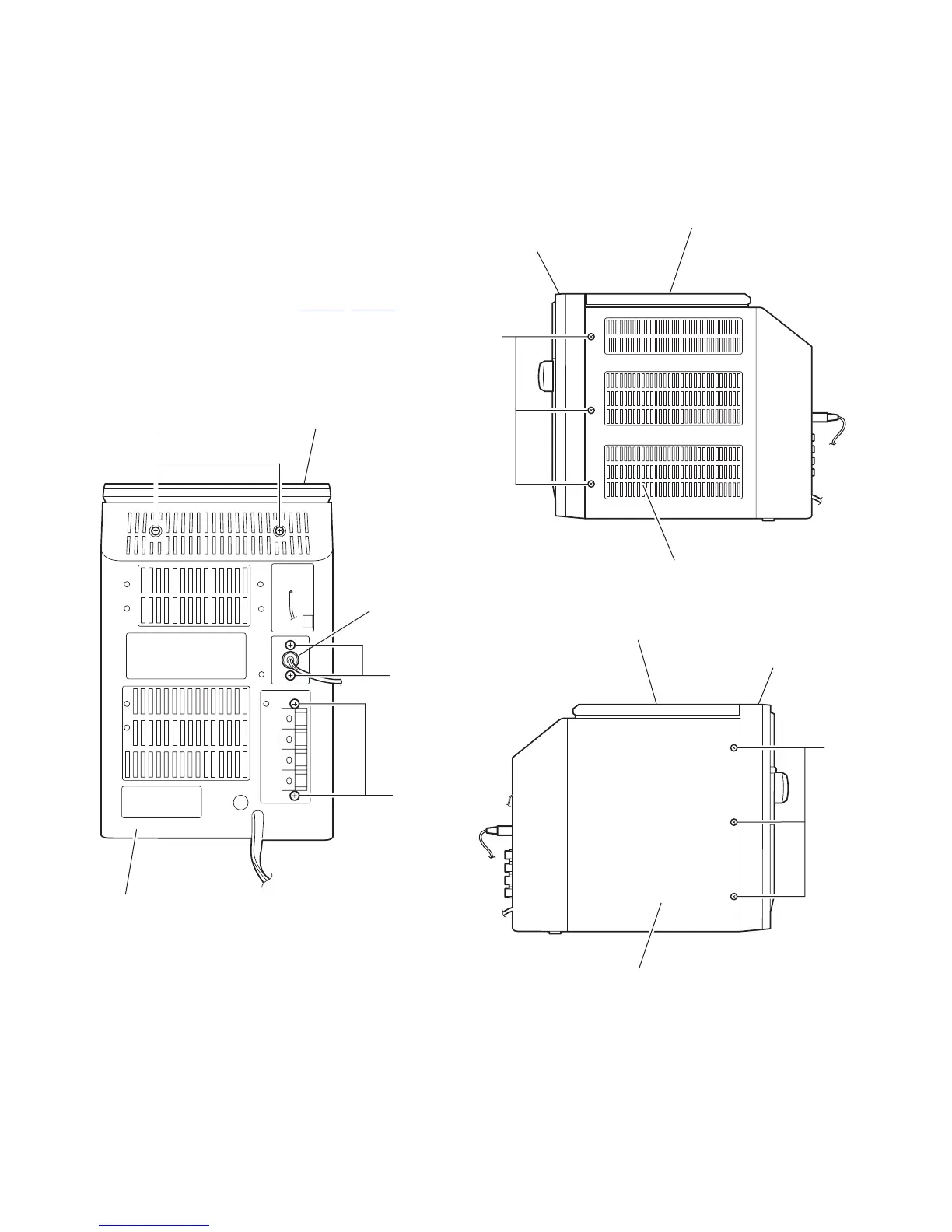

Fig.1
Fig.2
Fig.3
CD mechanism assembly
Antenna cord
Rear cover assembly
B
D
A
Front panelh assembly
CD mechanism assembly
Rear cover assembly
E
Front panelh assembly
CD mechanism assembly
Rear panel assembly
E
