2.1.14 Remiving the control board

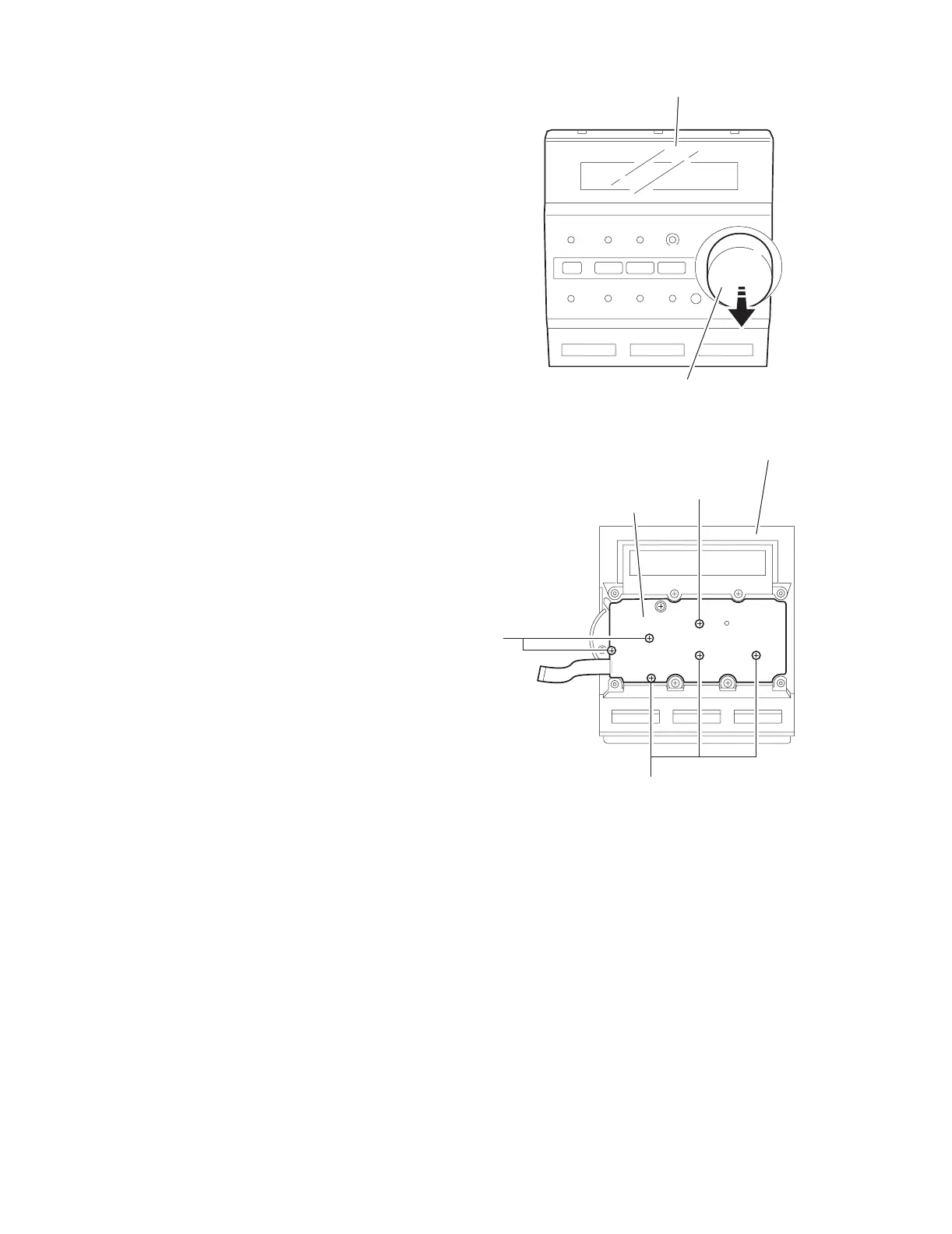

(See Fig.21,22)
• Prior to performing the following procedure, remove the metal
cover, the front panel assembly, the switch board, the LCD
board assembly and the control panel assembly.
(1) Pull out the volume knob.
(2) Remove the six screws P attaching the control board.
Fig.21
Fig.22
Control panel assembly
Volume knob
P
P
P
Control board
Control panel assembly
