3.1.15 Remiving the control board

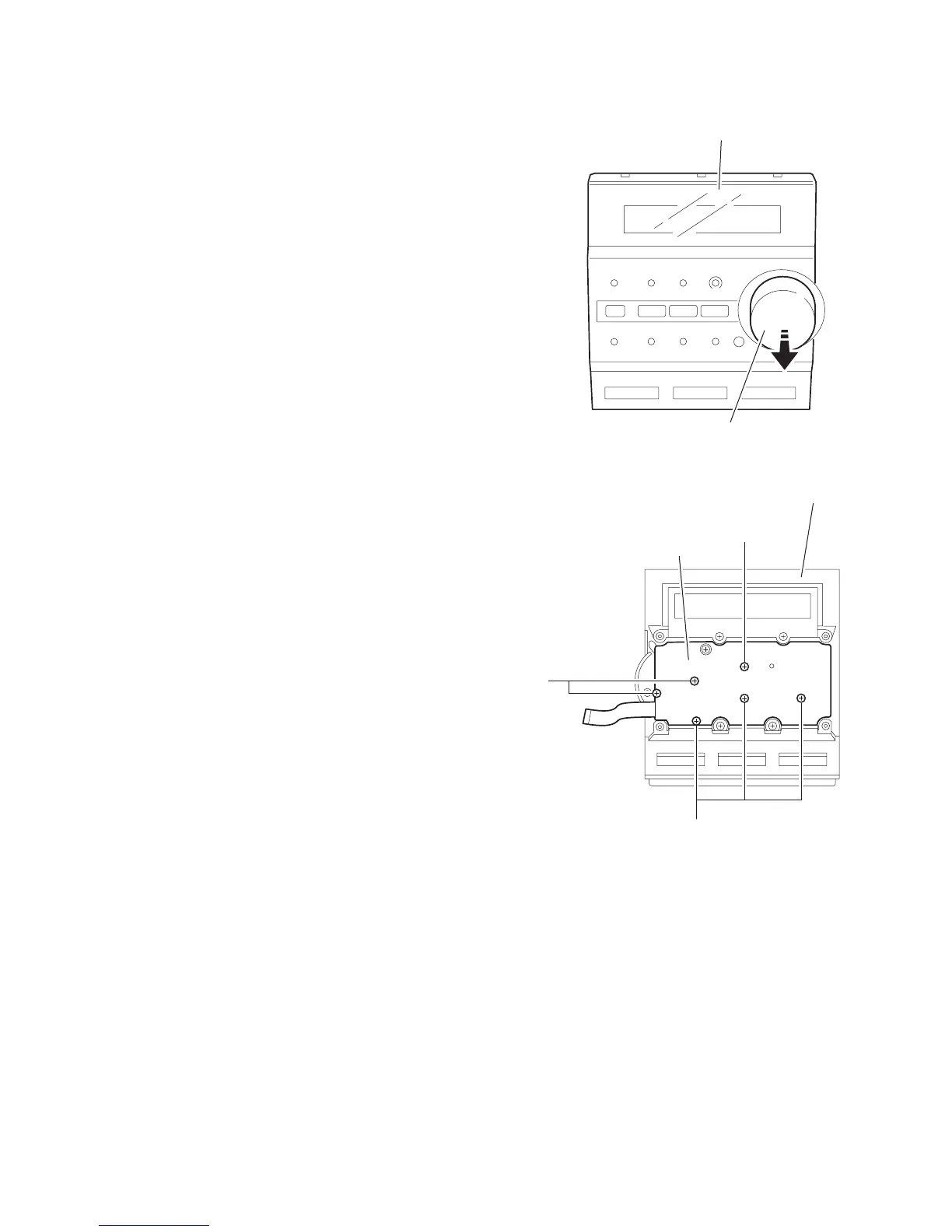

(See Fig.21,22)
• Prior to performing the following procedure, remove the front
panel assembly, the switch board, the LCD board assembly
and the control panel assembly.
(1) Pull out the volume knob.
(2) Remove the six screws A’ attaching the control board.
Fig.21
Fig.22
Control panel assembly
Volume knob
A'
A
'
A'
Control board
Control panel assembly
