3-5

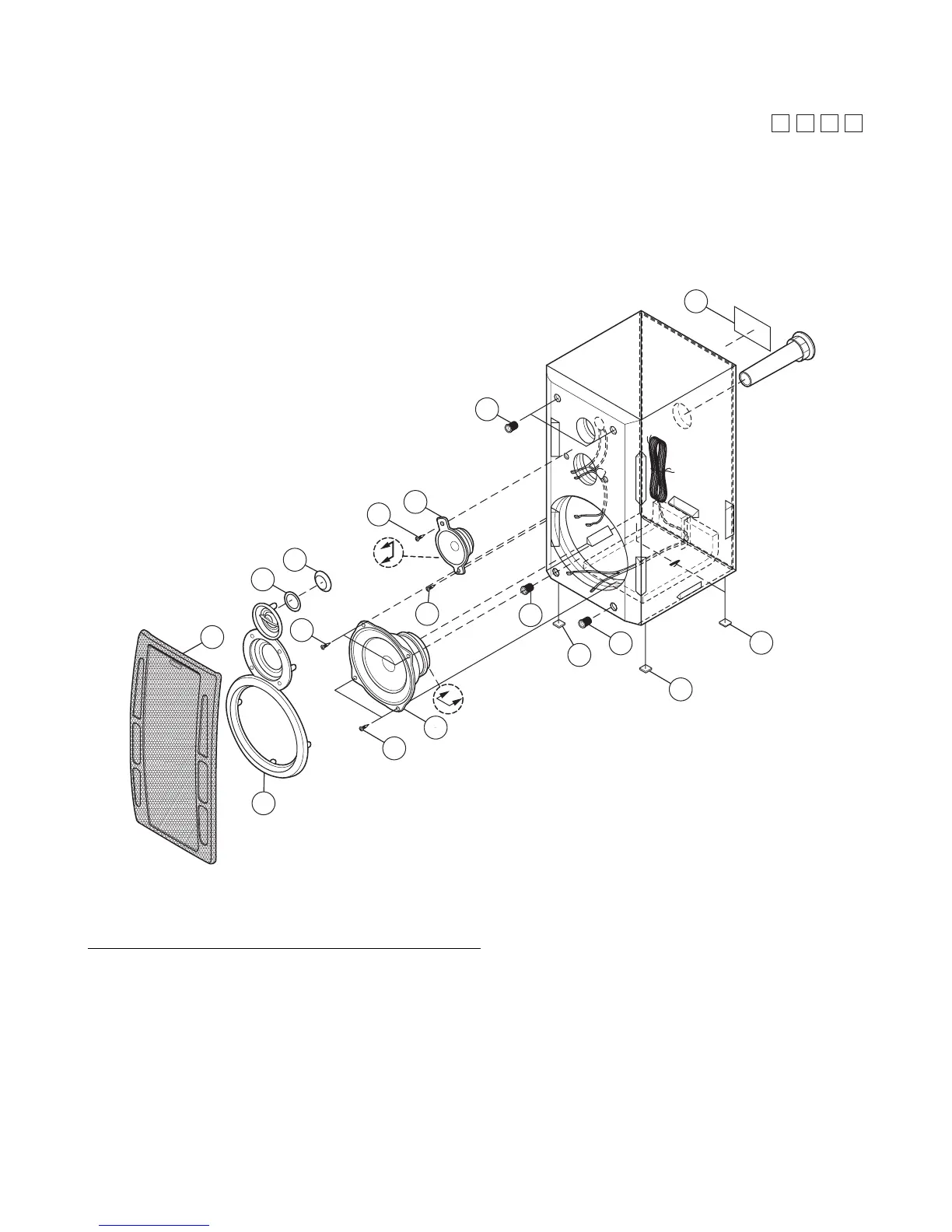

Speaker assembly and parts list
Speaker
Block No. [M][2][M][M]
Block No.
M
M
M
2
10
10
10
7
7
7
9
1
3
5
6
3
3
2
3
4
8
Symbol No.
Part No. Part Name Description Local
1 993060400036 TWEETER ASSY (x2)
2 991061200072 CONE SPEAKER (x2)
3 135604141062 SCREW (x12)
4 151732601147 FRONT PANEL (x2)
5 108650251048 DIAPHRAGM (x2)
6 138730251130 D.SIDE TAPE (x2)
7 147780121071 GROMMET (x8)
8 199732750179 GRILL FRAME ASSY (x2)
9 137640601427 RATING LABEL (x2)
10 147760081069 LEG CUSHION (x8)
