JVC UX-L30UJ Service Manual

1-9
UX-L40R/UX-L30R
Remove the metal cover, the rear cover, the rear
panel, the tuner board and the optical digital board.
Disconnect the card wire from connector CN903 and
CN904 on the main board.
Pull the joint c in the direction of the arrow and
remove the CD-R/RW mechanism assembly
backward while releasing the joint d.
1.
2.
Removing the CD-R/RW mechanism
assembly

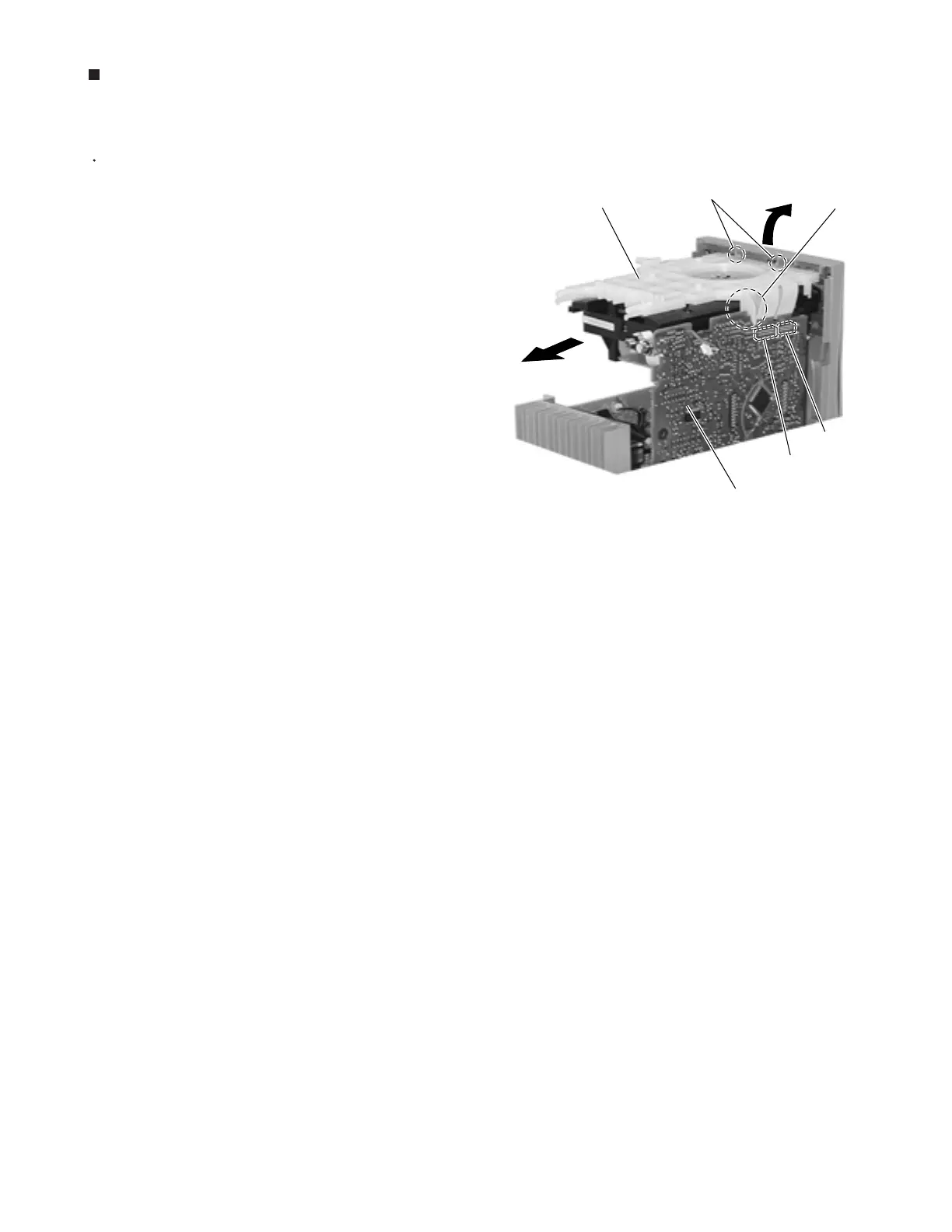

(See Fig.8)
Fig.8
CD-R/RW mechanism
assembly
Main board
CN904
CN903
c
d
